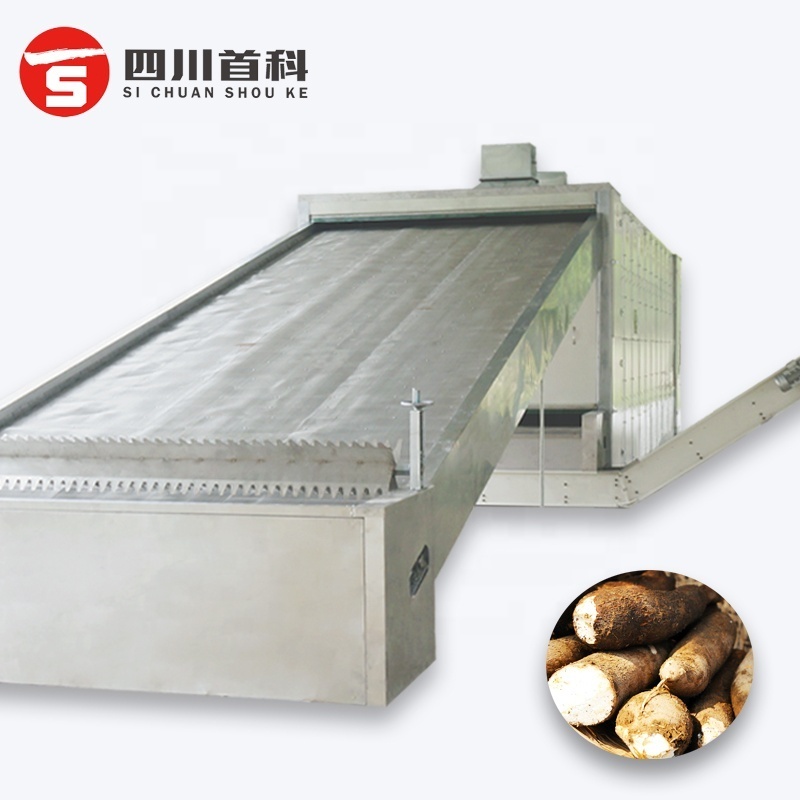

Automatic Dried Cassava Chips Machine 1-50 Tons Capacity Cassava Dryer Drying Machine

Automatic Dried Cassava Chips Machine 1-50 Tons Capacity Cassava Dryer Drying Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $37800

≥5 Sets

US $29800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 380v

Power:: 20kw

Dimension(L*W*H):: Customized

Weight (KG):: 5000

Marketing Type:: New Product 2023

Name:: Cassava Drying Machine

Usage:: Reduce Material's Moisture

Heating source:: Electricity Steam Oil Gas

Package:: Wooden Case

Application material:: Vegetable Herbal Fruit Flower

Advantage:: Easy Operation High Efficiency

Function:: Food Vegetable Fruit Dehydrator

Quick Details

Type:: Mesh Belt Dryer

Place of Origin:: Sichuan, China

Brand Name:: ShouChuang

Voltage:: 380v

Power:: 20kw

Dimension(L*W*H):: Customized

Weight (KG):: 5000

Marketing Type:: New Product 2023

Name:: Cassava Drying Machine

Usage:: Reduce Material's Moisture

Heating source:: Electricity Steam Oil Gas

Package:: Wooden Case

Application material:: Vegetable Herbal Fruit Flower

Advantage:: Easy Operation High Efficiency

Function:: Food Vegetable Fruit Dehydrator

Product Overview

ShouChuang Technology the multi-stage pulse air supply cassava drying system is a national patent technology with independent intellectual property rights ( Patent: 201220352434.4 ) . The cassava dryer is a dynamic-drying multi-layer mesh belt dryer. The cassava drying machine through the air supply system to the air according to the material drying process requirements into the drying room.
At the same time, the material through the automatic laying device, cleaning machine, slicing machine, lifting machine into the cassava drying machinery, and in the drying room along the horizontal direction to do section rotation, do "S" shaped operation, while the hot air vertically through the material, high heat transfer efficiency, so as to achieve the purpose of drying material pieces.

The cassava drying equipment special air supply method is adopted to make the heating area of the material larger and more uniform, and better preserve the color, fragrance and taste of the inherent quality of the material.

Vegetable dryer machine's application

The latest ShouChuang cassava dryer machine for vegetable series use hot air circulation system and waste heat utilization system smooth working, simple operation, good color and non-pollution of dry products. easy installation, low transportation cost.

Notice:

Due to the many kinds of vegetables, and the different attributes of fruit materials, it will lead to different fruit materials in the
drying temperature, process and drying time, if you are interested in our vegetable dryer or have a better idea, welcome to contact us！

Product Paramenters

Model	5HDW4-6	5HDW4-8	5HDW4-10	Other Size
Mesh belt layers	4 layers	4 layers	4 layers	4 layers
Use temperature ( ℃）	30-80	30-80	30-80	30-80
Paving thickness( mm)	30-120	30-120	30-120	30-120
Belt width( mm)	1840/2760	1840/2760	1840/2760	1840/2760
Monitor power(Kw)	1.1	1.1	1.1	1.1
Outlet conveyor power(Kw)	1.1	1.1	1.1	1.1
Total Power(Kw)	18-33	33-44	40.5-49	Customized
Effective drying area(m3 )	39	53	67	Customized
Operating temperature ( ℃）	40-85
Overall Dimension (mm）	1600080003200	1800080003200	2000080003200	Customized
Drying cycle (hours)	1-15h/coutinous drying
control method	PLC cotrol system
Conveyor belt material	SS304 or according to the drying materials to choose
Material Description	The parts in contact with the material are all 304 stainless steel or food grader rubber strips
