Quick Details
-
Machine Weight:
-
20930 KG
-
Hydraulic Cylinder Brand:
-
Other
-
Hydraulic Pump Brand:
-
Other
-
Hydraulic Valve Brand:
-
Other
-
Engine Brand:
-
CAT
-
Power:
-
103kw
-
Product name:
-

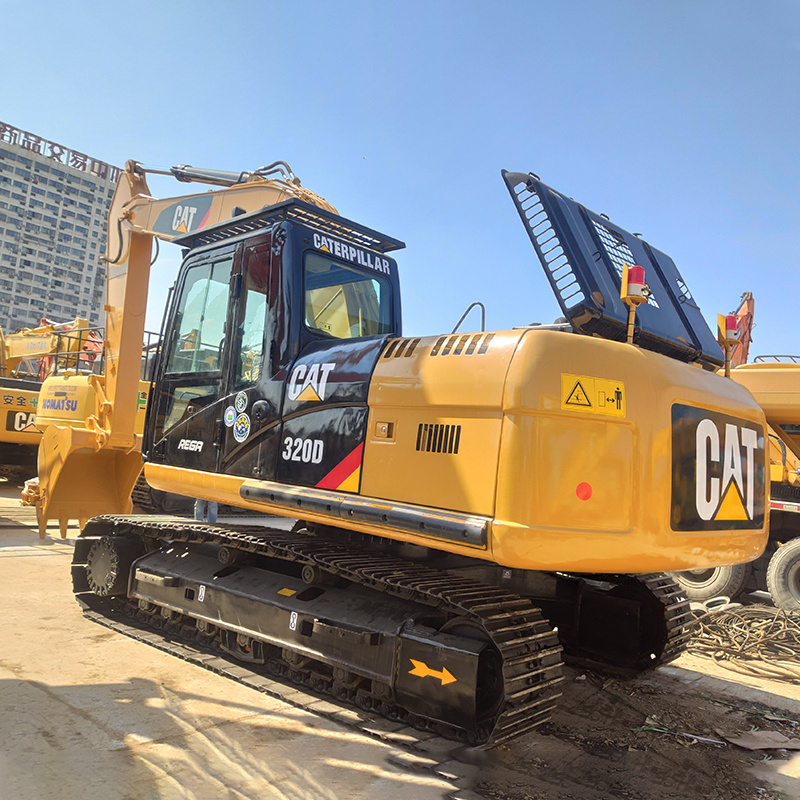

Cat 320D excavator
-
Condition:
-
90%NEW
-
Color:
-
Original Color
-
Engine:
-
Original Engine
-
Tonnage:
-
20 tons
-
Rated power:
-
103/2000 kw/rpm
-
Displacement:
-
6.37L
-
Cylinder diameter x stroke:
-
102 x 130mm
-
Fuel tank:
-
410L
Quick Details
-
Year:
-
2017
-
Showroom Location:
-
Other
-
Bucket capacity:
-
1m³
-
Machine Weight:
-
20930 KG
-
Hydraulic Cylinder Brand:
-
Other
-
Hydraulic Pump Brand:
-
Other
-
Hydraulic Valve Brand:
-
Other
-
Engine Brand:
-
CAT
-
Power:
-
103kw
-
Product name:
-
Cat 320D excavator
-
Condition:
-
90%NEW
-
Color:
-
Original Color
-
Engine:
-
Original Engine
-
Tonnage:
-
20 tons
-
Rated power:
-
103/2000 kw/rpm
-
Displacement:
-
6.37L
-
Cylinder diameter x stroke:
-
102 x 130mm
-
Fuel tank:
-
410L
Product Description
Details Images
Product Paramenters
|
Specification
|
|
Hydraulic system
|
|
||
|
Working weight of the machine (kg)
|
20930
|
Maximum flow of main pump (l/min)
|
205
|
||
|
Bucket capacity (m³)
|
1
|
Working hydraulic oil circuit (Mpa)
|
35
|
||
|
Boom length (mm)
|
5700
|
Walking hydraulic circuit (Mpa)
|
35
|
||
|
Bucket rod length (mm)
|
2900
|
Rotary hydraulic circuit (Mpa)
|
25
|
||
|
The tonnage (ton)
|
20
|
Pilot oil path (MPa)
|
3.9
|
||
|
Climbing ability (%)
|
70/35°
|
Body size
|
|
||
|
Ground specific pressure (Kpa)
|
6
|
Total transportation length (mm)
|
9460
|
||
|
Bucket digging force (kN)
|
140.1
|
Total transport width (mm)
|
2800
|
||
|
Bucket rod excavation force (kN)
|
106.4
|
Total transport height (mm)
|
3050
|
||
|
Scope of operation
|
|
Cab full height (mm)
|
2950
|
||
|
Maximum excavation radius of stop surface (mm)
|
9850
|
Counterweight ground clearance (mm)
|
1020
|
||
|
Maximum excavation depth (mm)
|
6710
|
The track grounding length (mm)
|
3265
|
||
|
Maximum excavation height (mm)
|
9840
|
Track total length (mm)
|
4075
|
||
|
Maximum unloading height (mm)
|
6500
|
Track plate width (mm)
|
600
|
||
|
Maximum vertical digging depth (mm)
|
6180
|
Total track width (mm)
|
2800
|
||
|
Maximum effective excavation depth (mm)
|
6540
|
Track gauge (mm)
|
2200
|
||
|
Dynamic system
|
|
Minimum ground clearance (mm)
|
450
|
||
|
Engine model Carter
|
C6.4ACERT
|
Back end turning radius (mm)
|
2750
|
||
|
Rated power (kw/rpm)
|
103/2000
|
Oil capacity
|
|
||
|
Displacement (L)
|
6.37
|
Fuel tank (L)
|
410
|
||
|
Number of cylinders
|
6
|
Hydraulic oil tank (L)
|
120
|
||
|
Cylinder diameter x stroke (mm)
|
102 x 130
|
Hydraulic System (L)
|
260
|
||
|
Cooling method
|
Water cooling
|
Engine oil change (L)
|
30
|
||
|
|
|
Coolant (L)
|
25
|
||
