Quick Details
-
Gross weight (kgs):
-
310
-
Conveyor Speed(m/s):
-
0.22
-
Conveyor height(mm):
-
645
-
Generate angle:
-
80 degree upward
-
Operation temperature/Humidity:
-
0℃-45℃ / 5%-95%(non-condensing)
-
X-ray Sensor:
-
12bit Deep
-
Cooling / Duty Cycle:
-
Oil Cooling /100%
-
Spatial resolution:
-
Horizontal:dia1.0mm,Vertical: dia1.0mm
-
Penetration:
-
32mm steel
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Zento
-
Unit size (mm):
-
1535(L)*904(W)*1215(H)mm
-
Gross weight (kgs):
-
310
-
Conveyor Speed(m/s):
-
0.22
-
Conveyor height(mm):
-
645
-
Generate angle:
-
80 degree upward
-
Operation temperature/Humidity:
-
0℃-45℃ / 5%-95%(non-condensing)
-
X-ray Sensor:
-
12bit Deep
-
Cooling / Duty Cycle:
-
Oil Cooling /100%
-
Spatial resolution:
-
Horizontal:dia1.0mm,Vertical: dia1.0mm
-
Penetration:
-
32mm steel
Low Conveyor

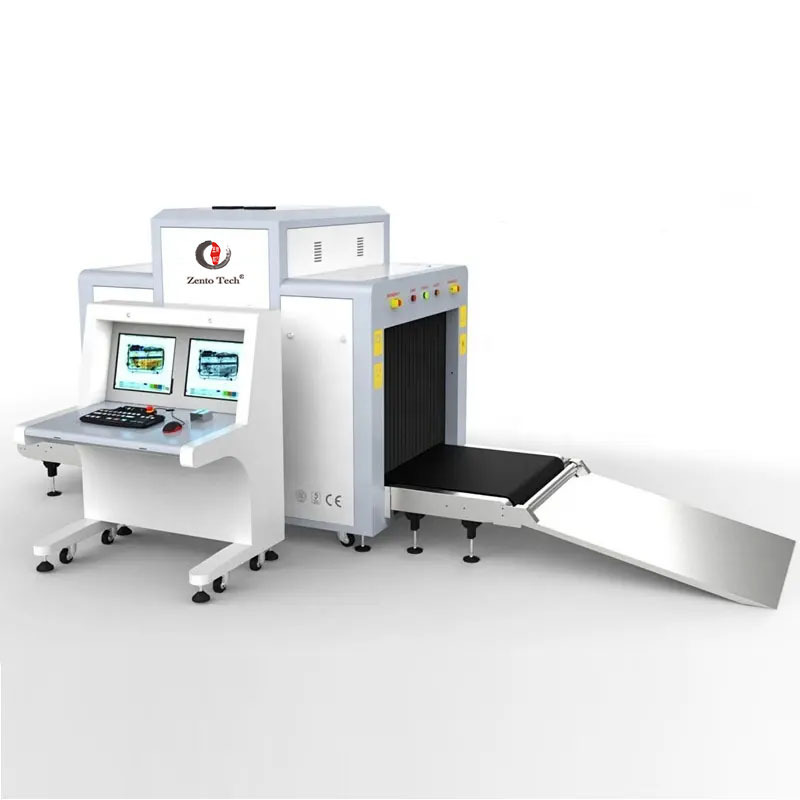

Security Large Cargo X-Ray Baggage Scanner
The X-ray use penetrate inspection, can detect the object metal structure, display where is invisible to the naked eye. Used in the factory testing of security products and business units such as: airport, electronic factories, shoe factories, toy factories, courts, railway stations, and event bag, line security management package.
It can automatically detect the foreign matter (metal, stone, glass, plastic) in food which cannot be seen by naked eye.Bone, etc.) and the internal defects of the product (Void, cracks) device, with the basic function of automatic detection of foreign bodies, can also detect the packaging products left behind and defective products.
Features
* Multi energy
* Operation desk including 1 display
* Automatic built in test and self diagnosis
* Secure access Key
* Threat alert and material classification
* Auto archiving
* Network-Ready
* Energy saving design
* One key turn off
* Indication of the date and time
* baggage counter
* Operation desk including 1 display
* Automatic built in test and self diagnosis
* Secure access Key
* Threat alert and material classification
* Auto archiving
* Network-Ready
* Energy saving design
* One key turn off
* Indication of the date and time
* baggage counter
High Quality Parts
: American SPELLMAN ray source, Japan, HAMMATSU detector, German INTERROLL roller.
Energy-saving design : The machine can automatically sense objects, with luggage on the machine to start running, without luggage,the machine is stationary.
One-button shutdown control: Just turn the key once when shutting down, the device will automatically shut down safely, reducing equipment failure.
Eco-friendly design : The lead curtain has a protective film to prevent guests from touching the lead with their hands.
Dynamic screen switching : The screen can be switched when it is still, and it can be switched freely when it is dynamic.
Alarm method : When the conditions are met, sound and warning light signals are issued.
Mass storage : Pictures are directly stored in the hard disk, the storage quantity is more than 1 million, and can be directly
Energy-saving design : The machine can automatically sense objects, with luggage on the machine to start running, without luggage,the machine is stationary.
One-button shutdown control: Just turn the key once when shutting down, the device will automatically shut down safely, reducing equipment failure.
Eco-friendly design : The lead curtain has a protective film to prevent guests from touching the lead with their hands.
Dynamic screen switching : The screen can be switched when it is still, and it can be switched freely when it is dynamic.
Alarm method : When the conditions are met, sound and warning light signals are issued.
Mass storage : Pictures are directly stored in the hard disk, the storage quantity is more than 1 million, and can be directly
called for viewing.
Image Performance System:
1. Display: High-resolution 19 inch color LCD display
2. Color quality: 24-Bit real colors based on materials
3. Edge enhancement: Object contour edge is more distinct
4. Super image enhancement: Image detail is more distinct
5. High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
6. Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.
7. Magnifier: Partial magnifying function
8. Brightening/dimming: Increase/Decrease brightness of image
9. Image recurrence: Display the previous twenty images and process any one of them
10. Image restoration: Restore image to initial status
11. Image storage: Real-time store any image and process it in operation status
1. Display: High-resolution 19 inch color LCD display
2. Color quality: 24-Bit real colors based on materials
3. Edge enhancement: Object contour edge is more distinct
4. Super image enhancement: Image detail is more distinct
5. High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
6. Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.
7. Magnifier: Partial magnifying function
8. Brightening/dimming: Increase/Decrease brightness of image
9. Image recurrence: Display the previous twenty images and process any one of them
10. Image restoration: Restore image to initial status
11. Image storage: Real-time store any image and process it in operation status
|
Physical Specifications
|
|
|
|
Unit weight (kgs)
|
280
|
|
|
Unit size (mm)
|
1535(L)*904(W)*1215(H)mm
|
|
|
after packed in wooden pallet -
|
|
|
|
Gross weight (kgs)
|
310
|
|
|
Package size
|
#1: 1780*1020*1500mm
|
|
|
General Specifications
|
|
|
|
Tunnel size(mm)
|
626(L)*420(W)
|
|
|
Conveyor Speed(m/s)
|
0.22
|
|
|
Conveyor height(mm)
|
645
|
|
|
Conveyor Max Load(kgs)
|
100
|
|
|
X ray dose per each inspection
|
2.0 μGy
|
|
|
X ray leakage
|
<1.0 μGy / h
|
|
|
Penetration
|
32mm steel
|
|
|
Wire Resolution
|
dia 0.102mm copper wire (AWG38)
|
|
|
Penetration Resolution
|
dia 0.254mm copper wire (AWG30) under three-step aluminum wedge 9.5mm, 15.9mm, 22.2mm
|
|
|
Spatial resolution:
|
Horizontal:dia1.0mm,Vertical: dia1.0mm
|
|
|
Power Consumption
|
max. 1KW
|
|
|
Noise
|
< 58 dB
|
|
|
Film Safety
|
Guarantee ASA/ISO1600 Film
|
|
|
Anode Voltage
|
140kv
|
|
|
Anode power
|
0.4-1.2mA (adjustable)
|
|
|
Generate angle
|
80 degree upward
|
|
|
Generate direct
|
from top to bottom
|
|
|
Cooling / Duty Cycle
|
Oil Cooling /100%
|
|
