Quick Details
-
Weight:
-
customized
-
Material:
-
Carbon Steel Alloy Steel Stainless Steel
-
Advantage:
-
Energy Saving
-
Keywords:
-
Boiler Fin Tube
-
Model Number:
-
Boiler Finned Tube
-
Certificate:
-
ASME EN ISO9001
Quick Details
-
Place of Origin:
-
Jiangsu, China, Zhangjiagang,China
-
Brand Name:
-
HDB Boiler Fin Tube, HD Boiler
-
Dimension(L*W*H):
-
customized
-
Weight:
-
customized
-
Material:
-
Carbon Steel Alloy Steel Stainless Steel
-
Advantage:
-
Energy Saving
-
Keywords:
-
Boiler Fin Tube
-
Model Number:
-
Boiler Finned Tube
-
Certificate:
-
ASME EN ISO9001
Product Description
Product Description

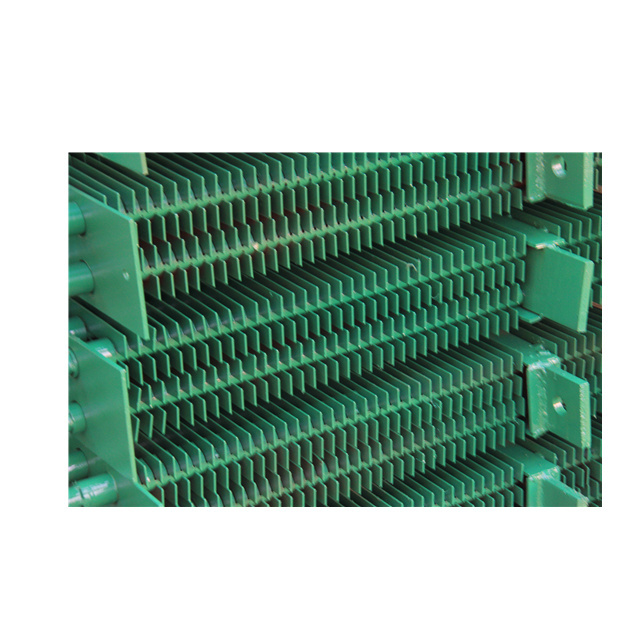

H-type finned tube heat exchanger elements maintain a high capacity for heat transfer, possess superior self-cleaning properties and retain the ability to effect flue gas waste heat recovery in boiler renovations. Convective heat transfer coefficient is proportional to fin pitch, but inversely proportional to fin height and fin width. Integrated heat transfer capacity is related to fin efficiency, convective heat transfer coefficient and finned ratio. Pressure drop increases with the increase of fin height and fin width.
Detail
In order to improve the heat exchange efficiency and extend surface heat transfer, H-type finned tubes have been widely used in boilers and waste heat recovery in recent years. H-type finned tubes are derived largely from rectangle finned tubes. Because of their unique groove structure on the fin surface, H-type finned tubes have excellent anti-wear and anti-fouling performance.
Structure
Our products can be modified according to our customers' needs and the situation.we design and manufacture safe,reliable and efficient H-fin tubes.HD BOILER has also completed stand-alone product quality assurance systems.Production of H-fin tubes are with high heat transfer efficiency, they have flue gas resistance and are designed for a small space.
H-type finned tube heat exchanger elements maintain a high capacity for heat transfer, possess superior self-cleaning properties and retain the ability to effect flue gas waste heat recovery in boiler renovations. Convective heat transfer coefficient is proportional to fin pitch, but inversely proportional to fin height and fin width. Integrated heat transfer capacity is related to fin efficiency, convective heat transfer coefficient and finned ratio. Pressure drop increases with the increase of fin height and fin width.
Detail
In order to improve the heat exchange efficiency and extend surface heat transfer, H-type finned tubes have been widely used in boilers and waste heat recovery in recent years. H-type finned tubes are derived largely from rectangle finned tubes. Because of their unique groove structure on the fin surface, H-type finned tubes have excellent anti-wear and anti-fouling performance.
Structure
Our products can be modified according to our customers' needs and the situation.we design and manufacture safe,reliable and efficient H-fin tubes.HD BOILER has also completed stand-alone product quality assurance systems.Production of H-fin tubes are with high heat transfer efficiency, they have flue gas resistance and are designed for a small space.
|
Item
|
Base Tube O.D(mm)
|
Base Tube Thickness (mm)
|
Fin Height (mm)
|
Fin thickness(mm)
|
Fin Pitch(mm)
|
||||
|
Range
|
25.4 mm ~1600mm
|
2.5 mm ~40 mm
|
0.5 mm ~20.0 mm
|
0.5 mm ~3.0 mm
|
5 mm ~ 25.4 mm
|
||||
|
Material
|
Carbon Steel,Alloy Steel,Stainless Steel
|
|
|
|
|
||||
|
Length
|
Customized
|
|
|
|
|
||||
|
Product
|
H-Fin Tube
|
|
|
|
|||
|
Base Pipe
|
Welded or Seamless
|
|
|
|
|||
|
Material
|
Crbon steel, Aloy steel, Sainless steel, non-ferrous alloys and nickel alloys. |
|
|
|
|||
|
Application
|
H economizer,H evaporator,H superheater,H air heater and etc.
|
|
|
|
|||
FAQ
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Product packaging
For special cargos, such as overlength, overwidth, overheight and overweight cargos, we will choose frame boxes for easy handling.
For regular goods, we prefer ordinary containers
After loading the goods, we will reinforce them in all aspects
