Quick Details
-
Control System Brand:
-
Other
-
Cutting Thickness:
-
0-10mm (depends on the material), 0-10mm (Determined by materials)
-
Control Software:
-
CorelDRAW X4 SP2
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
JIANGPIN
-
Weight (KG):
-
240 KG
-
Products handled:
-
Nonmetal
-

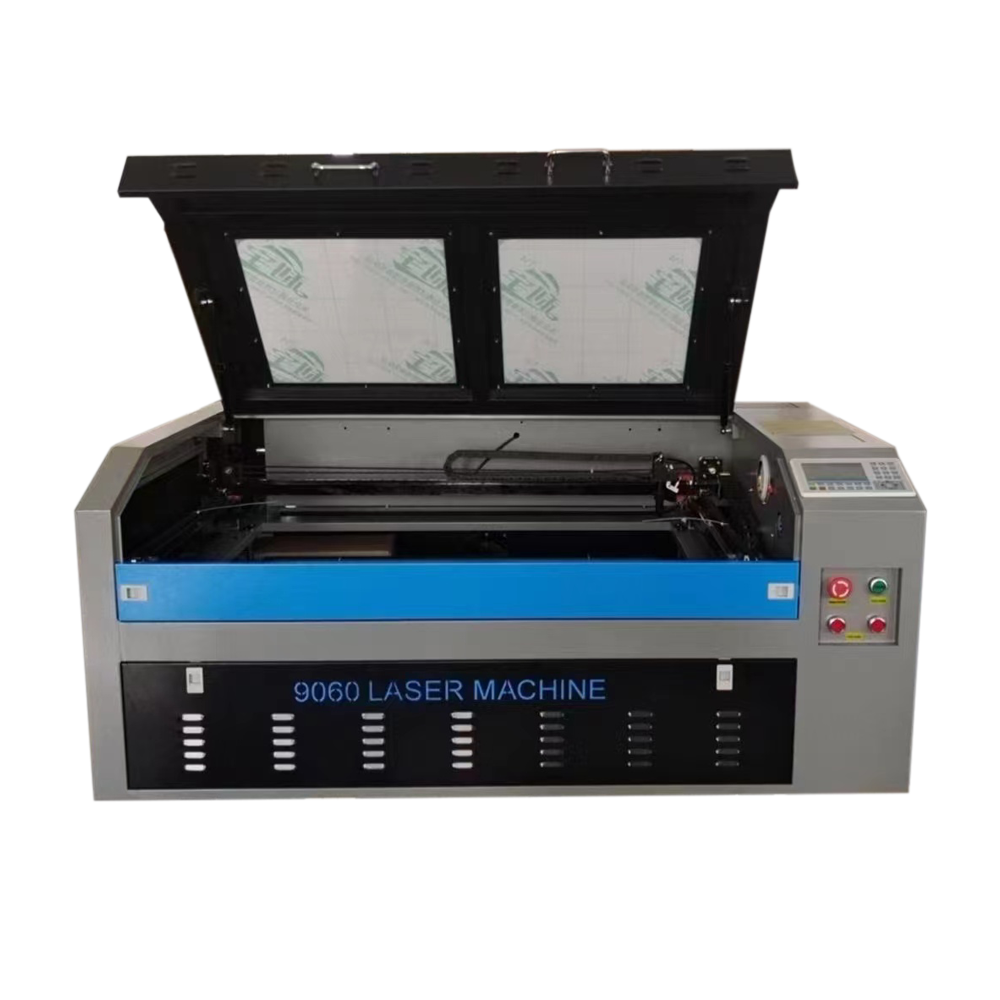

Product Name:
-
Co2 Laser Cutting Machine for Non Metal
-
Keyword:
-
1390 Laser Engraving Cutting Machine
-
Working Area:
-
900*600mm, 1300*900mm, 1600*1000mm
-
Laser Source:
-
Co2 Glass Tube / Laser Generator
-
Type:
-
Water Cooling Co2 Laser Cutting Machines
-
Power:
-
80W/100W/130W/150W
-
Operating Temperature:
-
0-45℃
-
Operating Humidity:
-
5-95%
-
Machine Power:
-
≤1000W
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
0-36000mm/s
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
Other
-
Cutting Thickness:
-
0-10mm (depends on the material), 0-10mm (Determined by materials)
-
Control Software:
-
CorelDRAW X4 SP2
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
JIANGPIN
-
Weight (KG):
-
240 KG
-
Products handled:
-
Nonmetal
-
Product Name:
-
Co2 Laser Cutting Machine for Non Metal
-
Keyword:
-
1390 Laser Engraving Cutting Machine
-
Working Area:
-
900*600mm, 1300*900mm, 1600*1000mm
-
Laser Source:
-
Co2 Glass Tube / Laser Generator
-
Type:
-
Water Cooling Co2 Laser Cutting Machines
-
Power:
-
80W/100W/130W/150W
-
Operating Temperature:
-
0-45℃
-
Operating Humidity:
-
5-95%
-
Machine Power:
-
≤1000W
Recommend Products
Products Description
Product Parameters
|
Product Name
|
Nonmetal Laser Cutting Engraving Machine
|
|
Laser Tube
|
C02 Laser Tube (RECI/EFR/CDWG/YONGLI)
|
|
Laser Power
|
80W/100W/130W/150W
|
|
Cutting Thickness
|
0-10mm (Depends on the material)
|
|
Engraving Speed
|
0-27000 (mm/min)
|
|
Cutting Speed
|
0-3600 (mm/min)
|
|
Minimum Formed Characters
|
Letter 1x1mm
|
|
Engraving Machine Resolution
|
1000dpi
|
|
Motherboard
|
M2, Gancheng, Ruida
|
|
Data Connection
|
USB interface connection directly connected to the computer
|
|
Application Software
|
CorelDRAW X4 SP2
|
|
Cooling Method
|
Water cooling with water protection system
|
|
Machine Weight
|
120KG/210KG/350KG
|
Features And Function
1. Full-page blanking, no need for multiple cutting, saving processing time and avoiding material waste.
1. Full-page blanking, no need for multiple cutting, saving processing time and avoiding material waste.
2. The main components are all imported and joint venture first-line brands, which effectively guarantee the quality level of the equipment.
3. The work piece does not need to be clamped, and it is formed once, without subsequent processing, saving tooling, man-hours, and manpower.
4. Imported Taiwan four-row steel ball linear guide rail ensures mechanical precision and strength.
5. The operating speed and laser energy can be adjusted in real time, which greatly facilitates the operation of customers.
6. High-power laser, super light speed, powerful cutting, fast speed, high precision, and good cutting surface.
7. New and unique structural design, sufficient rigidity, stable operation and low noise.
8. With the automatic compensation function of cutting energy, the cutting effect is greatly improved.
Applicable Material
All kinds of cloth, leather, plush, pu, genuine leather, plexiglass, plastic, PVC, paper, wood and bamboo, rubber, resin, ceramics, granite and other non-metals.
Industry Usage
*Car seat cushion cutting, snow boots and slippers cutting, pillow hand warmer cutting, clothing a
pplique
embroidery, woven labels, trademark cutting, clothing accessories engraving, punching, trimming;
*Leather punching, lofting, cutting;
*Cutting of plexiglass, plastic, PVC, paper, wood and bamboo;
*Wood and bamboo, ceramics, granite, shadow carving industry engraving.
