Quick Details
-
Voltage:
-
100-440V
-
Dimension(L*W*H):
-
1800x1250x1670mm
-
Weight:
-
800KG
-
Core Components:
-
Air End
-
Product name:
-

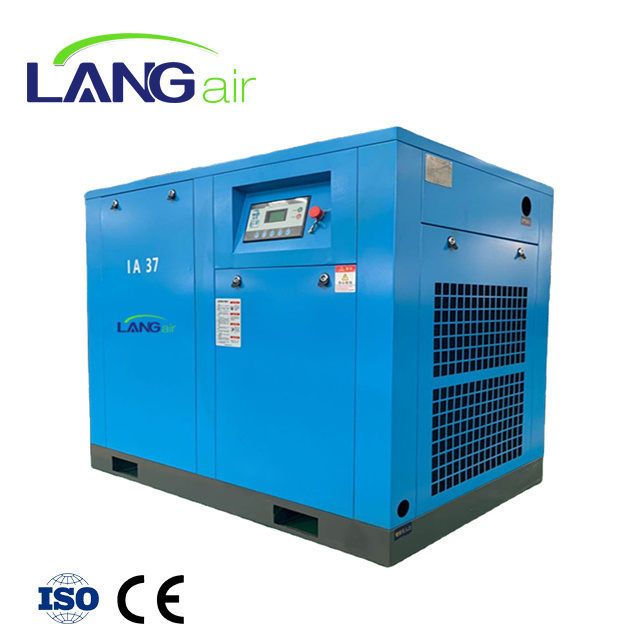

Variable Frequency Screw Air Compressor
-
Application:
-
Garments/Customized
-
Color:
-
Blue
-
Power:
-
45KW
-
Pressure:
-
0.7-1.25Mpa
-
Tank:
-
25L-120L
-
Noise:
-
72dB(A)
-
Frequency:
-
50-60HZ
-
Cooling method:
-
Air Cooling/Water Cooling
-
After Warranty Service:
-
Video technical support
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Langair
-
Model Number:
-
LV-45GA/W
-
Voltage:
-
100-440V
-
Dimension(L*W*H):
-
1800x1250x1670mm
-
Weight:
-
800KG
-
Core Components:
-
Air End
-
Product name:
-
Variable Frequency Screw Air Compressor
-
Application:
-
Garments/Customized
-
Color:
-
Blue
-
Power:
-
45KW
-
Pressure:
-
0.7-1.25Mpa
-
Tank:
-
25L-120L
-
Noise:
-
72dB(A)
-
Frequency:
-
50-60HZ
-
Cooling method:
-
Air Cooling/Water Cooling
-
After Warranty Service:
-
Video technical support
Adventage:
-
High Reliability:
Less compressor parts, without wearing parts, so it is reliable, long life, overhaul interval is up to 40 to 80 thousand hours.
-
Easy Operation and Maintenance:
A high degree of automation, the operator does not have to go through a long period of professional training, can achieve unattended operation.
-
The Power Balance is Good:
There is no unbalanced inertia force, can smoothly high-speed operation, can achieve no basic operation, especially suitable for portable compressors, small size, light weight, small footprint.
-
Strong Adaptability:
With a mandatory gas transmission characteristics, the volume flow is almost free from the impact of exhaust pressure, in a wide range of speed to maintain high efficiency.
1.THE USA LANGAIR Air End
Advanced LANGAIR air end with larger air delivery and stable running conditions.Germany Aerzen and GHH for choose.
2.High Efficiency Motor
High efficiency totally enclosed fan cooled motor with protection class IP54/IP55 and insulation class F.
Standard LANFAIR motor, the same motor supplier of Atlas Copco and Ingersoll-rand in China. ABB/Siemens motor for choose.
3. Ultra-quiet Fan Design
Centrifugual fan:Low noise, smooth operation, less maintenance , easy repair, firm and durable, good ventilation effect.
Box Structure:Fully enclosed mute box, with affixed to a special flat sound-absorbing sponge the inside of the box. Better sound isolation tan conventional types. Compared to similar models, the noise is lower 3-5bdB(A).
4.Safety Belt Guard
With belt guard to avoid accidental touch during compressor running.
5.Shock Absorbers
Motor-grounded shock absorbers:Reduce the amplitude, thereby reducing the equipment damage caused by the resonance.
6.Seamless Steel Pipe
Whole seamless steel pipeline system, reduce the oil leakage. With reasonable layout to save space and reduce pressure loss.
7.CE Oil-gas Tank
Use American technology, cyclone and setting separation, to ensure that the oil content is less then 3ppm.
CE Oil-gas tank & ASME oil gas tank stock available, to save production cost and delivery, to save production cast and delivery time for entering European
8.Dust Screen
Stop most of the dust, particles, moisture, and etc for more clean inlet air, to enlarge service life of air end, air filter and oil filter.
| Model | Working Pressure | Air Delivery | Motor Power | Type of Driving | Type of Cooling | Dimension(mm) | Weight | Output pipe | ||||
| psig | bar | cfm | m3/min | kw/hp | L | W | H | (kg) | Diameter | |||
| LA-15GA | 100 | 7 | 84.7 | 2.4 | 15/20 | Direct driven |
Air Cooling/
Water Cooling |
1150 | 750 | 1180 | 460 | 1" |
| 116 | 8 | 77.7 | 2.2 | |||||||||
| 145 | 10 | 74.2 | 2.1 | |||||||||
| 181 | 12.5 | 63.6 | 1.8 | |||||||||
| LA-18GA | 100 | 7 | 109.5 | 3.1 | 18.5/25 | 1200 | 880 | 1450 | 620 | 1" | ||
| 116 | 8 | 102.4 | 2.9 | |||||||||
| 145 | 10 | 95.3 | 2.7 | |||||||||
| 181 | 12.5 | 81.2 | 2.3 | |||||||||
| LA-22GA | 100 | 7 | 134.2 | 3.8 | 22/30 | 1200 | 880 | 1450 | 640 | 1" | ||
| 116 | 8 | 127.1 | 3.6 | |||||||||
| 145 | 10 | 113 | 3.2 | |||||||||
| 181 | 12.5 | 88.3 | 2.5 | |||||||||
| LA-30GA | 100 | 7 | 187.1 | 5.3 | 30/40 | 1250 | 1000 | 1360 | 900 | 11/4" | ||
| 116 | 8 | 176.6 | 5 | |||||||||
| 145 | 10 | 151.8 | 4.3 | |||||||||
| 181 | 12.5 | 127.1 | 3.6 | |||||||||
| LA-37GA | 100 | 7 | 233 | 6.6 | 37/50 | 1350 | 1000 | 1640 | 1060 | 11/4" | ||
| 116 | 8 | 218.9 | 6.2 | |||||||||
| 145 | 10 | 201.3 | 5.7 | |||||||||
| 181 | 12.5 | 162.4 | 4.6 | |||||||||
| LA-45GA/W | 100 | 7 | 282.5 | 8 | 45/60 | 1300 | 1000 | 1470 | 1150 | 11/2" | ||
| 116 | 8 | 271.9 | 7.7 | |||||||||
| 145 | 10 | 243.6 | 6.9 | |||||||||
| 181 | 12.5 | 211.9 | 6 | |||||||||
| LA-55GA | 100 | 7 | 370.8 | 10.5 | 55/75 | 1950 | 1320 | 1570 | 1750 | 2" | ||
| 116 | 8 | 346 | 9.8 | |||||||||
| 145 | 10 | 307.2 | 8.7 | |||||||||
| 181 | 12.5 | 257.8 | 7.3 | |||||||||
| LA-75GA | 100 | 7 | 480.2 | 13.6 | 75/100 | 1950 | 1320 | 1570 | 1840 | 2" | ||
| 116 | 8 | 459 | 13 | |||||||||
| 145 | 10 | 399 | 11.3 | |||||||||
| 181 | 12.5 | 356.6 | 10.1 | |||||||||
| LA-90GA | 100 | 7 | 572 | 16.2 | 90/120 | 2100 | 1320 | 1700 | 2030 | 2" | ||
| 116 | 8 | 543.8 | 15.4 | |||||||||
| 145 | 10 | 466.1 | 13.2 | |||||||||
| 181 | 12.5 | 395.5 | 11.2 | |||||||||
| LA-110GA | 100 | 7 | 734.4 | 20.8 | 110/150 | 2545 | 1450 | 1900 | 2920 | DN65 | ||
| 116 | 8 | 688.5 | 19.5 | |||||||||
| 145 | 10 | 582.6 | 16.5 | |||||||||
| 181 | 13 | 483.7 | 13.7 | |||||||||
| LA-132GA | 100 | 7 | 847.4 | 24 | 132/175 | 2545 | 1450 | 1900 | 3200 | DN65 | ||
| 116 | 8 | 812.1 | 23 | |||||||||
| 145 | 10 | 706.2 | 20 | |||||||||
| 181 | 13 | 547.3 | 15.5 | |||||||||
| LA-160GA | 100 | 7 | 981.6 | 27.8 | 160/200 | 2790 | 1550 | 2000 | 3600 | DN65 | ||
| 116 | 8 | 918.1 | 26 | |||||||||
| 145 | 10 | 829.8 | 23.5 | |||||||||
| 181 | 13 | 688.5 | 19.5 | |||||||||
| Motor Efficiency Class: Ultraefficient/IE3/IE2 as per your required | ||||||||||||
| Motor Protection Class: IP23/IP54/IP55 or as per your required | ||||||||||||
| Certification: CE/ISO9001/TUV/UL/SGS/ASME | ||||||||||||
| Voltage: 380V/3PH/50HZ/60HZ, 220V/3PH/50HZ/60HZ, 400V/3PH/50HZ/60HZ, 440V/3PH/50HZ/60HZ, 415V/3PH/50HZ/60HZ, 230V/3PH/50HZ/60HZ, dual voltage is also ok | ||||||||||||
Product Application:
Our products are widely used in various industries such as oil field, machinery, chemical, electric, power, hospital and environment protection.They have been sold to all around the world. Our products’ high quality and good sales service make us gain good comments from all customers,and they are also good in colleague's class oral traditions.
