Description

Model

Quantity

1

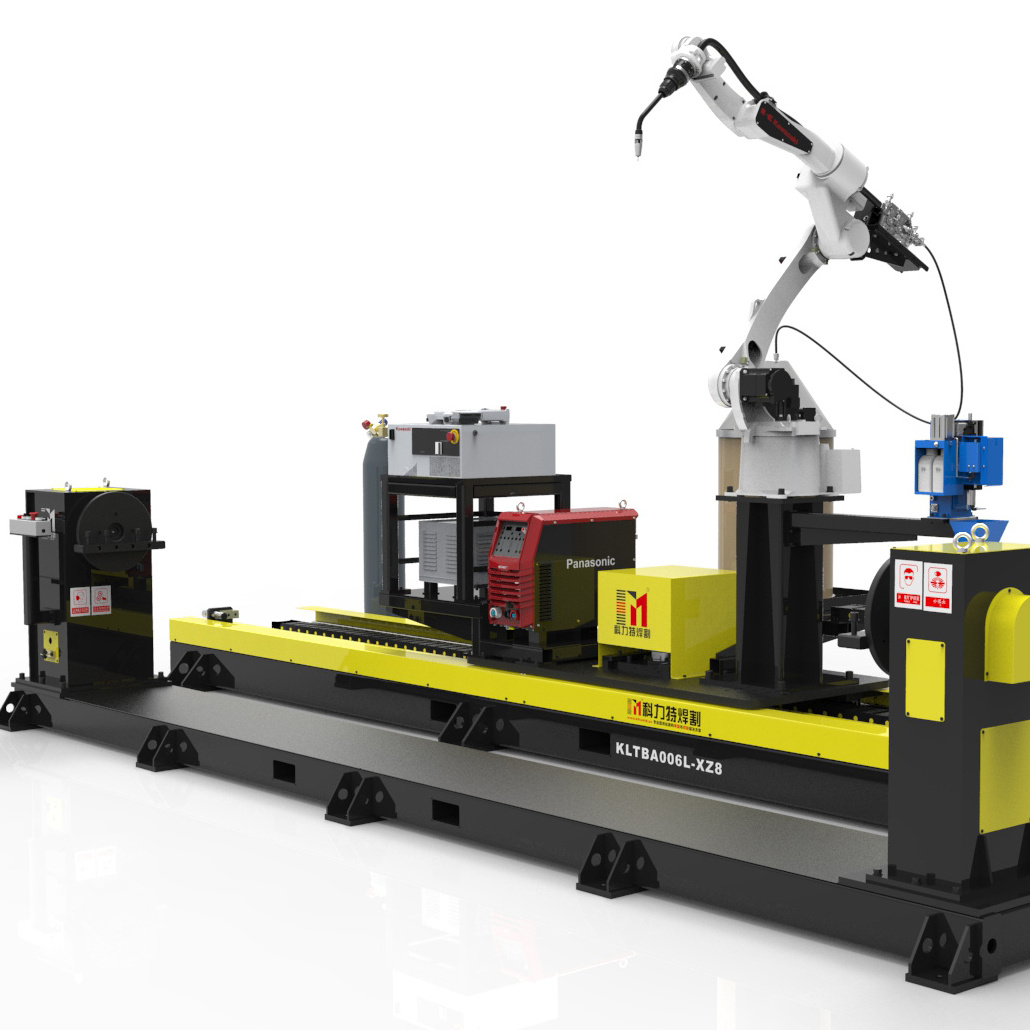

6 Axis Welding Robot

Model : BA006L

R=2036mm , Load=6kg

1set

Teach pendant

Color LCD with touch-panel;

Emergency Stop SW, Teach Lock SW and Enable SW;

Cable Line: Standard configuration(10m)

Controller

Model:E01;

Input Power: AC200-AC220V±10% , 50/60Hz , 3 phases

Controlled axes: Std. 7 axes (Max 9 axes);

Memory capacity: 8MB;

I/O signals: GPIO board (Input 32/Output 32);

Dimensions: W550×D580×H278mm,40Kg

Transformer

AC 3*380V is converted to AC 3*220V

2

External axis servo motor

Add 7 Axis 2 KW (For walking track)

1 set

Add 8 Axis 1 KW And servo board (Flip positioner)

1 set

3

Robot extension cable

Robot extension cable (15m); And extension of external axis servo motor cable

1 set

4

Welding Power

Model: Panasonic YD-500GL5

Load rate: 60% ;Pulse MIG/ Pulse MAG/CO2

Contain: Wire feeder , Control cable

1set

Wire Feeder

Panasonic 6-axis robot dedicated wire feeder; Panasonic extension cable (5m)

5

welding torch

KLT-W500 ;

special welding gun for Carbon steel, stainless steel welding; Water-cooled welding torch

1set

6

Cooling water tank

Model:WL-20L

1set

7

Welding gun clearing station

Clean up the torch, fuel injection, cut the wire

( 3 in 1 ) Chinese brand

1set

8

Wire feeding accessories

Wire feeding tray bracket and wire feeding tube

1set

9

Peripheral buttons

one external button box and communication cable 15m;

1set

10

Control cabinet bracket

Made by KELITEWELD

1set

11

Barreled welding wire bracket

Made by KELITEWELD

1set

12

Walking track

Effective length 3500mm;

Made by KELITEWELD

1set

13

Servo flip positioner

KLTLZW-500

Load: 500kg, Effective length 4500mm;

Made by KELITEWELD

1set

14

Electrical cable

Power cord, welding power ground cord, external conversion box, trachea, etc.

1 set

15

Conductive tip

Φ=1.0mm/Φ=1.2mm, 1 row = 10 pieces

10 rows

16

Welding torch cover

500A welding torch ;1 row = 5 pieces

10rows

17

Port fees

FCL 20GP Container port costs

1 set
