Quick Details
-
Tensile Strength:
-
>12MPa
-
Name:
-
Heat Shrink Tubing with Glue
-
Standard color:
-
Black/Red/Blue/Yellow/Green
-
Wire Size:
-
22-18AWG/ 16-14AWG/ 12-10AWG
-
Shrink ratio:
-
3:1/4:1
-
Operating range:
-
-55℃--+125℃
-
Flammability:
-
VW-1
-
Certificate:
-
RoHS SGS UL ISO9001
-
Others:
-
Brand/Logo can be printed on tube
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Hampool
-
Model Number:
-
HP-DWT
-
Tensile Strength:
-
>12MPa
-
Name:
-
Heat Shrink Tubing with Glue
-
Standard color:
-
Black/Red/Blue/Yellow/Green
-
Wire Size:
-
22-18AWG/ 16-14AWG/ 12-10AWG
-
Shrink ratio:
-
3:1/4:1
-
Operating range:
-
-55℃--+125℃
-
Flammability:
-
VW-1
-
Certificate:
-
RoHS SGS UL ISO9001
-
Others:
-
Brand/Logo can be printed on tube

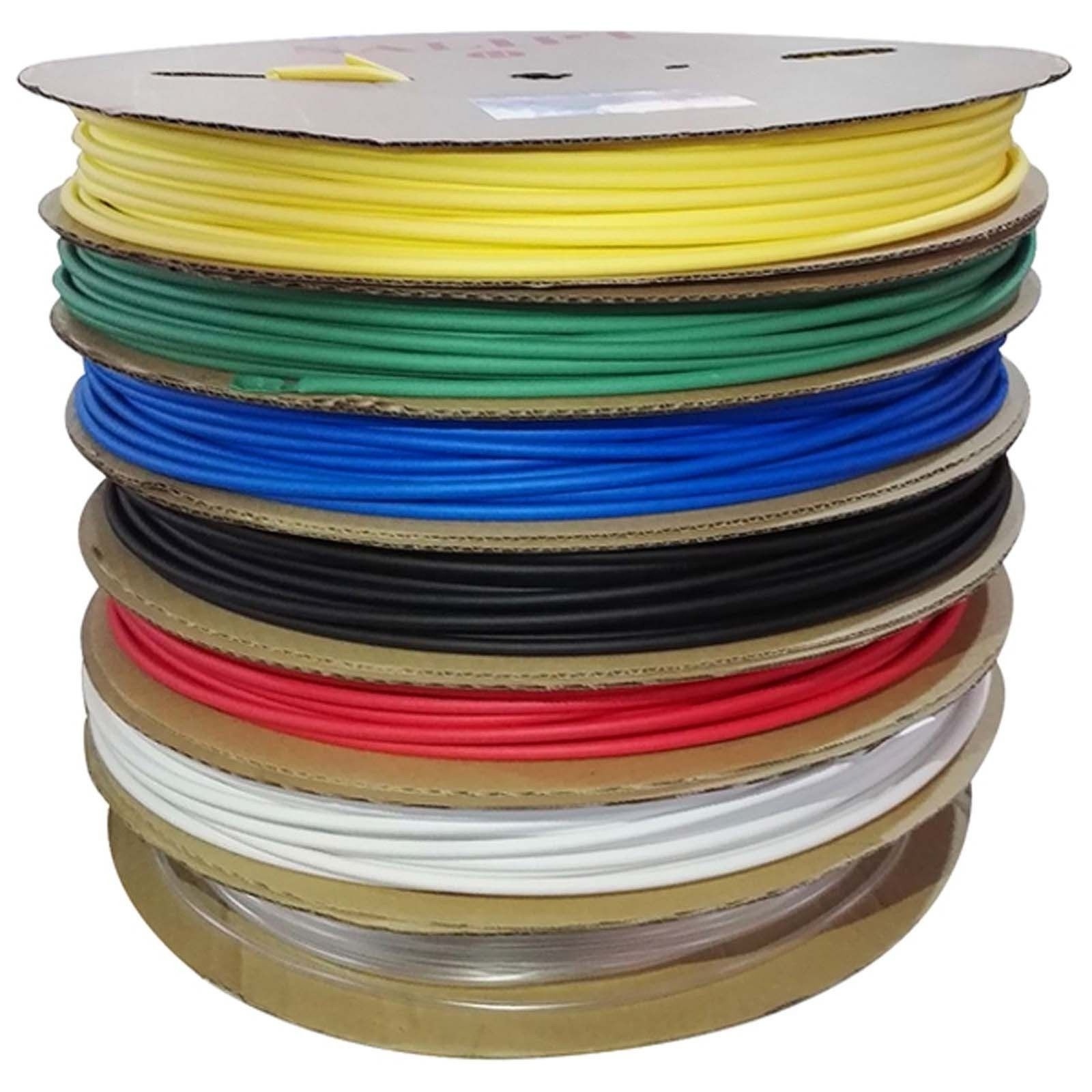

Product Exhibition
Technical Data
|
Property
|
Specification Requirement
|
Test Method
|
Typical Value
|
|
Tensile strength (Room temp.)
|
Min. 10.4Mpa
|
UL224
|
12Mpa
|
|
Elongation at break (Room temp.)
|
Min. 200%
|
UL224
|
400%
|
|
Tensile strength after aging (158℃ 168hrs)
|
Min. 7.3Mpa
|
UL224
|
10.4Mpa
|
|
Elongation after aging (158℃ 168hrs)
|
Min. 100%
|
UL224
|
300%
|
|
Voltage withstand (Un-aged)
|
Withstand 2.5kV for 1 minute and breakdown
|
UL224
|
Pass
|
|
Voltage withstand (Aged)
|
Withstand at least half of un-aged breakdown
voltage for 1 minute and breakdown
|
UL224
|
Pass
|
|
Corrosion (158℃ 168hrs)
|
No corrosion
|
UL224
|
No sign of deg.
|
|
Longitudinal shrinkage
|
≤10%
|
UL224
|
≤5%
|
|
Low-temperature flexibility (-55℃ 4hrs)
|
No cracking
|
UL224
|
Pass
|
