- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
MAYJOY
-
Model Number:
-
LV-205A
-
Weight:
-
500kg
-
Dimension(L*W*H):
-
2150*1450*1550mm
-
Certification:
-
CE ISO
-
Name:
-
adhesive bopp tape slitting machine
-
Max unwinding diameter:
-
800mm
-
Max rewinding diameter:
-
150mm
-
Min slitting width:
-
12mm
-
Paper core diameter:
-
76.2mm
-
Max speed of machine:
-
200m/min
-
Air pressure:
-
0.4-0.6Mpa
Quick Details
-
Voltage:
-
380V
-
Power:
-
4KW
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
MAYJOY
-
Model Number:
-
LV-205A
-
Weight:
-
500kg
-
Dimension(L*W*H):
-
2150*1450*1550mm
-
Certification:
-
CE ISO
-
Name:
-
adhesive bopp tape slitting machine
-
Max unwinding diameter:
-
800mm
-
Max rewinding diameter:
-
150mm
-
Min slitting width:
-
12mm
-
Paper core diameter:
-
76.2mm
-
Max speed of machine:
-
200m/min
-
Air pressure:
-
0.4-0.6Mpa

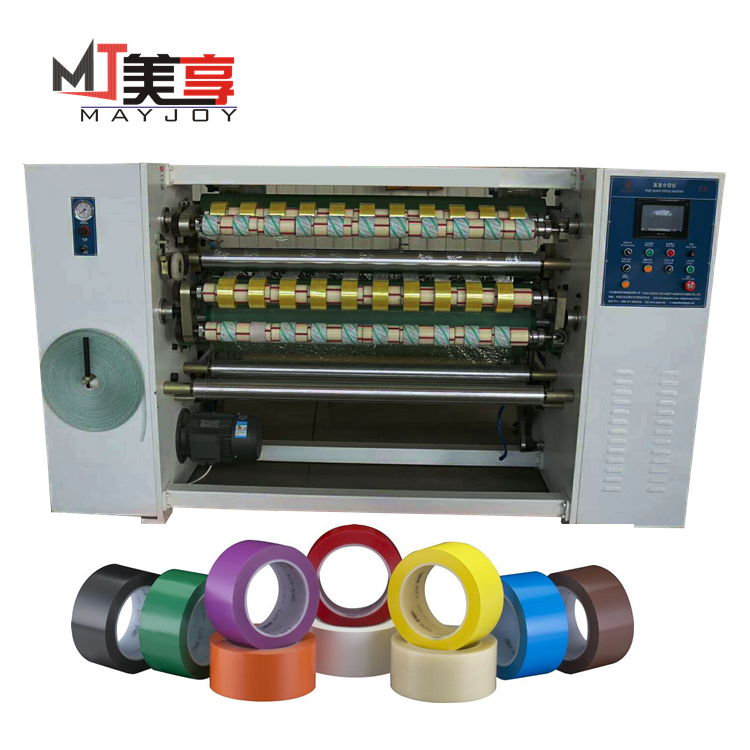

BOPP Tape Slitting Rewinding Machine
Bopp tape slitting machine whole set including:
LV-205A bopp tape slitting machine (1300mm)
1300 paper core loading and unloading machine
Auto paper core cutting machine
Mini rewinding machine
BOPP Tape Slitting Rewinding Machine
High speed good quality adhesive bopp tape slitting machine
Contact:naruto
Wechat:15836812473
Whatsapp: +86 15836812473A
Feature:
To control each part through operation panel;
Much bigger diameter of Mechanical driving shaft will make machine run more stable;
Human-computer interface apply PLC control,input and display by LED touch screen,easily and simply to operate;
Roller type automatic shift cycloid collecting wasted edge device will reduce stop machine times;
Unwinding part has automatic loading jumbo roll device;
Unwinding part has magnetic tension control device;
Unwinding shaft apply pneumatic shaft unwinding type,it’s easy and convenient to operate;
Rewinding part adjust Tension Disk by manual and independently;
non-stop changing roll device;
whole machine apply chain driving
LV-105 auto paper core cutting machine
Usage:
Used for cutting adhesive tape paper cores.
Features:
Round knife for cutting, equipped with the cylinder for auto cutting and unloading.
LV-103 paper core loading and unloading machine
Usage
:
Used for the loading and unloading paper core of finished adhesive tape automatically.
LV-200 Mini-type rewinding machine
Usage:
Used for rewinding imperfect finished product of BOPP adhesive tape.
To ensure the quality of the products.
