Quick Details
-
Table Travel (Z) (mm):
-
500 mm
-
Travel (W-axis) (mm):
-
0 mm
-
Marketing Type:
-
Hot Product 2023
-
Positioning Accuracy (X axis) mm:
-
≤0.1mm/ Full length
-
Positioning Accuracy (Y axis) mm:
-
≤0.1mm/ Full length
-
Range of Spindle Speed(r.p.m):
-
30 r.p.m
-
Spindle Motor Power(kW):
-
22kW
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ANTISHICNC
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
10500X5500X3600mm
-
Weight (T):
-
37 T
-
Max workpiece size:
-
6000X2000mm
-
Thickness of workpiece:
-
250mm
-
Spindle motor power:
-
22 kW
-
Max drill diameter:
-
50mm
-
Spindle speed:
-
30~3000r/min
-
CNC axis quantity:
-
3
-
Overall size:
-
10500X5500X3600mm
-
Weight:
-
37t
-
Payment:
-
TT
-
Package:
-
container
Quick Details
-
Table Size (mm):
-
6000X2000mm
-
Table Travel (X) (mm):
-
6000 mm
-
Table Travel (Y) (mm):
-
2000 mm
-
Table Travel (Z) (mm):
-
500 mm
-
Travel (W-axis) (mm):
-
0 mm
-
Marketing Type:
-
Hot Product 2023
-
Positioning Accuracy (X axis) mm:
-
≤0.1mm/ Full length
-
Positioning Accuracy (Y axis) mm:
-
≤0.1mm/ Full length
-
Range of Spindle Speed(r.p.m):
-
30 r.p.m
-
Spindle Motor Power(kW):
-
22kW
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ANTISHICNC
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
10500X5500X3600mm
-
Weight (T):
-
37 T
-
Max workpiece size:
-
6000X2000mm
-
Thickness of workpiece:
-
250mm
-
Spindle motor power:
-
22 kW
-
Max drill diameter:
-
50mm
-
Spindle speed:
-
30~3000r/min
-
CNC axis quantity:
-
3
-
Overall size:
-
10500X5500X3600mm
-
Weight:
-
37t
-
Payment:
-
TT
-
Package:
-
container
ANTISHICNC
HD4
016
CNC Drilling Machine
for beam
China Factory
Specification
|
Parameter Name
|
Item
|
Parameter Value
|
|
|
Max. size
|
L X W
|
6000X2000mm
|
|
|
Max thickness
|
|
250mm
|
|
|
Work table
|
Width of T slot
|
28/500mm
|
|
|
Vertical slide type drill head
|
Quantity
|
1
|
|
|
|
Main spindle taper hole
|
BT50
|
|
|
|
Max drill diameter
|
φ50mm
|
|
|
|
Main spindle speed
|
30—3000r/min
|
|
|
|
Motor power of spindle
|
22kW
|
|
|
(X axis)
Gantry longitudinal move |
Max. stroke
|
6000mm
|
|
|
|
Moving speed of X axis
|
0-8m/min
|
|
|
|
Servo motor power of X axis
|
3kW
|
|
|
(Y axis)
Power head transversal move |
Max stroke
|
2000mm
|
|
|
|
Moving speed of Y axis
|
0-8m/min
|
|
|
|
Servo motor power of Y axis
|
3kW
|
|
|
(Z axis)
Vertical slider feeding |
Stroke of Z axis
|
500mm
|
|
|
|
Feeding speed of Z axis
|
0-5m/min
|
|
|
|
Servo motor power of Z axis
|
3kW
|
|
|
Positioning accuracy
|
X/Y axis
|
≤0.1mm/ Full length
|
|
|
Repositioning accuracy
|
X/Y axis
|
≤0.05mm
|
|
|
Hydraulic system
|
Hydraulic pump pressure/flow rate
|
6.5MPa /25L/min
|
|
|
|
Hydraulic pump motor power
|
3kW
|
|
|
Pneumatic system
|
Compressed air pressure
|
≥0.4MPa
|
|
|
Chip cleaning and cooling
|
Chip cleaner type
|
Plate chain type
|
|
|
|
Chip cleaner no.
|
1
|
|
|
|
Chip cleaning speed
|
1m/min
|
|
|
|
Chip cleaner motor power
|
0.75kW
|
|
|
|
Motor power of inner cooling water pump
|
3kW
|
|
|
|
Motor power of Outer cooling water pump
|
0.75kW
|
|
|
Automatic lubricating system
|
Lubrication pressure
|
2MPa
|
|
|
|
Lubrication point oil injecting amount
|
0.1mL
|
|
|
|
Lubrication period
|
6-10min
|
|
|
Electric system
|
CNC system
|
SIEMENS
|
|
|
|
CNC axis NO.
|
4
|
|
|
Whole power of motors
|
|
Approx. 55kW
|
|
|
Overall size
|
LxWxH
|
Approx. 10500X5500X3600mm
|
|
|
Weight
|
Approx. 37 t
|
|
|

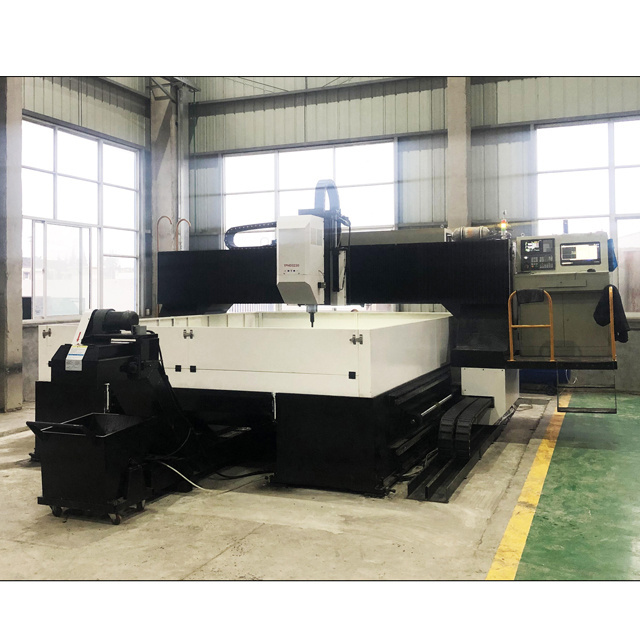

Machine Reference Pictures:
