Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HONGDA
-
Voltage:
-
380V Or as your requirement
-
Weight (KG):
-
280 kg
-
Sidewall Height:
-
As customer require
-
Belt material:
-
Rubber or as your requirement
-
Usage:
-
Transporting material
-
Conveying Angle:
-
0-90 degree
-
Belt Speed:
-
0.5-2m/s
-
Belt Width:
-
300mm/500mm/650mm and up to 2000mm
-
Application:
-
Continuous conveying Grain/Stone/Cereal/Coal etc
-
Adjustable height:
-
Yes
-
Roller Material:
-
Carbon Steel Galvanized
-
Certification:
-
CE certificate
Quick Details
-
Power:
-
0.55-11KW
-
Warranty:
-
1 Year
-
Width or Diameter:
-
300-2000mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HONGDA
-
Voltage:
-
380V Or as your requirement
-
Weight (KG):
-
280 kg
-
Sidewall Height:
-
As customer require
-
Belt material:
-
Rubber or as your requirement
-
Usage:
-
Transporting material
-
Conveying Angle:
-
0-90 degree
-
Belt Speed:
-
0.5-2m/s
-
Belt Width:
-
300mm/500mm/650mm and up to 2000mm
-
Application:
-
Continuous conveying Grain/Stone/Cereal/Coal etc
-
Adjustable height:
-
Yes
-
Roller Material:
-
Carbon Steel Galvanized
-
Certification:
-
CE certificate

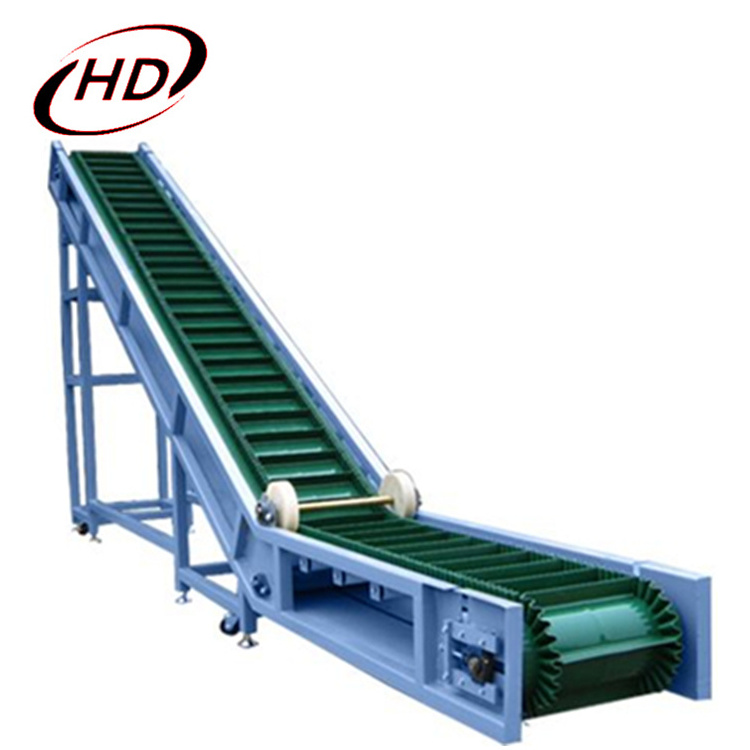

Steep Inclined wave sidewall pvc belt conveyor/Large dip vertical conveying equipment price
2).More than 30 years experience of conveying industry.Specialized in various conveyors(0-90 degree transportation),like Mobile Belt Conveyor,Fixed Belt Conveyor,Heavy Duty Belt Conveyor,Chain Conveyor,Screw Conveyor,PVC Belt Conveyor,PVC(Rubber) Sidewall Belt Conveyor etc.
3).Delivery on time.
4).3% to 10% discounts for new customer(Based on the quantity.)
5).Professional engineer team help you to choose best model for your project
Inclined Conveyor is very well suited for a broad range of free flowing products in the food, agriculture, pharmaceutical, cosmetic, chemical industry, .such as snack foods, frozen foods, vegetales, fruits, confectionary. Chemicals and other granules.
Advantages:
1.
The conveyor belt is made of food grade PP material and made by mold method, with good appearance, not easily deformed, bear high and low temperature.
2.
The machine allow for controlled feeds at one or more locations and can easily interface with various types of feeding devices
3.
The conveyors is easy installation and disassembly, the belt can be wash by water directly.
.
| Belt width(mm) | Sidewall height (mm) | Cleat pitch (mm) | Slant angle | |||||
| 30° | 40° | 50° | 60° | 70° | 90° | |||
| Capacity(m3/h) Speed of belt=1m/s | ||||||||
| 500 | 120 | 252 | 52 | 40 | 32 | 26 | 21 | - |
| 160 | 378 | 65 | 52 | 42 | 34 | 28 | 17 | |
| 650 | 120 | 252 | 78 | 60 | 48 | 39 | 32 | - |
| 160 | 378 | 73 | 56 | 45 | 36 | 30 | - | |
| 800 | 120 | 129 | 99 | 76 | 60 | 49 | 40 | - |
| 200 | 378 | 148 | 114 | 91 | 74 | 61 | 37 | |
| 1000 | 160 | 378 | 129 | 99 | 79 | 64 | 52 | - |
| 240 | 504 | 229 | 176 | 141 | - | - | - | |
| 1200 | 160 | 252 | 223 | 180 | 144 | 117 | 96 | 59 |
| 240 | 378 | 342 | 280 | 224 | 183 | 149 | 91 | |
| 1400 | 200 | 252 | 299 | 231 | 185 | 151 | 123 | 75 |
| 240 | 378 | 422 | 345 | 276 | 225 | 184 | 113 | |
Notes:The parameter above is just for reference.More models please inquiry us directly.
1.The capacity that you require?
2.Whats the material to be conveyed?
3.The conveying length and the width of the belt?
4.The conveying angle?
Packaging:Usually wooden case for small size.Container for big size.
Delivery time:5-7 working days for small size.10-15 Working days for big size.
Xinxiang Hongda Vibration Equipment Co., Ltd. is a professional manufacturer for production, sales, research and development.We has been in these industries for 32 years.We got the ISO9001 certification in 2006,CCC certification in 2008.Our main products are divided into 5 kinds:
1) Vibration Sieving machine: XZS Rotary vibrating screen,DZSF Linear Vibrating screen,Mining vibrating screen,dehydration vibrating screen,YA round vibrating screen.ZDP Vibrating platform.
2) Vibrating motor :JZO vibrating motor,Y-Series vibrating motor,TZDC vibrating motor,VB vibrating motor,XUM vibrating motor,YZUL vertical vibrating motor.ZSF silo vibrator.
3) Conveyor equipment: TD-75 Rubber belt conveyor(0-30 degree convey),DY mobile belt conveyor(0-30 degree convey),DT sidewall belt conveyor(0-90 degree.),LS screw conveyor(groove type),GX screw conveyor(Tube type),WLS shaftless screw conveyor,
4) Bucket elevator :TD Belt type bucket elevator,TH chain type bucket elevator,NE Plate chain bucket elevator,TDG wirerope bucket elevator.
The payment
We company accept TT,L/C,Western Union for new customer.
The delivery time
Normal delivery time within
3
working days, complete production line or larger equipment may take longer. Exact delivery shall be confirmed when place the order.
The quality
Welcome to our factory and check the quality of product.And we will send you the video and pictures before shipment after you order.
Equipment warranty
Equipment with 12 months warranty, can be extended to 24 months as request.
