Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
BLMA
-
Year:
-
2021
-
Power (kW):
-
22
-
Weight (KG):
-
7800
-
Machine Type:
-
Tube Bending Machine
-
Raw Material:
-
Round Pipe Square Tube
-
Keyword:
-
CNC Pipe Tube Bending Machine
-
Color:
-
Blue
-
Application:
-
Pipes Processing
-
Control:
-
PLC---Delta
-
Processing Types:
-
Cold Forming
-
Key Words:
-
Pipe Bender Hydraulic
-
Voltage:
-
220V/380V/415V/440V/customized
-
Port:
-
Shanghai Port
Quick Details
-
Bending Radius (mm):
-
20 - 450
-
Max. Bending Angle (Deg):
-
190
-
Bending Precision (Deg):
-
0.1
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
BLMA
-
Year:
-
2021
-
Power (kW):
-
22
-
Weight (KG):
-
7800
-
Machine Type:
-
Tube Bending Machine
-
Raw Material:
-
Round Pipe Square Tube
-
Keyword:
-
CNC Pipe Tube Bending Machine
-
Color:
-
Blue
-
Application:
-
Pipes Processing
-
Control:
-
PLC---Delta
-
Processing Types:
-
Cold Forming
-
Key Words:
-
Pipe Bender Hydraulic
-
Voltage:
-
220V/380V/415V/440V/customized
-
Port:
-
Shanghai Port

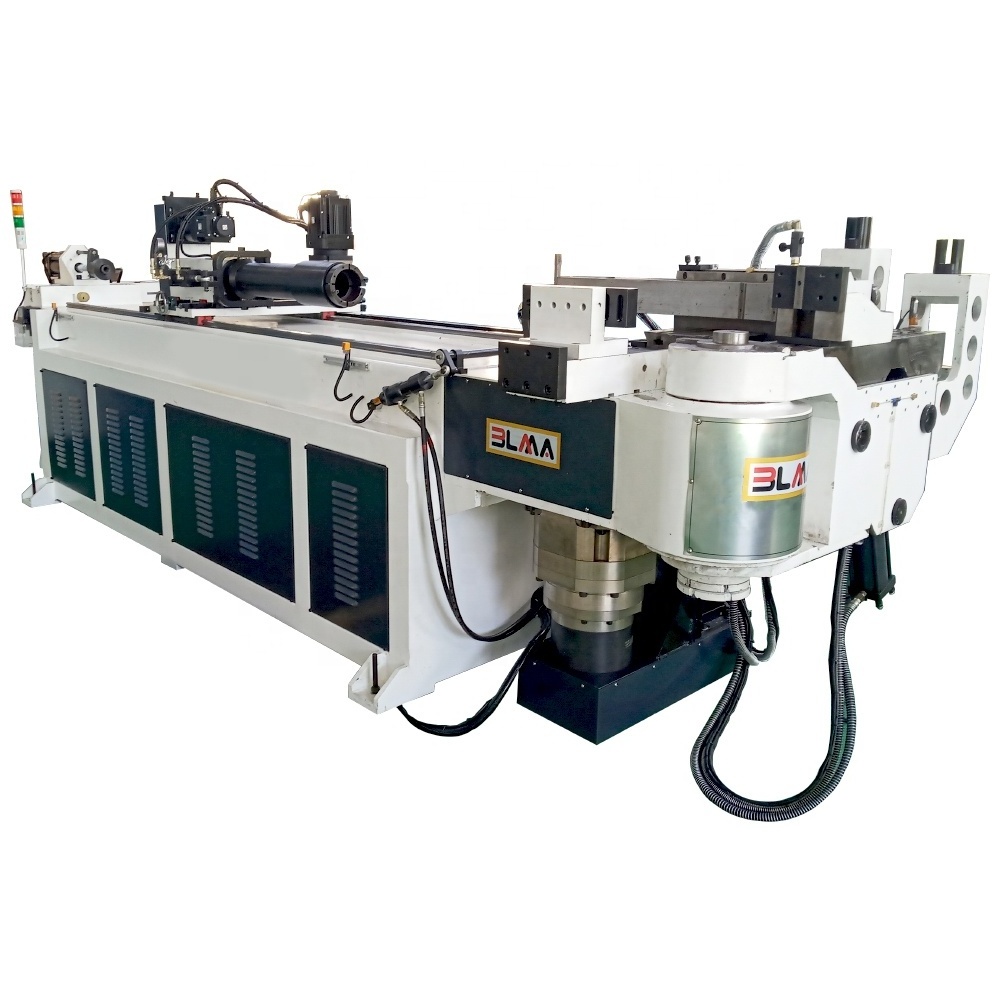

HYDRAULIC NC PIPE BENDING MACHINE
The NC series pipe bending machine equipped with NC controller. It combines easy-to-use operation with high bending accuracy and cost effectiveness. It is the practical semi-automatic solution for small to medium productions. The machine is suitable for various materials such as steel, stainless steel, aluminum and copper.
Products Description
1. Large and medium-sized pipe bending machine with boosting design, can solve the trouble of big radius, big angle and tin bending pipe.
2. Adopting touched operation panel by single chip computer control man-machine conversation operation, very convenient.
3. The angle of bending uses encoder tracking and give a feedback with a high bending precision.
4. With automatic counting and power-off memory function.
5. Equipped with water cooling system to ensure the stability of the machine for a long time.
Bending Moulds
Bending Samples and Application
Our pipe bending machine machine is very suitable for many spatial angles and high requirement of precision, like oil tube of car, air conditional tube, frame of bicycle and motorcycle, indoor and outdoor physical equipment, wheelbarrow, bed frame, chairs and etc.
Product Paramenters
|
Model
|
DW38CNC-2A-1S
|
DW50CNC-2A-1S
|
DW63CNC-2A-1S
|
DW75CNC-2A-1S
|
|
Max capacity
|
φ38.1 (1.5”)×2mm
|
φ50.8 (2”)×2mm
|
φ63.5 (2.5”)×4mm
|
φ76.2 (3”)×5mm
|
|
Max bending radius
|
R180mm
|
R250mm
|
R250mm
|
R300mm
|
|
Bending angle
|
0-190°
|
0-190°
|
0-190°
|
0-190°
|
|
Max feeding length
|
2200mm (can be customized)
|
2500mm (can be customized)
|
3000mm (can be customized)
|
3000mm (can be customized)
|
|
Pipe bending speed
|
Max 150°/s
|
Max 85°/s
|
Max 85°/s
|
Max 40°/s
|
|
Pipe turning speed
|
Max 200°/s
|
Max 200°/s
|
Max 200°/s
|
Max 160°/s
|
|
Pipe feeding speed
|
Max 1000mm/s
|
Max 1000mm/s
|
Max 1000mm/s
|
Max 800mm/s
|
|
Bending precision
|
±0.1°
|
±0.1°
|
±0.1°
|
±0.1°
|
|
Turning precision
|
±0.1°
|
±0.1°
|
±0.1°
|
±0.1°
|
|
Feeding precision
|
±0.1 mm
|
±0.1 mm
|
±0.1 mm
|
±0.1 mm
|
|
Feeding servo motor
|
1 KW
|
1.5KW
|
1.5KW
|
1.5KW
|
|
Turning servo motor
|
0.75KW
|
0.75KW
|
0.75KW
|
1 KW
|
|
Main power
|
4KW
|
5.5KW
|
5.5KW
|
7.5KW
|
|
Dimension(mm)
|
3860x720x1230
|
5000x1300x1500
|
5200x1300x1550
|
5250x1360x1650
|
|
Weight
|
2500kgs
|
2500kgs
|
3000kgs
|
4500kgs
|
We have different model pipe bending machine. Please give us your pipe outer diameter, pipe thickness, pipe material and bending radius, then we will recommend you the suitable model.
|
Model
|
DW89CNC-2A-1S
|
DW114CNC-2A-1S
|
DW130CNC-2A-1S
|
DW168CNC-2A-1S
|
|
Max capacity
|
φ89 (3.5”)×8mm
|
φ114 (4.5”)×8mm
|
φ129(5”)×12mm
|
φ168(6.5”)×16mm
|
|
Min bending radius
|
R300mm
|
R450mm
|
R450mm
|
R600mm
|
|
bending angle
|
0-190°
|
0-190°
|
0-190°
|
0-190°
|
|
Max feeding length
|
3800mm(can be customized)
|
4000mm (can be customized)
|
4200mm (can be customized)
|
4600mm (can be customized)
|
|
Pipe bending speed
|
Max 30°/s
|
Max 30°/s
|
Max 30°/s
|
Max 30°/s
|
|
Pipe turning speed
|
Max 160°/s
|
Max 160°/s
|
Max 160°/s
|
Max 160°/s
|
|
Pipe feeding speed
|
Max 800mm/s
|
Max 800mm/s
|
Max 800mm/s
|
Max 800mm/s
|
|
Bending precision
|
±0.1°
|
±0.1°
|
|
±0.1°
|
|
Turning precision
|
±0.1°
|
±0.1°
|
±0.1°
|
±0.1°
|
|
Feeding precision
|
±0.1mm
|
±0.1mm
|
±0.1mm
|
±0.1mm
|
|
Feeding servo motor
|
2KW
|
3KW
|
3KW
|
4KW
|
|
Turning servo motor
|
1.5KW
|
2KW
|
2KW
|
3KW
|
|
Main power
|
11KW
|
22KW
|
22KW
|
30KW
|
|
Dimension (mm)
|
5650x1390x1380
|
6120x1460x1400
|
6630x1860x1450
|
8100x2000x1700
|
|
weight
|
5500kgs
|
6800kgs
|
7800kgs
|
12000kgs
|
