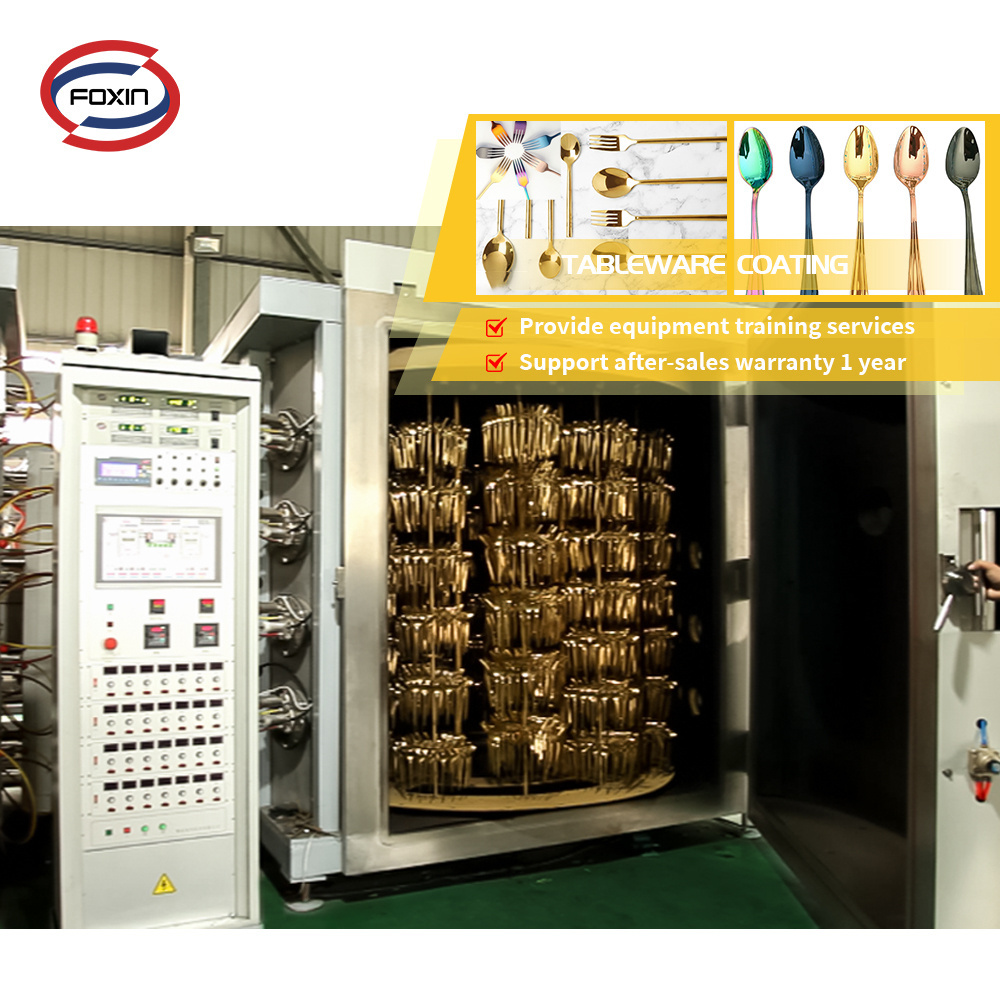

pvd coating machine coating serve for tableware/sanitary /stainless steel hardware/Watches/jewelry/golf clubs/glasses frame

pvd coating machine coating serve for tableware/sanitary /stainless steel hardware/Watches/jewelry/golf clubs/glasses frame

FOB Reference Price: Get Latest Price

≥100 Pieces

US $1.1

≥1000 Pieces

US $1

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: Custom Made

Power:: Custom Made

Dimension(L*W*H):: D1400xH1200

Weight (KG):: 10000

After-sales Service Provided:: Engineers available to service machinery overseas

Chamber Material:: Stainless Steel 304

Structure:: Vertical or Horizontal

Control System:: Auto & Manual

Operation:: PLC Touch Screen

Technology:: Multi Arc + Sputtering

Process:: environmental

paint color:: Gold, Rose Gold, Blue, Gray, Black, Rainbow

Machine Size:: Custom Made

Application:: stainless steel

Quick Details

Machine Type:: PVD coating service, Painting Equipment, Coating Equipment

Place of Origin:: Guangdong, China

Brand Name:: Foxin

Voltage:: Custom Made

Power:: Custom Made

Dimension(L*W*H):: D1400xH1200

Weight (KG):: 10000

After-sales Service Provided:: Engineers available to service machinery overseas

Chamber Material:: Stainless Steel 304

Structure:: Vertical or Horizontal

Control System:: Auto & Manual

Operation:: PLC Touch Screen

Technology:: Multi Arc + Sputtering

Process:: environmental

paint color:: Gold, Rose Gold, Blue, Gray, Black, Rainbow

Machine Size:: Custom Made

Application:: stainless steel

Independent production reduces manufacturing costs and gives you the most practical benefits to the greatest extent.

Products Description

FOXIN-TG Series Multi-Arc lon Coating Equipment Model(Diameter less than 2m)

Model

TG-1418

TG-1620

TG-1820

TG-2021

TG-2023

TG-2040

Vacuum Chamber

Ф1400xH1800mm

Ф1600xH2000mm

Ф1800xH2000mm

Ф2000xH2100mm

Ф2000xH2300mm

Ф2000xH4000mm

Application

Hardware industry, sanitary appliance industry, decoration industry, household appliances industry

Faucet, stair handrail, household appliances, LOGO signs, stainless steel frame, stainless steel parts and plate, etc

Coating Film

Ti-Gold, Rose Gold, Champagne Gold, Japanese Gold, Bright Silver, Rainbow, Jewelry Blue, Rose Red, Black, etc.

Vacuum Chamber

Vertical door, hanging or horizontal cart structure, equip with pumping system and water cooling system

Vacuum System

Sustaining Pump + Mechanical Pump + Roots Pump + Diffusion Pump or Molecule Pump(specific model according to customers'
requirements)

Vacuum

1 set pirani, 1 set cold cathode, 1 set diaphragm gauge

Supply Type

DC power, MF power, pulse power(bias power, arc power)

Ultimate

1.0- 6.0x10-4Pa, Non-loading cooling

Arc Source

16-24 set

18-26 set

22-28 set

22-32 set

200A-300A

Bias Power

40KW/1 set

set

40KW/1 set

50KW/1 set

60KW/1 set

Magnetron Power Supply

1-2 set

set

1-2 set

2-3 set

Rotation

Multi-axis planetary with frequency control(can be controlled and adjusted)

Baking

Normal temperature ~ 300C can be controlled and adjusted(PID temperature control)

Gas

3 or 4 ways working gas flow control and display system matched with auto gas adding system

Ar, N2, O2, C2H2,etc.

Cooling Method

Water cooling circulation, equip with industrial cooling tower or industrial water chiller(refrigerating machine) or cryogenic
system.(customers provide)

Controlling

Manual, half-auto, auto, touch screen operation, PLC or computer controlled

Supply Index

Air Pressure 0.5-0.8MPa, Water Temperature≤25 C ,Water Pressure >0.2MPa

Warning

Alarming system will work when hydropenia, over-voltage, circuit break such abnormal situation happens and carry out related
protect solution and electric interlock.

Total Power

100~125KW

125~145KW

145~165KW

165~185KW

185~200KW

200KW

Output

Voltage 220V, Frequency 50Hz(equip as customers' national electricity standard)

Occupation

1 5~50m²

15~50m²

25~55m²

35~55m²

Remark

Design and produce special machine according to customers' require, can add magnetron sputtering target,MF twins target,etc.

Our Advantages

0 1

Equipment production quality assurance

-----------------------------------

Except for the vacuum pump, other components are produced in the factory to ensure the quality of the equipment. Imported pump power configuration can be customized.

^{A number of processing service factories}

^{----------------------------------}

In addition to the equipment factory, there are also 3 processing service factories that can improve the problem points of the process of using the equipment.

Excellent after-sales team

--------------------------------

Excellent after-sales team, can send technical engineers to local installation, has service more than 30 countries.

^{Industry-leading in the

field of expertise}

^{---------------------------------}

More than 30 years of experience in the coating industry, and has become an industry leader in the professional field of ion plating.

Application areas

Watch and jewelry industry

Precision tool mold industry

Kitchen and Sanitary Ware

Furniture hardware industry

Ceramic tile industry

Stainless steel plate industry

About us

Foshan Foxin Vacuum Technology Co., Ltd specializes in the R&D,production and sales of various vacuum applications. Committed to providing customized process technology and solutions according to customer needs. including unbalanced magnetron , medium frequency magnetron sputtering ,multi arc-ion sputtering ,multi arc-ion and magnetron ion sputtering,arc evaporation sources equipment and other coating equipment. Widely used in tool cutting tools, military, automotive, lighting, mobile phones,hardware watches, jewelry, ceramics, stainless steel plates, stainless steel products and other industries.

After-sales service

Certifications

Obtained a number of invention patent certificates, ISO9001:2015,

quality management system certification, etc.

Packaging & FAQ

Q1. How about the quality control about your products?
A1. We have the ISO9001 QMS , CE certification.

All machine will past the internal quality test and field testing.
Q2. Does your company provide after-sale service ?
A2. Yes. We have the field engineer to set-up and debug the machine .

After the machine is fully running . we have one year of quality warranty and full-life maintenance service .

Q3. Can you provide technical support about my work-flow?
A3. Yes . The Foxin have more than 20 years of experience in Vacuum coating territory.
We also have an independent R&D department ,which will solve your production issue.
Q4. Do you provide the second-hand machine ?
A4. No. All machine in Foxin are new .
We don't manufacture the second-hand machine .
Q5. Does your company supply accessories for our spare parts after we bought your products ?
A5 . Yes . We can supply you all the accessories especially for some consumable material .
