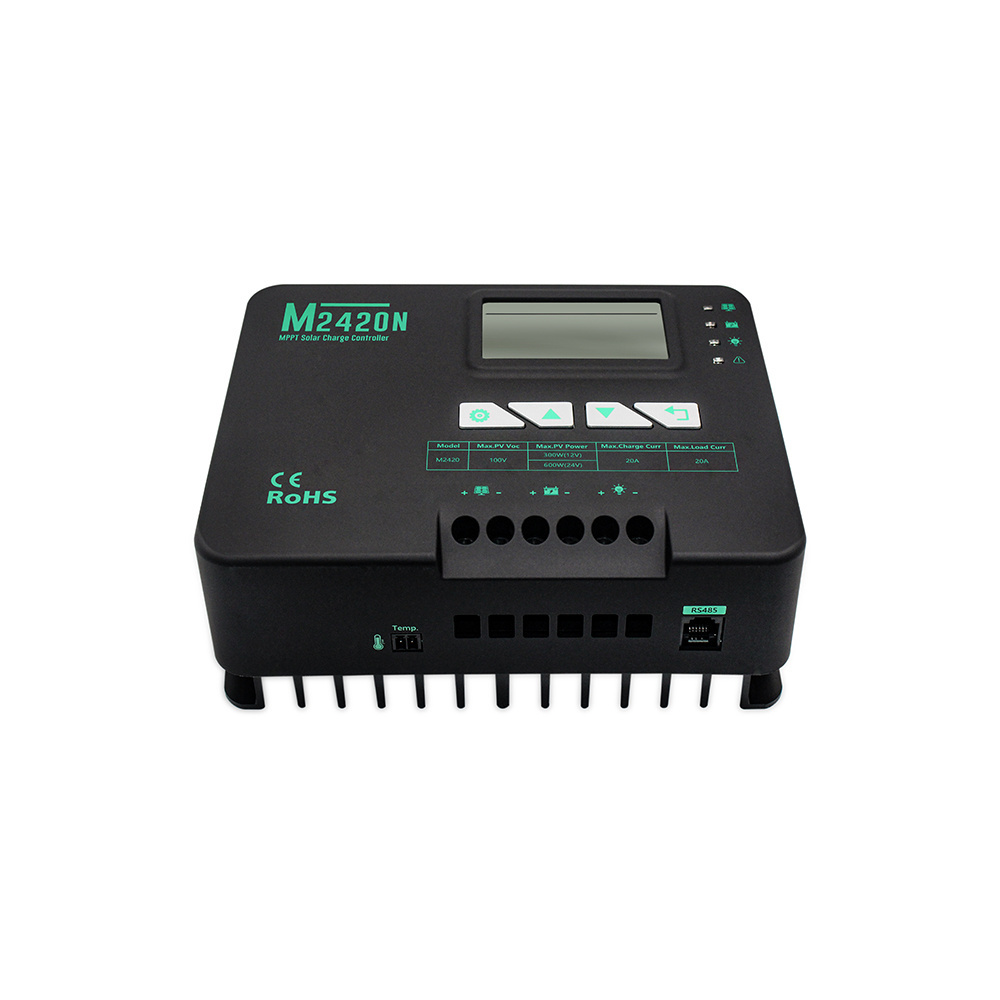

Quick Details
-
Brand Name:
-
HeliosNE
-
Model Number:
-
M2420N
-
Work Time (h):
-
24
-
Max PV Power:
-
600W
-
Max PV Voltage:
-
100V
-
Certificate:
-
CE,Rohs
-
Warranty:
-
3
-
Rated Current:
-
20A
-
Battery type:
-
FLD,GEL,SLD,Li
-
IP Protection:
-
IP43
-
Communication Port:
-
RS485
-
Product name:
-
M2420N
-
brand name:
-
Helios
-
System voltage:
-
12/24V Auto
-
max input power:
-
600W
-
max input voltage:
-
100V
-
Working Temperature( C):
-
-35°C~45°C
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Collector Controller, Water Heater Controller, Solar Working Station, Voltage Controller, Solar System Controller, RV Charge Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HeliosNE
-
Model Number:
-
M2420N
-
Work Time (h):
-
24
-
Max PV Power:
-
600W
-
Max PV Voltage:
-
100V
-
Certificate:
-
CE,Rohs
-
Warranty:
-
3
-
Rated Current:
-
20A
-
Battery type:
-
FLD,GEL,SLD,Li
-
IP Protection:
-
IP43
-
Communication Port:
-
RS485
-
Product name:
-
M2420N
-
brand name:
-
Helios
-
System voltage:
-
12/24V Auto
-
max input power:
-
600W
-
max input voltage:
-
100V
-
Working Temperature( C):
-
-35°C~45°C
Product Description
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Specification
|
Item
|
Value
|
|
|
||
|
Place of Origin
|
China
|
|
|
||
|
Brand Name
|
Helios
|
|
|
||
|
Model Number
|
M2420N
|
M2430N
|
M2440N
|
||
|
Type
|
MPPT
|
|
|
||
|
System Wiring
|
Negative Grounded
|
|
|
||
|
Battery System Voltage
|
12V / 24V
Auto ( FLD / GEL / SEL / USE)
Manual ( Li / USE)
|
|
|
||
|
Work Time (h)
|
24H
|
|
|
||
|
Rated Solar Charge Current
|
20A
|
30A
|
40A
|
||
|
Max PV Power
|
300W/12V ; 600W/24V
|
450W/12V ; 900W/24V
|
600W/12V ; 1200W/24V
|
||
|
Max PV Voltage
|
100Voc
|
|
|
||
|
Light Control Voltage
|
5V*n
|
|
|
||
|
Light Control Delay Time
|
10s
|
|
|
||
|
Max Load Output Current
|
20A
|
|
|
||
|
Certificate
|
CE RoHs
|
|
|
||
|
Warranty
|
3 Years
|
|
|
||
|
No-load Loss
|
12mA (12V), 10mA (24V)
|
|
|
||
|
Operating Temperature
|
-35℃ ~ +45℃
|
|
|
||
|
Protection level
|
IP32
|
|
|
||
|
Net Weight
|
1.21kg
|
2.02kg
|
2.02kg
|
||
|
Communication Port
|
RS485+Bluetooth(APP)
|
|
|
||
|
Operating Altitude
|
≤3000m
|
|
|
||
|
Controller Dimension
|
180*140*71.1mm
|
245*180*82.5mm
|
245*180*82.5mm
|
||
|
Application
|
Charger Controller, RV charge controller, Wind Controller, Collector Controller, Solar Working Station, Lighting Controller, Solar System Controller, Marine Controller
|
|
|
||
|
Battery Voltages
|
Battery Parameters
|
|
|
|
|
||||
|
Battery Types
|
FLD
|
SEL
|
GEL (default)
|
USE
(adjustable)
|
Li
(adjustable)
|
||||
|
Equalize Charge Voltage
|
14.8V*n
|
14.6V*n
|
-
|
Default
|
-
|
||||
|
Boost Charge Voltage
|
14.6V*n
|
14.4V*n
|
14.2V*n
|
Default : GEL
|
Default : 14.2V*n
|
||||
|
Float Charge Voltage
|
13.8V*n
|
13.8V*n
|
|
Default : GEL
|
-
|
||||
|
Boost Charge Recovery Voltage
|
13.2V*n
|
13.2V*n
|
|
Default : GEL
|
-
|
||||
|
Over-discharge Recovery Voltage
|
12.6V*n
|
12.6V*n
|
|
Default : GEL
|
-
|
||||
|
Over-discharge Voltage
|
11.1V*n
|
11.1V*n
|
|
Default : GEL
|
Default : 11.1V*n
|
||||
|
Auto Temperature Compensation
|
-3mV/2V/℃
|
|
|
Default : GEL
|
-
|
||||
|
Accessory List
|
Package Status
|
|
|
|
|||
|
External Temperature Sensor
|
Yes
|
|
|
|
|||
|
Remote LCD Meter
|
Optional
|
|
|
|
|||
|
Bluetooth Module
|
Yes / Inbuit
|
|
|
|
|||
|
Parallel Charge Use Cable
|
Optional
|
|
|
|
|||
|
Installation Guidance Paper
|
Yes
|
|
|
|
|||
|
User Manual
|
Yes
|
|
|
|
|||
