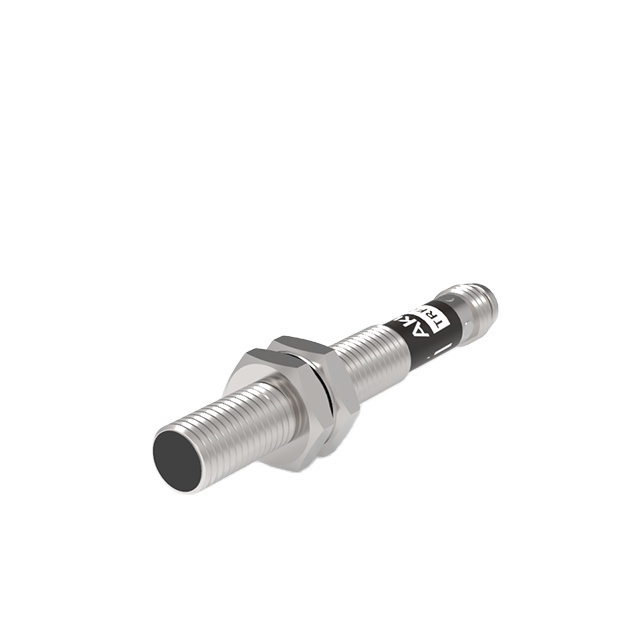

Quick Details
-
Model Number:
-
TRF12-02NC-E2
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AkuSense
-
Theory:
-
Magnetic field induction
-
Output:
-
PNP/NPN
-
Mounting:
-
Shielded
-
Sensing distance:
-
2mm±10%
-
Operating voltage:
-
10~30V DC(Ripple<10%)
-
Voltage drop:
-
<2.0V
-
Load Current, Max:
-
150mA
-
Degree of protection:
-
IP67
-
Current consumption:
-
<10mA
-
Leakage current:
-
<0.01mA
-
Switch frequency:
-
2KHz
-
Repeat accuracy:
-
<1.0%(Sr)
Quick Details
-
Use:
-
Perceive whether metal objects are in place
-
Mounting Type:
-
easy
-
Description:
-
proximity sensor, Inductive Proximity Sensor
-
Model Number:
-
TRF12-02NC-E2
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AkuSense
-
Theory:
-
Magnetic field induction
-
Output:
-
PNP/NPN
-
Mounting:
-
Shielded
-
Sensing distance:
-
2mm±10%
-
Operating voltage:
-
10~30V DC(Ripple<10%)
-
Voltage drop:
-
<2.0V
-
Load Current, Max:
-
150mA
-
Degree of protection:
-
IP67
-
Current consumption:
-
<10mA
-
Leakage current:
-
<0.01mA
-
Switch frequency:
-
2KHz
-
Repeat accuracy:
-
<1.0%(Sr)
Product Description
Specification
|
Mounting
|
|
Shielded
|
|
|
|
||||
|
Housing size
|
|
M8
|
M12
|
M18
|
M30
|
||||
|
Sensing distance
|
|
1.5mm±10%
|
2mm±10%
|
5mm±10%
|
10mm±10%
|
||||
|
Housing material
|
|
Stainless steel
|
Nickle plated brass
|
|
|
||||
|
Operating voltage
|
|
10~30V DC(Ripple<10%)
|
|
|
|
||||
|
Voltage drop
|
|
<1.5V
|
|
|
|
||||
|
Load Current, Max
|
|
150mA
|
|
|
|
||||
|
Current consumption
|
|
<10mA
|
|
|
|
||||
|
Leakage current
|
|
<0.01mA
|
|
|
|
||||
|
Switch frequency
|
|
2KHz
|
1KHz
|
1KHz
|
300Hz
|
||||
|
Repeat accuracy
|
|
<1.0%(Sr)
|
|
|
|
||||
|
Hysteresis
|
|
<15%(Sr)
|
|
|
|
||||
|
Sensing surface material
|
|
PBT
|
|
|
|
||||
|
Operating temperature
|
|
-25℃~+75℃
|
|
|
|
||||
|
Protective circuit
|
|
Short circuit
|
|
|
|
||||
|
Degree of protection
|
|
IP67
|
|
|
|
||||
|
Model No.
|
NPN
Normally open |
TRF08-1.5NO-E1
|
TRF12-02NO-E2
|
TRF18-05NO-E2
|
TRF30-10NO-E2
|
||||
|
|
Others
|
NO:NPN Normally open NC:NPN Normally closed PO:PNP Normally open
PC:PNP Normally closed |
|
|
|
||||
Standard Distance Type (TR series)
●
Classical cylindrical appearance, high stability
●
Adaptive to different occasions, top-notch quality, low price
●
Customizable cables & connectors as requested
