Quick Details
-
Pressure Range::
-
-0.1...0~0.01...100MPa
-
Pressure type::
-
gauge (G), absolute (A), sealed gauge (S)
-
Output signal::
-
0-5V,0.5-4.5V,0-10V,4-20mA,0-20mA
-
Power Supply::
-
12 ~ 30VDC typical value: 24VDC
-
Accuracy::
-
0.25%FS(typ.) 0.5%FS(max.)
-
Working Temp::
-
-25℃~85℃
-
Electronic connection::
-
Packard 3 Pin Connector,Hirschman,
-
Pressure interface::
-
M20x1.5, 1/8''NPT, 1/4''NPT, G1/4'', 7/16''-20 UNF(by Customized)
-
Material of pressure membrane::
-
316L stainless steel
-
EMC Standard::
-
EN 61326-1; EN 61326-2-3:2013 EN 61000-6-2:2005; EN61000-6-4:2007+A1
Quick Details
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
ACME
-
Model Number:
-
APT210
-
Pressure Range::
-
-0.1...0~0.01...100MPa
-
Pressure type::
-
gauge (G), absolute (A), sealed gauge (S)
-
Output signal::
-
0-5V,0.5-4.5V,0-10V,4-20mA,0-20mA
-
Power Supply::
-
12 ~ 30VDC typical value: 24VDC
-
Accuracy::
-
0.25%FS(typ.) 0.5%FS(max.)
-
Working Temp::
-
-25℃~85℃
-
Electronic connection::
-
Packard 3 Pin Connector,Hirschman,
-
Pressure interface::
-
M20x1.5, 1/8''NPT, 1/4''NPT, G1/4'', 7/16''-20 UNF(by Customized)
-
Material of pressure membrane::
-
316L stainless steel
-
EMC Standard::
-
EN 61326-1; EN 61326-2-3:2013 EN 61000-6-2:2005; EN61000-6-4:2007+A1
Product Description

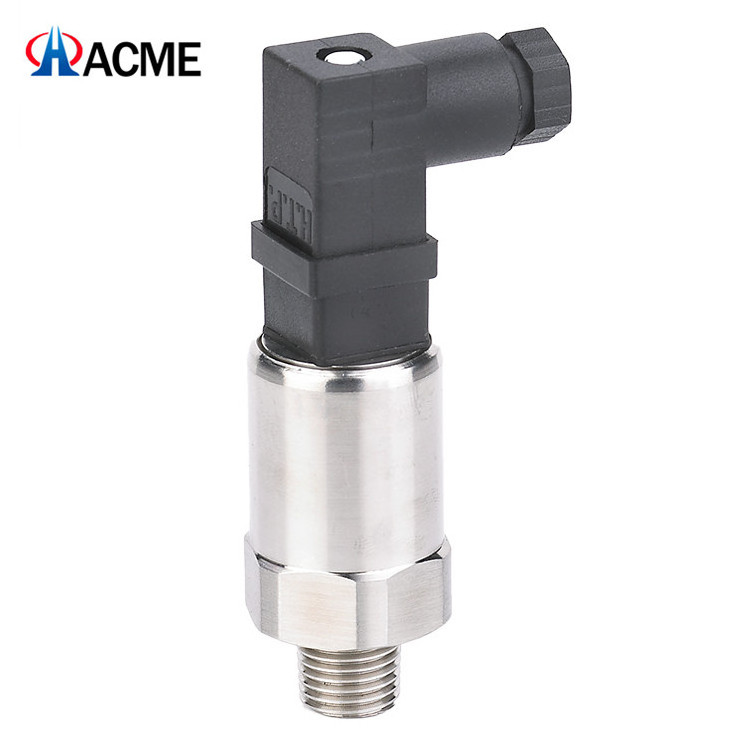

APT210
pressure transmitter
use the Germany Ceramic sensors or diffuse silicon oil-filled sensors body as the sensitive element, built-in processing circuit to change sensors millivolt signal to standard output voltage or current signals, can be directly with the computer, control instrument and display instrument, etc. Select the high stability, high reliability of piezoresistive pressure sensor and high-performance dedicated circuit in the transmitter, the overall performance is stable and reliable, long distance signal transmission can be performed. Adopts the integration of the full stainless steel structure, after lots of stainless steel welding to reach the solid-state design, easy installation, with the characteristics of high vibration resistance and impact resistance, can be use in the bad environment for a long time.
Features
316L stainless steel diaphragm
Micro amplifier,voltage and current output signal lication
Strong anti-interference ,long-term stability
Multiple electrical connection are optional ,easy installation
Small size,low-cos and OEM is available
Wide range,available to Gauge,Absolute and sealed gauge type
Detailed Images
|
Characteristic of APT210 Series Pressure Sensor
|
|
|
|
|
||||
|
1
|
Germany technology Ceramic sensors, 10 years design
|
|
|
|
||||
|
2
|
Ti special integrated processing chip is used in the circuit
|
|
|
|
||||
|
3
|
Automatic temperature compensation -40~80
|
|
|
|
||||
|
4
|
Superior Long term Stability,low temperature drift, high sensitivity
|
|
|
|
||||
|
5
|
Multiple electrical connection are optional ,easy installation
|
|
|
|
||||
|
7
|
Wide range,available to Gauge,Absolute and sealed gauge type
|
|
|
|
||||
|
8
|
HVAC Systems ·Energy and Water Treatment
|
|
|
|
||||
|
9
|
EMI/RFI Rejection
|
|
|
|
||||
Size Information
Dimension Unit of outline drawing
:mm.
Electrionic Connections
OUTPUT=Signal, VCC=Power Supply, GND=VCC-&S,Sheild=Earth
Manufacture Specification
Ambient Temperature: 25°C (unless specified)
|
Parameter
|
Data
|
|
|
|
|
|
|||||
|
Pressure Range
|
-0.1...0~0.01...100MPa
|
|
|
|
|
|
|||||
|
Pressure type
|
gauge (G), absolute (A), sealed gauge (S)
|
|
|
|
|
|
|||||
|
Overpressure
|
150%FS
|
|
|
|
|
|
|||||
|
Burst pressure
|
250%FS
|
|
|
|
|
|
|||||
|
Electronic Wire
|
2 Wires
|
3 Wires
|
|
|
|
|
|||||
|
Output signal
|
4~20mA
|
0~5VDC
|
1~5VDC
|
0~10VDC
|
0.5~4.5VDC
|
0.5~4.5 V radio metric
|
|||||
|
Power Supply
|
12 ~ 30VDC, typical value: 24VDC
|
10~30 V DC
|
10~30VDC
|
12~30VDC
|
5 V DC
|
5 V DC±5%
|
|||||
|
Accuracy
(including: nonlinearity, repeatability, hysteresis, zero drift, full drift) |
0.25%FS(typ.) 0.5%FS(max.)
|
|
|
|
|
|
|||||
|
Long-term stability
|
≤0.2%FS/year
|
|
|
|
|
|
|||||
|
Working Temp
|
−25℃~85℃
|
|
|
|
|
|
|||||
|
Storage Temp
|
−40℃~125℃
|
|
|
|
|
|
|||||
|
Temperature Compensation
|
-10℃~80℃ (Standard)
|
|
|
|
|
|
|||||
|
Temp.coefficient of zero
|
±0.1%FS/°C
|
|
|
|
|
|
|||||
|
Temp.coefficient of span
|
±0.05%FS/°C
|
|
|
|
|
|
|||||
|
Insulating resistance
|
100MΩ@250VDC
|
|
|
|
|
|
|||||
|
Medium compatible
|
Water, gas and weakly corrosive fluids
|
|
|
|
|
|
|||||
|
Short circuit protected
|
Yes
|
|
|
|
|
|
|||||
|
Reverse polarity protection
|
Yes
|
|
|
|
|
|
|||||
|
Electronic connection
|
Packard 3 Pin Connector;
Smaller Hirschman Terminal Box IP65; Packard 3 Pin Connector with cable length by Customized. |
|
|
|
|
|
|||||
|
Pressure interface
|
M20x1.5, 1/8’’NPT male, 1/4’’NPT male/Female, G1/4’’ male/female, 7/16’’-20 UNF male/Female (by Customized)
|
|
|
|
|
|
|||||
|
Material of pressure membrane
|
316L stainless steel
|
|
|
|
|
|
|||||
|
Response time(10%~90%)
|
≤10msec(Rises to 90%FS)
|
|
|
|
|
|
|||||
|
Vibration Shock
|
10g/5~2kHz，axes X/Y/Z/20g half sine 11ms
|
|
|
|
|
|
|||||
|
Water Proof
|
IP65
|
|
|
|
|
|
|||||
|
Certificate approving
|
CE Certificate available.
|
|
|
|
|
|
|||||
|
EMC Standard
|
EN 61326-1:2013; EN 61326-2-3:2013 EN 61000-6-2:2005; EN61000-6-4:2007+A1
|
|
|
|
|
|
|||||
|
Weight
|
Net weight is about 0.1KG, Full Packing weight is about 0.2KG (Included 2 Meters Cable)
|
|
|
|
|
|
|||||
Schematic diagram of common installation method
Best Selling
Company Introduction
Founded in 2019, Acme is a High-Tech Enterprise integrating R&D, production and sales. The company have gathered a number of excellent domestic technical experts in various fields such as automation, electronics, machinery and computer. More than 80% of ACME employees have bachelor's degree. At present, ACME has more than 120,000 customers worldwide and it's products are exported to 109 countries in Europe, America, Australia, Africa, SouthEast and Asia. In the latest petrochemical industry, our newest products have the advantages of small size, temperature changes resistance, high stability and reliability. ACME has a number of national patents. The purification workshop covers 5000 square meters with one automatic production line and two semi-automatic production lines and 1000 ㎡ modern office. The annual production capacity is one million sensors. Our products have passed the ATEX, TUV CE, RoHS and FCC certification of the European Union and North American, The factory have been passed ISO9001:2015 international quality management system certification. Our mature and advanced production processes and technologies can guarantee the safe, stable and long-life time operation on your project.
Our Services & Strength
1.The measuring medium must be compatible with 304 stainless steel and nitrile rubber.
2.If possible, the electrical connection of the pressure transmitter should be as vertical as possible. Measurement of dry gas pressure except indoors and in dry conditions;
3.When the pressure vessel being measured has a water or Air Hammer, a buffer valve must be installed at the front of the pressure transmitter interface.
4.When used to measure the pressure of the outlet of a pressure pump, a buffer valve or a buffer bend must be added at the front end of the pressure transmitter.
5.When a pressure transmitter is installed in the pipeline, the first step is to clean up the liquid at the threaded port and install the pressure transmitter. The second step is to slowly open the valve after installation to prevent pressure impact.
6.When a pressure transmitter is mounted on a turn pipe, it should be at least 9 times the diameter of the pipe at the turn and preferably downstream of the turn flow.
7.When a motor is present in the measuring system, ensure that the motor housing and the housing of the power supply for the pressure transmitter are at the same potential and that the resistance between the housing and the Earth does not exceed 9;
8.When there is a transducer in the measuring system, the shell of the motor controlled by the transducer should be connected to the ground wire of the power supply of the pressure transmitter.
9.When the pressure hole of the pressure transmitter is blocked, it is forbidden to use the sharp device to dredge the pressure hole.
10.The pressure transmitter should be dismounted and the part of the pressure hole should be immersed into the liquid that can dissolve the blocked material. If the user needs to calibrate zero or calibration full range should be under the guidance of our technical people, do not open the transmitter to adjust;
11.The pressure transmitter should be installed in a position that is not vulnerable to collision and trampling;
12.Transmission Cables for pressure transmitters shall not be placed in the same threading tube or in the same wiring groove as other high-voltage or high-voltage cables;
13.When installing pressure transmitters in the Dorey area, be sure to install lightning protection devices and ensure that
the pressure transmitters and power supply are reliably connected to the ear;
