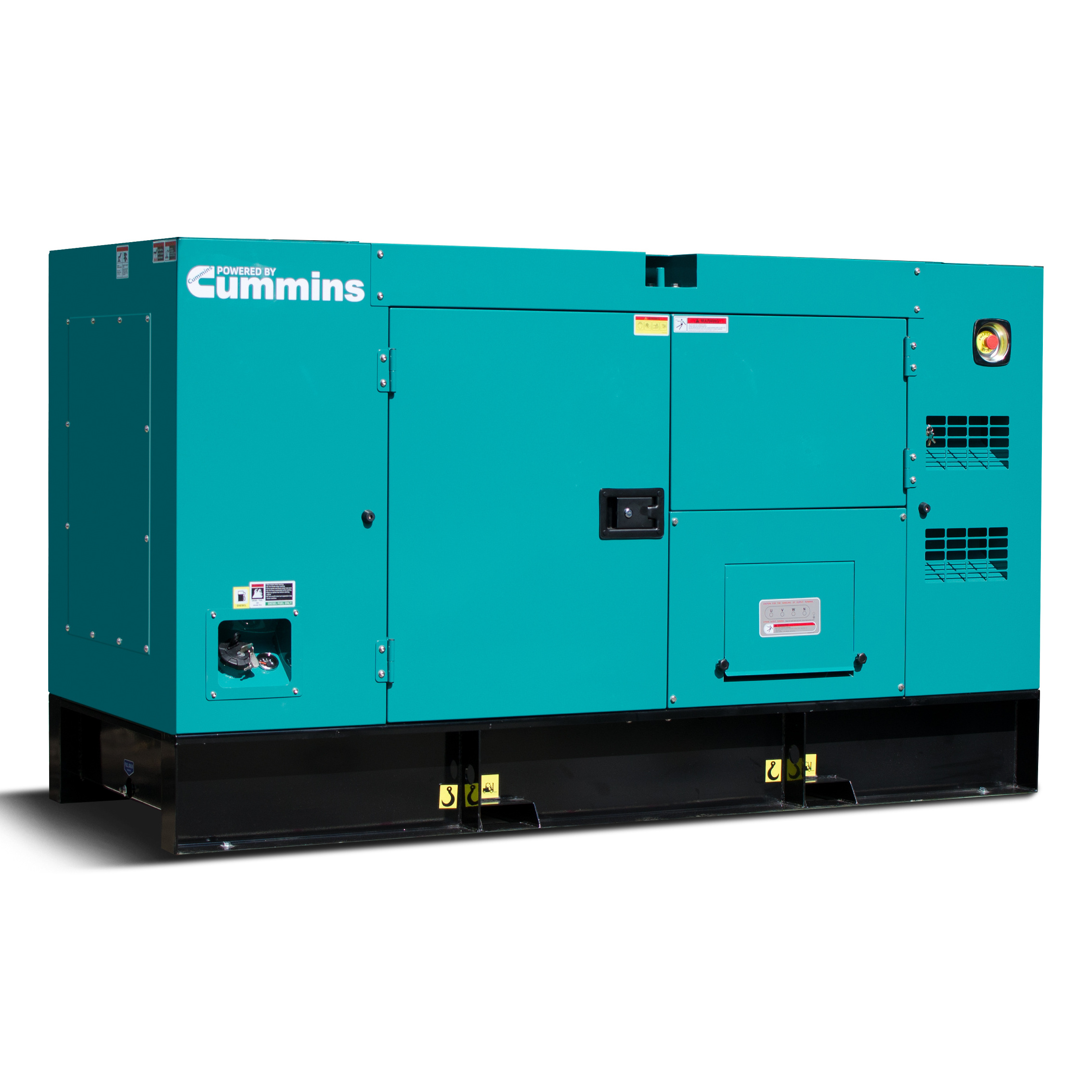

MODEL
|
VOLTAGE
|
HZ
|
PRIME POWER
|
STANDBY POWER
|
TYPE
|
|
WP-C75GF
|
400/230V
|
50
|
51KW
|
56Kw
|
OPEN/SILENT/TRAILER
|
|
Engine spec
|
|
|
|
Engine model
|
4BTA3.9 G2
|
|
|
Engine manufacturer
|
Cummins
|
|
|
Number of Cylinders
|
4 Cylinders in line
|
|
|
Cycle
|
4 Stroke
|
|
|
Aspiration
|
Natural
|
|
|
Bore×Stroke
|
102mm*120mm
|
|
|
Prime power
|
51kw
|
|
|
Standby Power
|
56kw
|
|
|
Steady speed droop
|
≤1%
|
|
|
Governor
|
Mechanical
|
|
|
100% Prime power fuel Consumption
|
216g/kw.h
|
|
|
Dimension(mm)
|
1687*830*1388
|
|
|
Displacement
|
3.9L
|
|
|
Current
|
72A
|
|
|
Cooling System
|
Water cooled
|
|
|
Alternator spec
|
|
|
|
Frequency/speed
|
60HZ/1500rpm
|
|
|
Exciter type
|
Single bearing, Brushless, Self-excited
|
|
|
Power factor
|
0.8
|
|
|
Voltage adjust range
|
≥5%
|
|
|
Voltage regulation NL-FL
|
≤±1%
|
|
|
Insulation Grade
|
H
|
|
|
Protection Grade
|
IP23
|
|
|
Phase
|
Three phases
|
|
