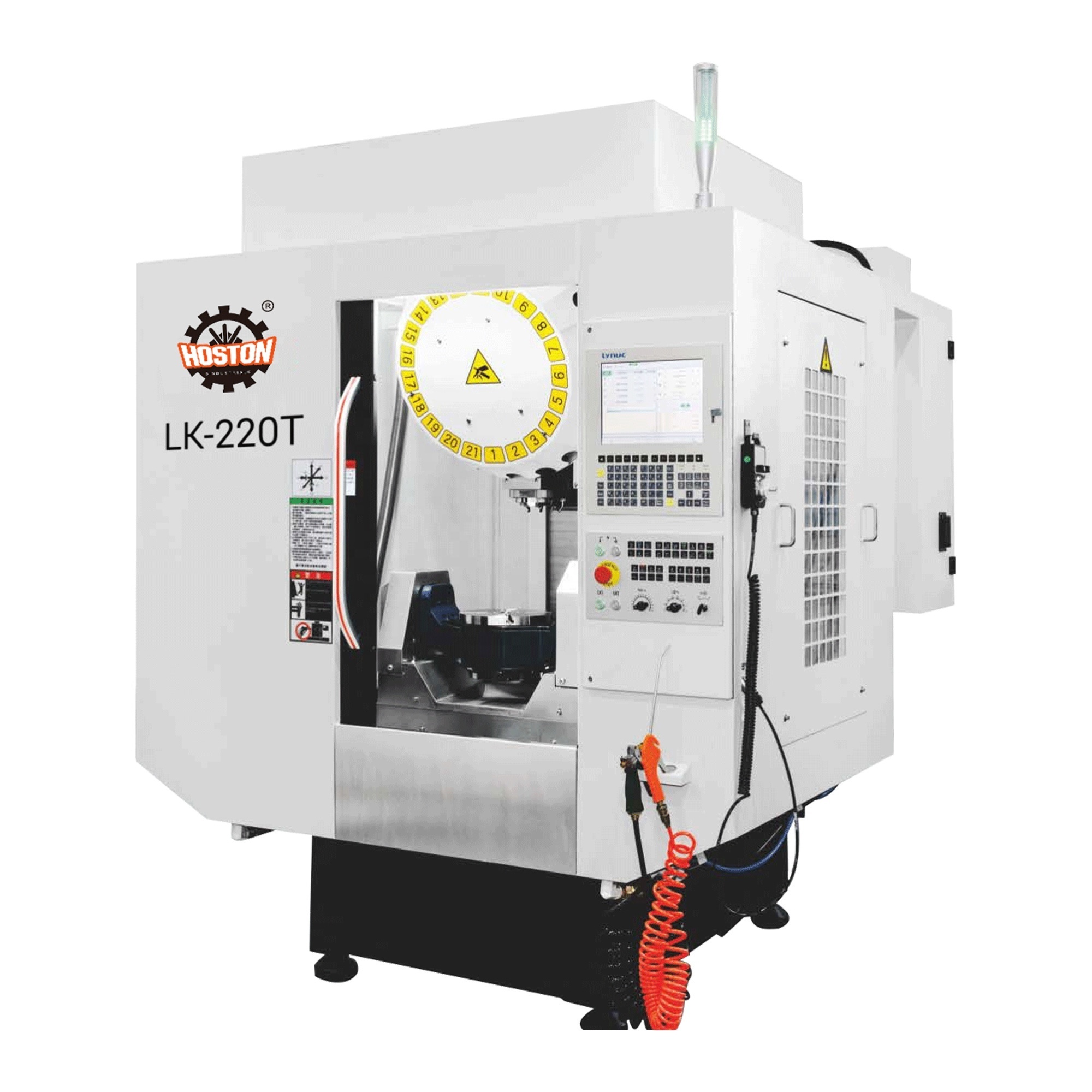

- Product Details
- {{item.text}}
Quick Details
-
Table Travel (Y) (mm):
-
400
-
Spindle Taper:
-
BT30
-
Dimension(L*W*H):
-
2350*2200*2750
-
Weight (T):
-
3.3 T
-
Repeatability (X/Y/Z) (mm):
-
± 0.005
-
Spindle Motor Power(kW):
-
15
-
Max. Table Load(kg):
-
30 kg
-
Place of Origin:
-
China
-
Brand Name:
-
HOSTON
-
Voltage:
-
380v
Quick Details
-
Table Size (mm):
-
260
-
Number of Axes:
-
5
-
Table Travel (X) (mm):
-
600
-
Table Travel (Y) (mm):
-
400
-
Spindle Taper:
-
BT30
-
Dimension(L*W*H):
-
2350*2200*2750
-
Weight (T):
-
3.3 T
-
Repeatability (X/Y/Z) (mm):
-
± 0.005
-
Spindle Motor Power(kW):
-
15
-
Max. Table Load(kg):
-
30 kg
-
Place of Origin:
-
China
-
Brand Name:
-
HOSTON
-
Voltage:
-
380v
Products Description
Product Paramenters
|
Name
|
Unit
|
|
Name
|
Unit
|
|
|
X-axis travel
|
mm
|
600
|
A-axis braking method
|
|
Air brake
|
|
Y-axis travel
|
mm
|
400
|
The distance from the spindle end face to the work table
|
mm
|
400
|
|
Z-axis travel
|
mm
|
300
|
Workbench (turntable) dimensions
|
kg
|
260
|
|
X-axis rapid movement speed
|
m/min
|
48
|
Turntable load-bearing
|
|
30
|
|
Y-axis rapid movement speed
|
m/min
|
48
|
Spindle taper shank model spedfications
|
|
BT30
|
|
Z-axis rapid movement speed
|
m/min
|
48
|
Spindle maximum speed
|
rpm
|
20000
|
|
X/Y/Z axis positioning accuracy
|
mm
|
±0.008
|
Spindle rated power
|
kw
|
5.5
|
|
Repeateable positioning accuracy of X/Y/Z axis
|
mm
|
±0.005
|
Spindle rated torque
|
N.m
|
11
|
|
A-axis travel(tilt axis)
|
°
|
±110
|
Spindle maximum torque
|
N.m
|
22
|
|
A-axis maximum speed
|
rpm
|
100
|
Tool magazine form
|
|
Clamping arm type servo
|
|
A-axis rated torque
|
N.m
|
110
|
The number of tools held by the tool magazine
|
pcs
|
21
|
|
A-axis positioning accuracy
|
arc
|
8”
|
Tool changing time(T-T)
|
s
|
4
|
|
A-axis repeat positioning accuracy
|
arc
|
6”
|
Maximum tool length
|
mm
|
200
|
|
C-axis stroke(rotary axis)
|
°
|
360
|
Maximum tool weight
|
kg
|
4
|
|
C-axis maximum speed
|
rpm
|
200
|
Machine tool apperence
|
mm
|
2350×2200×2750
|
|
C-axis rated torque
|
N.m
|
30
|
Machine weight
|
kg
|
3300
|
|
C-axis positioning accuracy
|
arc
|
6”
|
Machine tool air requirements
|
kg/cm3
|
6
|
|
C-axis repeat positioning accuracy
|
arc
|
4”
|
Total machine power
|
kw
|
15
|
