Quick Details
-
Brand Name:
-
GONOAVA
-
Model Number:
-
GA3800-1200
-
Product name:
-
calibrator
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GONOAVA
-
Model Number:
-
GA3800-1200
-
Product name:
-
calibrator
Products Description

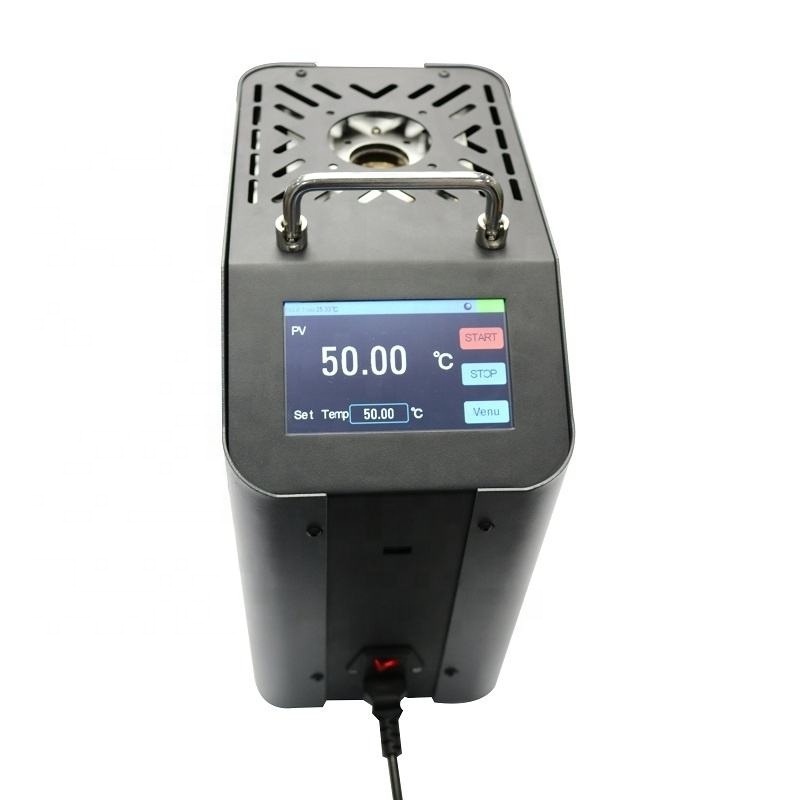

GA3800-1200 Dry Block Temperature Calibrator/dry Bath calibrator 300C~1200C
Note: This product series's input supply voltage is 220V, currently it does not support 110V input voltage, if end user's country use 110V input voltage, need to buy the 110-220V converter or regulator, buyers can buy the converter from us or buy a regulator locally. For 220V input voltage country, no need to buy the converter/regulator.
GA3800-1200 Dry Block Temperature Calibrator/dry Bath calibrator 300C~1200C
GA3800-1200 Dry Block Temperature Calibrator/dry Bath calibrator 300C~1200C
GA3800 series dry type temperature calibration furnace is easy to carry and easy to use. It is used in fast and reliable
temperature calibration and is widely used in machinery, chemical, food, pharmaceutical and other industries. At present, the existing field dry-type calibration furnaces have problems of slow heating and slow constant temperature, which causes users to take long time for each calibration. Our latest dry well furnaces adopts the most advanced heating principle design, featuring fast heating, fast constant temperature and fast cooling, which greatly improves the existing calibration efficiency. Through reliable high-precision temperature control circuits and high-precision sensors, the accuracy is higher than that of other domestic manufacturers, and the technology has reached international standards.
temperature calibration and is widely used in machinery, chemical, food, pharmaceutical and other industries. At present, the existing field dry-type calibration furnaces have problems of slow heating and slow constant temperature, which causes users to take long time for each calibration. Our latest dry well furnaces adopts the most advanced heating principle design, featuring fast heating, fast constant temperature and fast cooling, which greatly improves the existing calibration efficiency. Through reliable high-precision temperature control circuits and high-precision sensors, the accuracy is higher than that of other domestic manufacturers, and the technology has reached international standards.
Specification
|
SPECIFICATIONS
|
|
|
|
|
|
|
||||||
|
|
Dry Type Temperature Calibration Furnace
|
|
|
|
|
|
||||||
|
Model
|
GA3800-150A
|
GA3800-150B
|
|
GA3800-400
|
GA3800-650
|
GA3800-1200
|
||||||
|
Temperature Unit
|
℃/℉
|
|
|
|
|
|
||||||
|
Temperature Range
|
-20℃~150℃
|
|
-30℃~150℃
|
50℃~400℃
|
50℃~650℃
|
300℃~1200℃
|
||||||
|
Control Accuracy
|
0.1%
|
|
|
|
|
|
||||||
|
Display Resolution
|
0.01℃
|
|
|
|
|
|
||||||
|
Temperature Rise Speed
|
30~100:20min
30~150:40min |
30~100:20min
30~150:40min |
|
30~300:7min
30~400:12min |
30~300:7min
30~600:25min |
30~1200:
75min |
||||||
|
Display Basic Accuracy
|
≤±0.2℃
|
≤±0.2℃
|
|
≤±0.35℃
|
≤±0.5℃
|
≤±1.2℃
|
||||||
|
Control Method
|
Touch screen
|
|
|
|
|
|
||||||
|
Temperature Field Stability
|
≤±0.02℃
|
|
|
≤±0.05℃
|
|
≤±0.2℃
|
||||||
|
Vertical Temperature Field
|
Deviation is <1℃ within 30mm from bottom of soaking block hole
|
|
|
|
|
|
||||||
|
Insertion Depth
|
165mm
|
|
|
150mm
|
|
135mm
|
||||||
|
Soaking Heat Block Diameter
|
30mm
|
|
|
|
|
40mm
|
||||||
|
Maximum Power
|
500W
|
500W
|
|
800W
|
800W
|
3000W
|
||||||
|
Net Weight (Approx.)
|
12kg
|
15kg
|
|
11kg
|
11kg
|
12kg
|
||||||
|
Dimension (mm)
|
310*190*340
|
310*190*340
|
|
250*150*310
|
250*150*310
|
310*190*340
|
||||||
|
Operating Environment
|
Environment Temperature is 0~50℃,relative humidity≤95%(No condensation)
|
|
|
|
|
|
||||||
|
Power Supply
|
220VAC±10%, 45~60Hz
|
|
|
|
|
|
||||||
|
Optional Function
|
Data logging and data exporting, maximum 250 sensors, 2500 data, USB Device communication port
|
|
|
|
|
|
||||||
GA3800-1200 Dry Block Temperature Calibrator/dry Bath calibrator 300C~1200C
