Quick Details
-
Panel Efficiency:
-
22%
-
Maximum power(Pm):
-
100.0 W
-
Power Tolerance:
-
-0+3%
-
Voltage of Max power(Vmp):
-
18.00 VDC
-
Current at max power(Imp):
-
5.56 A
-
Open circuit voltage(Voc):
-
21.60 VDC
-
Short circuit current(Isc):
-
6.11 A
-
Cell efficlency:
-
22 %
-
Operating Temperature:
-
-40°C to +85°C
-
Maximum System Voltage:
-
1000 VDC
-
Max. series fuse rating:
-
12 A
-
Size:
-
1160*560*5
-
Certificate:
-
IEC61215, IEC61730, VDE,CE,RoHS
Quick Details
-
Brand Name:
-
Ansun
-
Model Number:
-
SPP-120W
-
Place of Origin:
-
Guangdong, China
-
Panel Efficiency:
-
22%
-
Maximum power(Pm):
-
100.0 W
-
Power Tolerance:
-
-0+3%
-
Voltage of Max power(Vmp):
-
18.00 VDC
-
Current at max power(Imp):
-
5.56 A
-
Open circuit voltage(Voc):
-
21.60 VDC
-
Short circuit current(Isc):
-
6.11 A
-
Cell efficlency:
-
22 %
-
Operating Temperature:
-
-40°C to +85°C
-
Maximum System Voltage:
-
1000 VDC
-
Max. series fuse rating:
-
12 A
-
Size:
-
1160*560*5
-
Certificate:
-
IEC61215, IEC61730, VDE,CE,RoHS
|

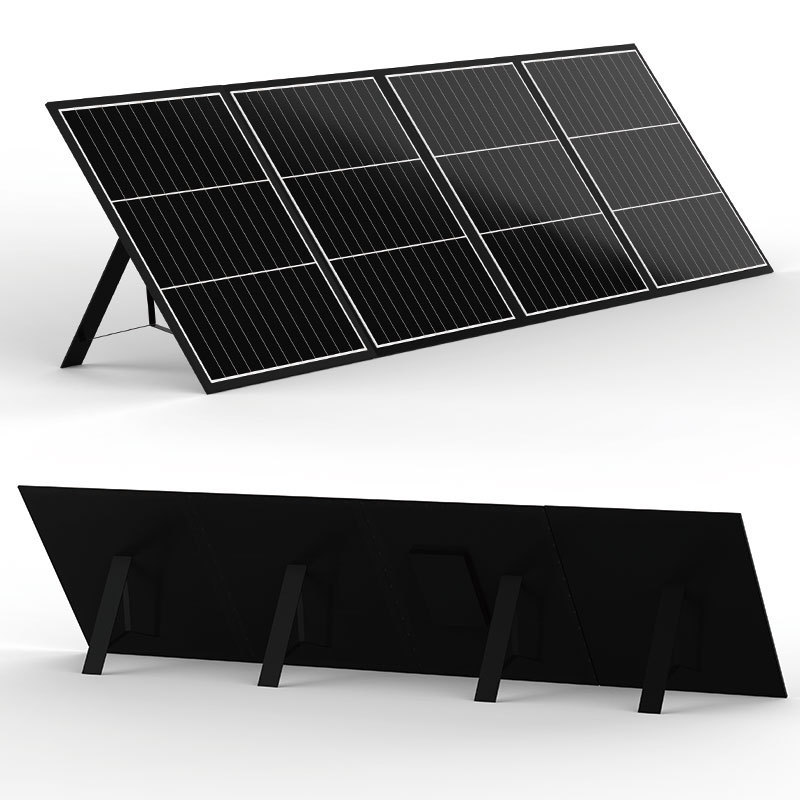

ANSUN Solar Panel
|
|
|
|
|||
|
Technical Specifications
|
|
|
|
|||
|
Model
|
||||||
|
Maximum power(Pm)
|
100 W
|
120W
|
200W
|
|||
|
Voltage of Max power(Vmp)
|
18.00 VDC
|
|
|
|||
|
Power Tolerance
|
-0+3%
|
17.8Hours+
|
24.9Hours+
|
|||
|
Current at max power(Imp)
|
5.56 A
|
6.67 A
|
11.11 A
|
|||
|
Open circuit voltage(Voc)
|
21.60 VDC
|
|
|
|||
|
Short circuit current(Isc)
|
6.11 A
|
7.33 A
|
12.22 A
|
|||
|
Cell efficlency
|
22.00 %
|
|
|
|||
|
Operating Temperature
|
-40°C to +85°C
|
|
|
|||
|
Maximum System Voltage
|
1000 VDC
|
|
|
|||
|
Max. series fuse rating
|
12 A
|
|
|
|||
|
Standard Test Condtion
|
Irrandiance 1000W/M²,AM=1.5 ,Module temperature 25℃
|
|
|
|||
|
Solar cell
|
Monocrystalline sillicon solar cell 125*125mm
|
Monocrystalline sillicon solar cell 158.75*158.75mm
|
Monocrystalline sillicon solar cell 158.75*158.75mm
|
|||
|
Dimension
|
1160*560*5mm
|
1435*535*5mm
|
2130*680*5mm
|
|||
|
Dimension when folded
|
290*560*35mm
|
360*535*35mm
|
570*680*30mm
|
|||
|
Weight per panel
|
4.2Kg
|
5Kg
|
7.5Kg
|
|||
|
|
|
|
||||
