Quick Details
-
Brand Name:
-
Kingsdun
-
Model Number:
-

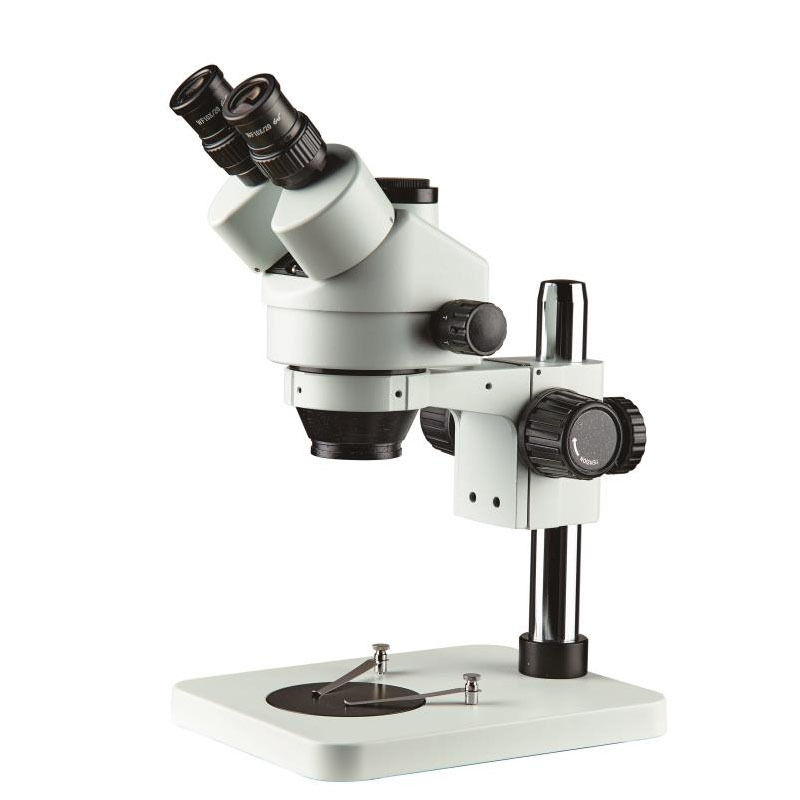

KS7045-B1, stereo microscope
-
Magnification:
-
3.35X-270X
-
eyepiece:
-
10X/22mm,15X/16mm,20X/12mm,25X/9mm,30X/8mm
-
Auxiliary objective:
-
Optional 0.3X,0.5X,0.7X,0.75X,1.5X,2X
-
Base:
-
Column type small flat base
-
Focus bracket:
-
Focusing bracket handwheel adjustable elasticity, lifting range 50mm
-
Illumination:
-
Optional various fluorescent and LED ring lights
-
Observation head:
-
interpupillary distance 54-76mm; bilateral diopter adjustment (±5)
Quick Details
-
Theory:
-
Biological Microscope
-
Drawtube:
-
BINOCULAR
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Kingsdun
-
Model Number:
-
KS7045-B1, stereo microscope
-
Magnification:
-
3.35X-270X
-
eyepiece:
-
10X/22mm,15X/16mm,20X/12mm,25X/9mm,30X/8mm
-
Auxiliary objective:
-
Optional 0.3X,0.5X,0.7X,0.75X,1.5X,2X
-
Base:
-
Column type small flat base
-
Focus bracket:
-
Focusing bracket handwheel adjustable elasticity, lifting range 50mm
-
Illumination:
-
Optional various fluorescent and LED ring lights
-
Observation head:
-
interpupillary distance 54-76mm; bilateral diopter adjustment (±5)
Detailed description：
Provide high-quality optical system and durable and reliable operating mechanism. Complete accessories, diversified combination configuration. Meet the requirements of high precision in modern biology, medicine, scientific research, modern electronic industry online detection and other scientific and technological industries.
|
Performance characteristics:
1 High-quality optical parts coated with special coatings, creating high-quality optical images 2
Form a positive image with a flat image surface and good contrast in a large field of view, especially brighter and clearer image quality in the peripheral field of view 3 Adopt continuous zoom objective lens 0.7X～4.5X (6.3:1), standard magnification 7X～45X. (Optional auxiliary objective, Magnification 14X～180X) 4 The effective standard working distance reaches 100mm, with the auxiliary objective lens, the working distance will be extended to 26 mm ~ 287mm, Create enough space for use 5 The observation head is tilted at 45°, and the binocular vision can be adjusted to ensure that users with different eyesight can obtain clear and satisfactory images 6Ergonomic structure design, best eye point height, no fatigue after long time use 7 The horizontal (axial) bilateral setting of the zoom handwheel is convenient and comfortable to operate, and the repeatability of the zoom is high |
