Quick Details
-
Place of Origin:
-
Anhui, China
-
item NO:
-
BT-680
-
Color:
-
black
-
material:
-
AL
-
waterproof ability:
-
good
-
Key words:
-
ku band antenna/satellite dish
-
packing:
-
standard export carton
-
factory:
-
Anhui bowei eletronics technology Co.,ltd
-
type:
-
pole/polar mount
-
thickness:
-
0.4/0.5/0.6/0.7/0.8/0.9/1mm
-
applicable areas:
-
whole the world
Quick Details
-
FTA(Free To Air):
-
Yes
-
Type:
-
Digital
-
High Definition:
-
Yes
-
Place of Origin:
-
Anhui, China
-
item NO:
-
BT-680
-
Color:
-
black
-
material:
-
AL
-
waterproof ability:
-
good
-
Key words:
-
ku band antenna/satellite dish
-
packing:
-
standard export carton
-
factory:
-
Anhui bowei eletronics technology Co.,ltd
-
type:
-
pole/polar mount
-
thickness:
-
0.4/0.5/0.6/0.7/0.8/0.9/1mm
-
applicable areas:
-
whole the world

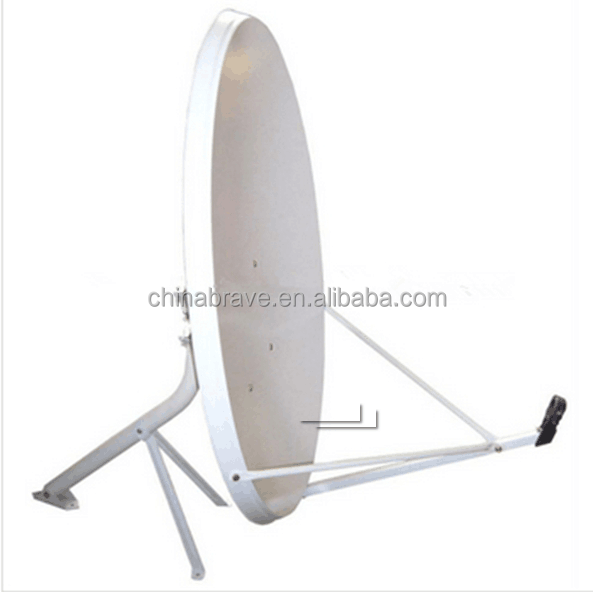

Ku Band Mesh Antenna,Ku Band Ground Mount Antenna,Ku Band Wall Mount
Specifications
1.the surface of KU band 30cm 35cm40cm 45cm50cm55cm60cm65cm70cm80cm85cm90cm95cm 100cm120cm150cm 180cm satellite antenna uses polyester powder coating.
2.High quality with reasonable price.
|
ype |
KU-100 |
KU-120 |
KU-135 |
KU-150 |
|
Short axle |
100CM |
120CM |
135CM |
150CM |
|
Long axle |
110CM |
132CM |
145CM |
165CM |
|
Ku band gain12.5GHz |
41.3 dB |
43.32dB |
43.5dB |
44.26dB |
|
F/D ratio |
0.6 |
0.65 |
0.65 |
0.65 |
|
Focus distance |
620MM |
720MM |
790MM |
900MM |
|
Material |
Steel board |
Steel board |
Steel board |
Steel board |
|
Surface |
Plastic polishing |
Plastic polishing |
Plastic polishing |
Plastic polishing |
|
Suport |
Many uses with |
Many uses with |
Many uses with |
Many uses with |
|
Angle of elevation |
0-90 |
0-90 |
0-90 |
0-90 |
|
Level |
Fixed/0-360 |
Fixed/0-360 |
Fixed/0-360 |
Fixed/0-360 |
|
Can receive |
25m/sec |
25m/sec |
25m/sec |
25m/sec |
|
Can replace |
40m/sec |
40m/sec |
40m/sec |
40m/sec |
|
Not damage |
60m/sec |
60m/sec |
60m/sec |
60m/sec |
|
Work surrouding temperature |
‘-40°C--+60°C’ |
‘-40°C--+60°C’ |
‘-40°C--+60°C’ |
‘-40°C--+60°C’ |
