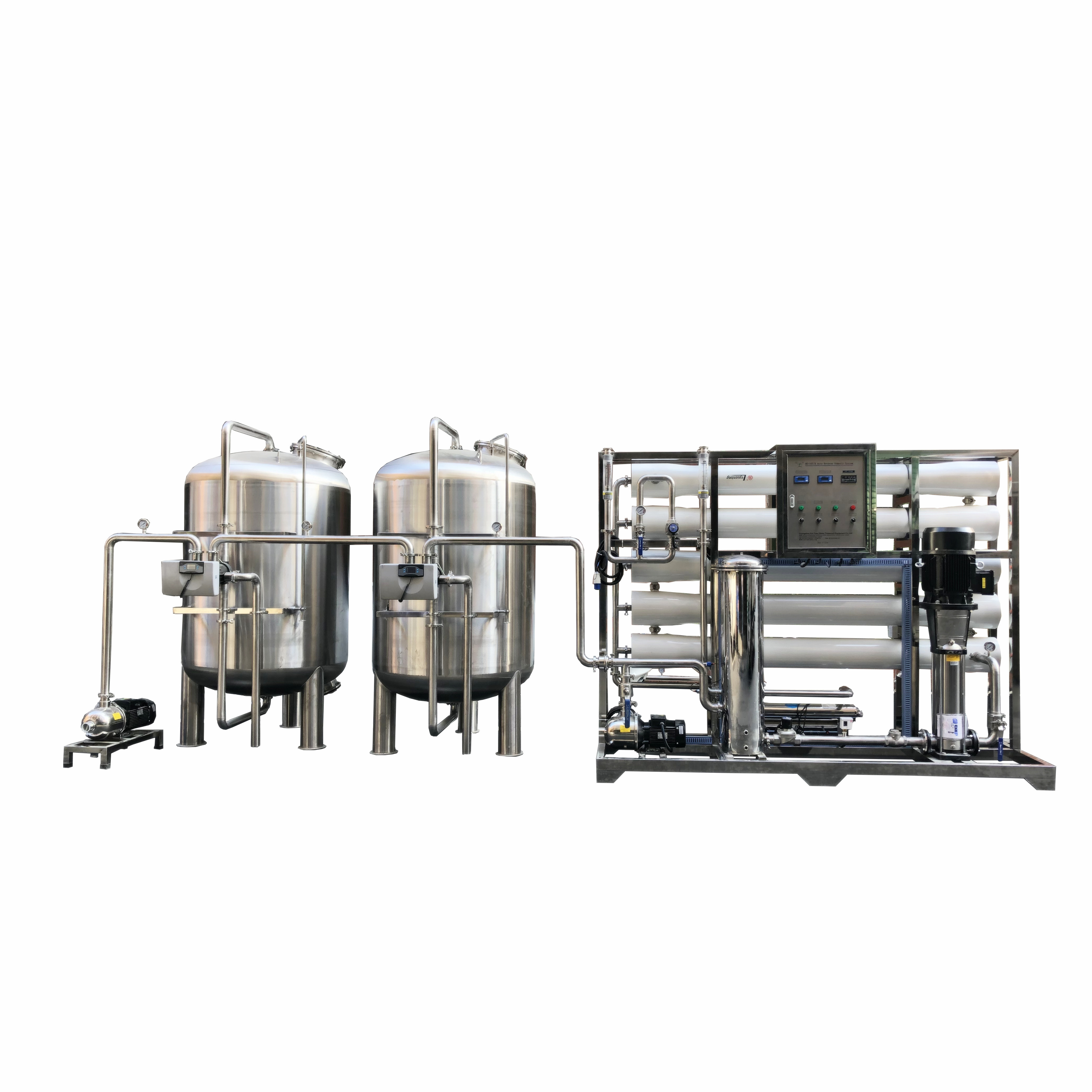

10 cubic meter per hour output water reverse osmosis ro drinking water purification system

10 cubic meter per hour output water reverse osmosis ro drinking water purification system

FOB Reference Price: Get Latest Price

≥1 Sets

US $15000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Material:: wooden box

Weight:: 800kgs

Size:: 7000mm 1500mm 2300mm

Power:: 15KW

Weight (KG):: 800 kg

capacity:: 10T/H

rated power:: 15Kw/H

certification:: CE ISO

tank material:: stainless steel

package:: standard packing

desalting rate:: more than 97%

water recovery:: more than 60%

warranty:: 1 year

video:: English installation video

Application:: Water Purification

Quick Details

Marketing Type:: New Product 2021

Place of Origin:: Guangdong, China

Brand Name:: Kai Yuan

Material:: wooden box

Weight:: 800kgs

Size:: 7000mm 1500mm 2300mm

Power:: 15KW

Weight (KG):: 800 kg

capacity:: 10T/H

rated power:: 15Kw/H

certification:: CE ISO

tank material:: stainless steel

package:: standard packing

desalting rate:: more than 97%

water recovery:: more than 60%

warranty:: 1 year

video:: English installation video

Application:: Water Purification

10 cubic meter per hour output water reverse osmosis ro drinking water purification system

Product Description

Reverse Osmosis System is an equipment to purify the saltine water with the action of pressure difference of semi permeable membrane. RO is also effective with asbestos, many taste, color and odor producing chemicals, particulates, total dissolved solids, turbidity and radium. RO system is widely used in water supply treatment, purification for tap water, seawater and brackish water, pure water and ultra-pure drinking water production, power stations, electronic industries, and medical treatment. It is key equipment of pure water plant.

Reverse Osmosis System can remove large particle, colloid, organic impurity, heavy metal ion, bacteria from water, and it can also remove more than 97% dissolved salt and solid.

Specified configuration of RO system（Each part is optional, for reference)
Item	Material/Model	Brand	Function
Raw water pump	SS304/SS316	Lingxiao/CNP/Grundfos/ Danfoss	Provide pressure for raw water
Quartz sand filter	FRP/SUS-304/SS316	China	Get rid of turbidity, suspended matter, colloid, etc.
Activated carbon filter	FRP/SUS-304/SS316	China	Remove the color, free chloride, organic matter, absorb odor, smell, etc... to make clear water
Anti scalant chemical dosing system /water softener(optional)	FRP/SUS-304/SS316	China	Remove Calcium ion(Ca2+) and magnesium ion(Mg2+) of removing hardness from water.
Security filter	SS304 1mircon/5mircon	China	Block impurities greater than 5micron(1micron)
High pressure pump	SS304/SS316	CNP/Grundfos/Danfoss	Provide pressure for water into RO membrane
RO membrane	BW30-400IG or LCLE-4040	Domestic/Vontron / DuPont FilmTec	Remove heavy mental ion, bacterial. Desalination rate is more than 97%
UV Sterilzier(Optional)	40w	China	Kill 99% bacterial (For drinking directly)
Ozone Genernator(Optional)	15g/l	China	Kill 99%bacterial and keep 2hours.(For making bottled water)
CIP Washing system(optional)	including washing tank and pump	China	Membranes maintenance
Solenoid valves, gauges,switch..	China	Cooper/SUS-304/SUS-316	To protect the machine under operation
Electronic control	China	PLC Program control system	including Water conductivity monitor, AC contactor, Air switch, indicator light, knob switch, electrical miscellaneous... PH meter and thermometer is optional.

Advantages:
1.Can run and produce water continuously, highly automatic
2.No need chemical to regeneration,easy operation.

3.Automatic switch on when lack of water,and switch off when no water or full of water
4.RO membrane auto wash and reduce the pollution speed.
5.Low-pressure switch protects high-pressure pump from damage cause by water supply stops.
6.Production water conductivity meter monitors water quality online.
7.Input water and dense water pressure meters, monitor the RO differential pressure and remind the time of washing.

Detailed Images

Raw water booster pump

Brand: CNP
Original: China

Function: Put source water into filters, provide pressure for pre-treatment

Material: SUS-316/304

High pressure pump

Brand: CNP
Original: China
The famous pump brand in China.It is to provide the pressure for water into RO membrane.It is the important part in the system

Material: SUS-316/304

RO membrane

Name: BW30-400IG
Brand: Dupont, USA
Quantity: 10 pcs
imported USA DuPont FilmTec RO membrane, the output water quality of this membrane can be maintained for one and a half year. The
Service life is about 2 years.

It can remove particle, colloid, organic impurity, heavy metal ion, bacteria and virus from water,
and it can also remove more than 97%
dissolved salt.

Electric control box

PLC (Programmable Logic Controller):Design the progaram as requirements if you need.

Remote control : this machine can be control by the mobile phone in one app.

For the electric control system, air switch ,fuse and thermal relay etc., When the raw water pump or high pressure pump overheat, relay will stop. So it can protect water pumps from damage.

Control panel

Touch screen :show the running of machine and operate it

Company name and logo design:customize as your requirements

Automatic control valves

Washing and backwash automatically every 2-3 days
Brand: RUNXIN, China

FRP RO membrane housing

All pipeline are stainless steel
More durable and health
Food grade
pharmacy grade

Machine Pictures

Stainless Steel Technology

Our Company

Packing & Delivery

Packaging
Packaging Details	The normal package is wooden box(Size: LWH). we will pack it according to customers special request.

Manual Operation
Manual Operation and video	we will send the Manual operation and installation video together with machine.The machine is finished in our factory. You just install easily according to the video and Manual operation.
