Quick Details
-
Main Circuit Rating Voltage:
-
24V,36V,110V,220V,380V
-
Main Circuit Rating Current:
-
100A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DOTO/OEM
-
Model Number:
-
CJX2/LC1-D65
-
Certificate:
-
CCC CE
-
Product Name:
-
3 poles AC Contactor
-
Type:
-
AC Contactor
-
Coil Voltage:
-
660v
-
Frequency:
-
50Hz/60Hz
-
Rated Current:
-
65A
-
Standard:
-
CE/IEC60947-4-1
-
Quality:
-
silver contact
-
Application:
-
AC Motor
-
Packaging:
-
Carton
Quick Details
-
Electricity Type:
-
AC
-
Number of Pole:
-
3
-
Phase:
-
3
-
Main Circuit Rating Voltage:
-
24V,36V,110V,220V,380V
-
Main Circuit Rating Current:
-
100A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DOTO/OEM
-
Model Number:
-
CJX2/LC1-D65
-
Certificate:
-
CCC CE
-
Product Name:
-
3 poles AC Contactor
-
Type:
-
AC Contactor
-
Coil Voltage:
-
660v
-
Frequency:
-
50Hz/60Hz
-
Rated Current:
-
65A
-
Standard:
-
CE/IEC60947-4-1
-
Quality:
-
silver contact
-
Application:
-
AC Motor
-
Packaging:
-
Carton

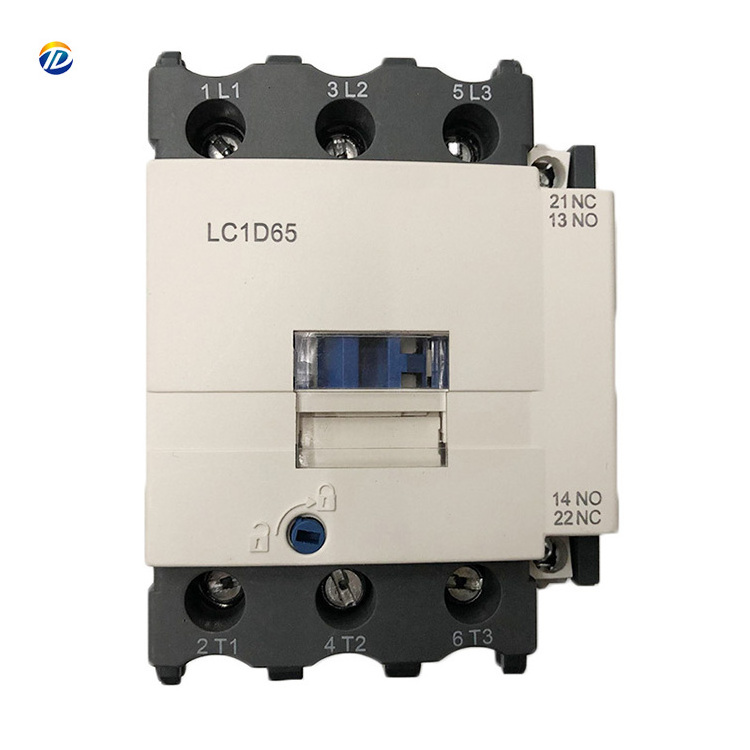

New Design CJX2 series lc1-d65 telemecanique electric magnetic contactor 3P 65A ac contactor
| Type: AC Contactor |
CJX2(LC1-D) series AC contactors are mainly used for AC 50Hz / 60Hz.rated voltage up to 660V and rated current up to 95A for remote switch, breaking and frequent starting, controlling the AC motor. Moreover, the contactor can act as the time-delay contactor, reversible contactor, star-delta starter by the accessories addition such as addition of modular auxiliary contact set. Air time delay head, mechanical interlock mechanism, etc. Moreover,it could act as the electromagnetic starter by the direct plug of the thermal relay.
This product conforms to the requirement of IEC60947-4-1& GB14048.4 standards.
| Specification | ||||||||||
| Type |
Rated
insulation voltage(V) |
Conventional
thermal current(A) |
Rated
operation current(A) |
Control power(kw) | No .of contacts | Installation Method | ||||
| 220V | 380V | 415V | 440V | 660V | ||||||
| LC1-0910 | 660 | 20 | 9 | 2.2 | 4 | 4 | 4 | 5.5 | 3P+1NO |
1.2 Screw installation
2.35mm installation rail |
| LC1-0901 | 660 | 3P+1NC | ||||||||
| LC1-1210 | 660 | 20 | 12 | 3 | 5.5 | 5.5 | 5.5 | 7.5 | 3P+1NO | |
| LC1-1201 | 660 | 3P+1NC | ||||||||
| LC1-1810 | 660 | 32 | 18 | 4 | 7.5 | 9 | 9 | 9 | 3P+1NO | |
| LC1-1801 | 660 | 3P+1NC | ||||||||
| LC1-2510 | 660 | 40 | 25 | 5.5 | 11 | 11 | 11 | 15 | 3P+1NO | |
| LC1-2501 | 660 | 3P+1NC | ||||||||
| LC1-3210 | 660 | 50 | 32 | 7.5 | 15 | 15 | 15 | 18.5 | 3P+1NO | |
| LC1-3201 | 660 | 3P+1NC | ||||||||
| LC1-4011 | 660 | 60 | 40 | 11 | 18.5 | 22 | 22 | 30 | 3P+NO+NC |
1.3 Screw installation
2.35mm installation rail |
| LC1-5011 | 660 | 80 | 50 | 15 | 22 | 25 | 30 | 33 | ||
| LC1-6511 | 660 | 80 | 65 | 18.5 | 30 | 37 | 37 | 37 | ||
| LC1-8011 | 660 | 125 | 80 | 22 | 37 | 45 | 45 | 45 | ||
| LC1-9511 | 660 | 125 | 95 | 25 | 45 | 45 | 45 | 45 | ||
