Quick Details
-
Application:
-
Seeds Planting Machine
-
Use:
-
Seeding
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yousui
-
Weight:
-
400 KG, 250kg
-
Core Components:
-
Blades
-
Keywords:
-
peanut planter manual seed planting machine
-
Color:
-
Customized
-
Seeds:
-
Maize/wheat/soyeabn
-
Row spacing:
-
500-700mm
-
Matched power:
-
20-120hp
-
Seeding depth:
-
60-80mm
-
Working efficiency:
-
0.26-0.36ha/hour
-
Model:
-
2BYS-3
-
After Warranty Service:
-
Video technical support
Quick Details
-
Number of Rows:
-
2, 3, 4, 5, 6, 7, 8, 10, 12
-
Applicable Industries:
-
Farm machiney
-
Type:
-
mechanical
-
Application:
-
Seeds Planting Machine
-
Use:
-
Seeding
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yousui
-
Weight:
-
400 KG, 250kg
-
Core Components:
-
Blades
-
Keywords:
-
peanut planter manual seed planting machine
-
Color:
-
Customized
-
Seeds:
-
Maize/wheat/soyeabn
-
Row spacing:
-
500-700mm
-
Matched power:
-
20-120hp
-
Seeding depth:
-
60-80mm
-
Working efficiency:
-
0.26-0.36ha/hour
-
Model:
-
2BYS-3
-
After Warranty Service:
-
Video technical support

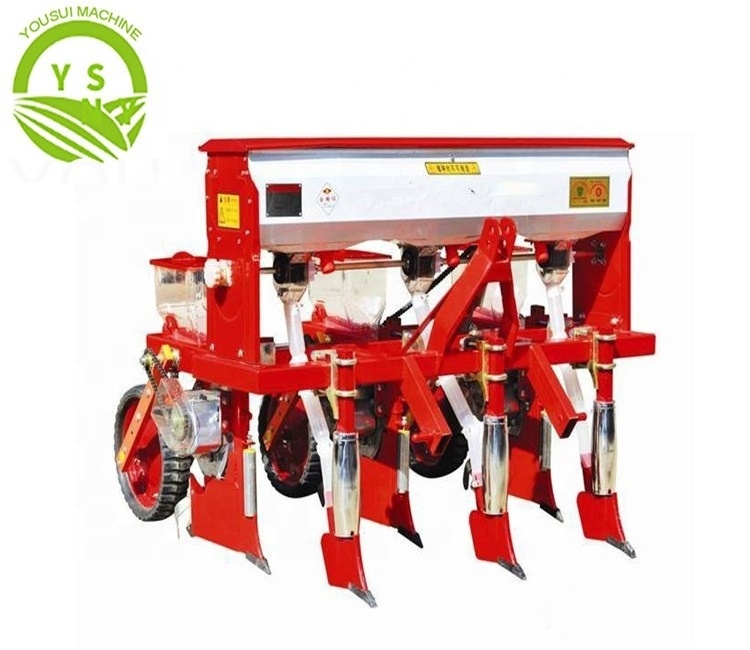

Corn planter soybeans seeder peanut planter manual seed planting machine
I ntroduction:
2BYS series corn planter can be matched with tractor,it is widely used in no-tillage field.It can sow different crops,such as corn,soybean,peanut. When sowing,it can realize fertilizer function. The planter features simple structure and convenient to operate. This machine can realize multiple operations such as furrowing, fertilizing, seeding, casting soil and pressing soil at the same time.
Features
1. This machine adopted gravity seed cleaning, no damage to seeds. It can pick out the whole disc cover when clear the seeds. Seeds clearance is convenient and thoroughly.
2.High precise seeds clearance, sowing evenly and stable, saving seeds and less thin out seedling.
3. It adopted ’zero speed’, equipotentiality and low-height sowing, corn hole spacing is accurate, seeds are neat and strong, seeds space evenly.
4. It can adjust rows spacing by adjusting different driven gears.
5. The machine have the characteristics of narrow trenching, good preservation of soil moisture. It is all available to fertilize in front or on the side , matching range is wide.
Technical parameters :
|
Model |
2BYS-2 |
2BYS-3 |
2BYS-4 |
|
Overall Size(mm ) |
1550×1248×980 |
1550×1670×980 |
1550×2240×980 |
|
Weight(kg) |
180 |
250 |
330 |
|
Matched Power(kw) |
8.8~ 13.2 (12~ 18) |
11~ 18.38 (15~ 25) |
18.38~ 29.4 (25~ 40) |
|
Working Number of Rows |
2 |
3 |
4 |
|
Row Spacing(mm) |
550~ 686 |
550~ 686 |
550~ 686 |
|
Seedling Distance(mm) |
120, 165 , 180 , 225 , 250 , 310 |
||
|
Qualified Rate of Seedling Distance |
≥90% |
≥90% |
≥90% |
|
Ditching Depth(mm) |
60~ 80 |
60~ 80 |
60~ 80 |
|
Fertilize Depth(mm) |
60~ 80 |
60~ 80 |
60~ 80 |
|
Working Depth (mm) |
30~ 50 |
30~ 50 |
30~ 50 |
|
Fertilizer Volume(kg) |
50 |
50 |
50 |
|
Seeding Quantity(kg) |
1.5~ 2.5 |
1.5~ 2.5 |
1.5~ 2.5 |
|
Damage Ratio |
≤1.5% |
≤1.5% |
≤1.5% |
|
Fertilizer Box Volume(L) |
100 |
120 |
160 |
|
Seed Box Volume(L) |
8.5×2 |
8.5×3 |
8.5×4 |
