Quick Details
-
Voltage:
-
380V adjustable
-
Dimension(L*W*H):
-
24000*1500*2200mm
-
Weight:
-
60 kg
-
Application:
-
Poultry Farm
-
Product name:
-
Animal Feed Hammer Mill
-
Name:
-
Grain Crushing Machine
-
Usage:
-
Animal Poultry Livestock Feed Making Machine
-
Function:
-
Milling
-
Raw material:
-
Wheat Bran Hay Grass Straw
-
After-sales Service Provided:
-
After-sales Service
-
Keywords:
-
Grass Crusher
-
Capacity:
-
100---3500kg/h
-
Final product:
-
Animal Feed Poultry Feed Mill
Quick Details
-
Max. Capacity:
-
300-3000kgs/h
-
Place of Origin:
-
SHN
-
Brand Name:
-
Retain
-
Voltage:
-
380V adjustable
-
Dimension(L*W*H):
-
24000*1500*2200mm
-
Weight:
-
60 kg
-
Application:
-
Poultry Farm
-
Product name:
-
Animal Feed Hammer Mill
-
Name:
-
Grain Crushing Machine
-
Usage:
-
Animal Poultry Livestock Feed Making Machine
-
Function:
-
Milling
-
Raw material:
-
Wheat Bran Hay Grass Straw
-
After-sales Service Provided:
-
After-sales Service
-
Keywords:
-
Grass Crusher
-
Capacity:
-
100---3500kg/h
-
Final product:
-
Animal Feed Poultry Feed Mill

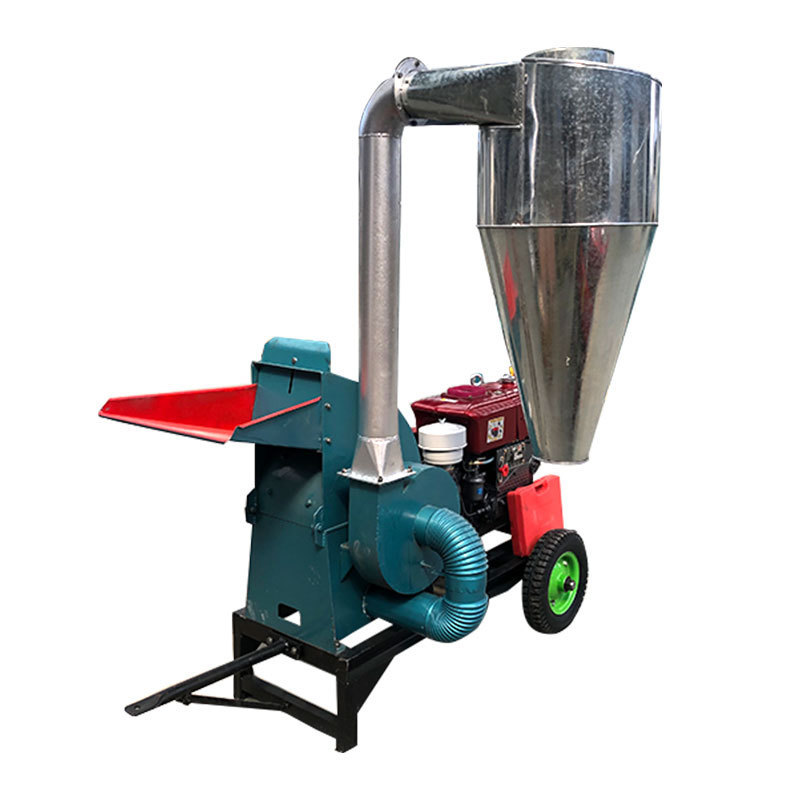

Production Photos:
Farm Feed Crusher
Farm Feed Crusher
Machine Function:
Feed mill effectively solve the problem of easy slip, poor safety and low durability when straw mill is used to feed, mill feeding mechanism, in front of the grass roller set feed roller, fixed knife and its upper department shaped guide pad iron composed of a closed ring, gear gear device is located in the gearbox, gearbox shaft drilling holes, holes in the spring and steel ball, clutch hole positioning slot, gear, The steel ball is stuck in the positioning slot, and the frame is equipped with the transmission and feeding device, the tool holder and the tool, the feeding table and the discharge port. The machine has a novel and unique practical structure, safe and reliable, and high production efficiency.
Product Features:
1.Steel frame, small size, light weight, easy to move.
2.Design the safety device, reduce the gnawing accident, the whole machine is safe and reliable.
3.Straw roller transmission shaft selection of coupling, compact structure, flexible operation, convenient disassembly and assembly.
4.A variety of supporting power options, motor, diesel engine, tractor can be supporting, also suitable for the lack of power areas.
5.The blade is made of high quality steel, super wear-resistant; Adopt high strength bolt, use safe and reliable.
6.The casing is made of thickened steel plate and welded continuously. The whole mold is formed, beautiful and generous, and durable.
Operating Principle
:
Mill is a new type of multi-purpose mill, the series of reasonable structure, durable, safe and reliable, easy to operate, small vibration, high efficiency, less energy consumption. All parts of this machine are made of materials. The whole machine is of reliable quality and durable. The machine is equipped with a rolling bearing spindle at one end of the housing, which is driven by a motor and a turbine fastened on the spindle to rotate at a high speed. The turbine and the grinding block on the screen ring form a reasonable and compact structure, so that the material in the rotating airflow close friction and strong impact grinding, and in the gap between the blade and the grinding block, through the adjustment of the screen to crush the material, and under the action of centrifugal force, through the sieve hole, the fan into the Shakron discharge port from the Shakron base.
If
you have special size requirements can contact customer service, we can be customized.
Production Details
MANGANESE STEEL HAMMER
Manganese steel blade are
65 pieces
, four corners available, wear resistance and long service life
SCALEBOARD
Wear-resistant thickened liner, improve crushing efficiency and capacity
Weighted bearing box, high speed double row bead automatic aligning bearing.
DIESEL MOTOR
High power, strong power, fast heat dissipation, long service life
DUST COLLECTOR
Clean sanitation and environmental protection vacuuming, reduce environmental pollution and safety, centralized recovery of dust,in order to facilitate the growth of animals.
DIFFERENT VERSION FOR CHOOSE
Different motor and model.
Diesel and electric version feeder crushing machine can be used with other equipment to meet the needs of different customers.
|
Farm Feed Crusher Parameter
|
|
|
|
|
|
|
|
|
||||||||
|
Model
|
Crushing capacity
|
Motor power
|
Spindle speed (r/min)
|
Rotor diameter (mm)
|
Grinding chamber width
|
Screen size(mm)
|
Hammer size(mm)
|
Number of hammer
|
||||||||
|
RT-9FQ30-20
|
300-500
|
2.2KW
|
4300
|
300
|
200
|
445*200 595*200
|
105*32*3
|
24
|
||||||||
|
RT-9FQ30-20 With fan (dust collector）
|
300-500
|
2.2KW
|
4300
|
300
|
200
|
445*200 595*200
|
105*32*3
|
24
|
||||||||
|
RT-9FQ36-20（Integrated frame)
|
700-1000
|
5.5KW
|
4200
|
360
|
200
|
600*200
|
120*40*5
|
16
|
||||||||
|
RT-9FQ40-20 (separate frame)
|
900-1200
|
7.5KW
|
4100
|
400
|
200
|
665*200
|
120*40*5
|
16
|
||||||||
|
RT-9FQ42-28 (Separate frame)
|
1200-1500
|
11KW
|
4000
|
420
|
280
|
720*275
|
145*40*5
|
16
|
||||||||
|
RT-9FQ50-28 (separate frame)
|
1500-2000
|
15KW
|
3600
|
500
|
280
|
820*275
|
180*45*5
|
16
|
||||||||
|
RT-9FQ50-40 Automatic feed (single dust Collector,shelf)
|
2000-2500
|
22KW
|
3300
|
500
|
400
|
820*395
|
180*45*5
|
24
|
||||||||
|
RT-9FQ50-50 Automatic feed (double dust collector, shelf)
|
2500-3000
|
30KW
|
3300
|
500
|
500
|
820*495
|
180*45*5
|
22
|
||||||||
|
Remark: Diesel engine, dust collector ,Color, size, voltage, customer requirements can be customized
|
|
|
|
|
|
|
|
|
||||||||
Zaozhuang Retain Manufacturing&International Trading Co.,Ltd
Instroduction
Our company is a leading manufacturer in China with more than 20 years of professional experience.Specializing in Plastic Auxiliary Machinery, Refrigeration and Cooling Equipment, Agricultural Equipment, Take-up Machine and Shears,Bends ,Rolling Machines. The company has set up three factories in Guangzhou, Zhejiang and Jiangsu.We have a professional R & D team and after-sales team, which can fully meet the requirements of different customers, and we will immediately solve the customer feedback problems. our products exported to United States,Italy,Russia,Japan, European countries and are widely praised by global clients
.
FAQ
Are you manufacture?
Sure, We are one of leading manufacturers with 20 years of professional experience in China
Do you have Stock productions to sell?
Yes,it is .But we also offer OEM/ODM service. Please send us your request if you are interested.
What information do you want to know if i want to get a quotation?
a). The model/size of your products.
b). The application for your products.
c). Special package methods if you needs.
d). Raw material.
Do you inspect the finished products?
Yes.Each step of products will be carried out inspection by QC department until shipping
What advantages do you have?
(1) Punctual: Have your orders met with the latest delivery?
We are a manufacturer with so many advanced and new machines. It ensures we have the ability to carry out the production schedual for punctual delivery.
(2) 20years production experience. We have over 20 years experience in this industry.
That means we can preview the problems for the orders and production. Therefore, it will make sure to deduce the risk of bad situation to happen.
(3) Point to point service.
There is two sales departments who will serve you from inquiry to products shipped out. During the process.
