Quick Details
-
Application:
-
Outdoor
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
GIANT gate opener
-
Model Number:
-
JJ-PKM-C023 swing gate opener
-
model:
-
PKM-C023
-
input voltage:
-
24VDC
-
Motor's power:
-
60W*2
-
rotational speed:
-
100PRM
-
rod's running speed:
-
2.4cm/s
-
max single-leaf length:
-
3m
-
max single-leaf weight:
-
200kg
-
environment temperature:
-
-20 to +55 degree
-
protection calss:
-
IP55
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design, Others
-
Application:
-
Outdoor
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
GIANT gate opener
-
Model Number:
-
JJ-PKM-C023 swing gate opener
-
model:
-
PKM-C023
-
input voltage:
-
24VDC
-
Motor's power:
-
60W*2
-
rotational speed:
-
100PRM
-
rod's running speed:
-
2.4cm/s
-
max single-leaf length:
-
3m
-
max single-leaf weight:
-
200kg
-
environment temperature:
-
-20 to +55 degree
-
protection calss:
-
IP55
electric gate system linear actuator 24V DC swing gate opener
electric gate motors, swing gate opener, automatic opener
1. DC24V low voltage moror that is safe and compatible with back up battery.
2. Metal pinion gear driving design with low working noise.
3. Manual release with secure customized key in case of power failure.
4. Soft start and slow stop function.
5. Adjust opening/closing interval time of double gate leaves.
6. Auto-stop if any obstacles detected during operation.
7. Built in max motor running time adjustable for mutiple safety protection.
8. Separately adjust the force of double gate leaves.
9. Single leaf or double leaves operation.
10. Easy installation and low maintence.
11. 12 months guarantee, lifelong post sales service
| Power supply | 220V/110V |
| Motor power | 24VDC 60W*2 |
| Current | 5A |
| Motor speed | 100RPM |
| Actuator running speed | 2.4CM/S |
| Max single leaf width | 3M |
| Max single leaf weight | 200KG |
| Working temperature | -20°C~+50°C |
| Protection class | IP55 |

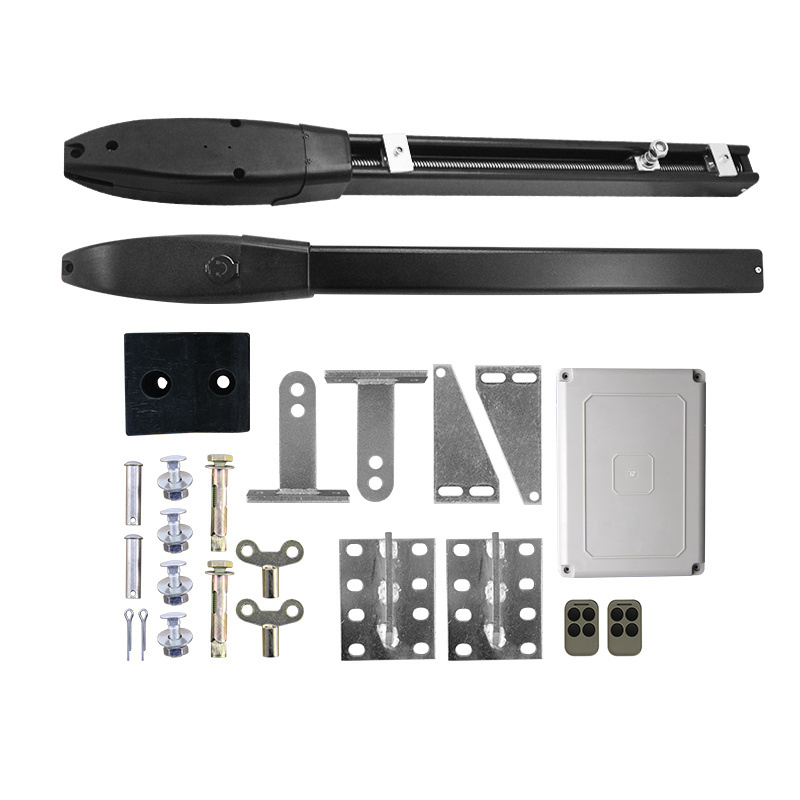

Swing Gate Operators Basic Kit Includes:
* 2 x Stainless steel residential motor ( 1 or 2 depending on single or double gate)
*2 x remote controllers
*1 x control panel
*2 x allen key
*2 x gate brackets
*2 x post brackets
*other installation hardware accessories
Technical Parameters:
1. Control Panel Voltage: AC24V, available for 24 V back up battery.
2. Applicable Range: Suitable for double arms swing gate opener.
3. Encode For transmitter: Our own customized rolling code.
4. Support remote control: Can memorize 120PCS transmitters at most
5. Motor character: 24V DC motor x2
