Quick Details
-
Type:
-
Passive
-
Use:
-
HOME THEATRE, Portable Audio Player, Mobile Phone, Karaoke Player, COMPUTER, Stage, Outdoor, Party
-
Brand Name:
-
ezcap
-
Model Number:
-
ezcap221
-
Place of Origin:
-
Guangdong, China
-
Interface:
-
USB 2.0
-
Aideo Input:
-
Bluetooth, 3.5mm TRS audio jack
-
Audio Output:
-
Speaker, 3.5mm TRS earphone jack
-
Storage Media:
-
Micro SD card and USB drive
-
Record Format:
-
.mp3
-
Record Quality:
-
160kbps
-
Record File:
-
About 1.2MB/Minute, 70MB/Hour
-
Play Format:
-
mp3, ape, flac, wav, wma
-
Speaker:
-
4 ohms 3W
-
Power Supply:
-
1200mAh inside battery,Type-C to USB power cable
Quick Details
-
Battery:
-
Yes
-
Waterproof:
-
NO
-
Speaker Type:
-
Wireless
-
Type:
-
Passive
-
Use:
-
HOME THEATRE, Portable Audio Player, Mobile Phone, Karaoke Player, COMPUTER, Stage, Outdoor, Party
-
Brand Name:
-
ezcap
-
Model Number:
-
ezcap221
-
Place of Origin:
-
Guangdong, China
-
Interface:
-
USB 2.0
-
Aideo Input:
-
Bluetooth, 3.5mm TRS audio jack
-
Audio Output:
-
Speaker, 3.5mm TRS earphone jack
-
Storage Media:
-
Micro SD card and USB drive
-
Record Format:
-
.mp3
-
Record Quality:
-
160kbps
-
Record File:
-
About 1.2MB/Minute, 70MB/Hour
-
Play Format:
-
mp3, ape, flac, wav, wma
-
Speaker:
-
4 ohms 3W
-
Power Supply:
-
1200mAh inside battery,Type-C to USB power cable

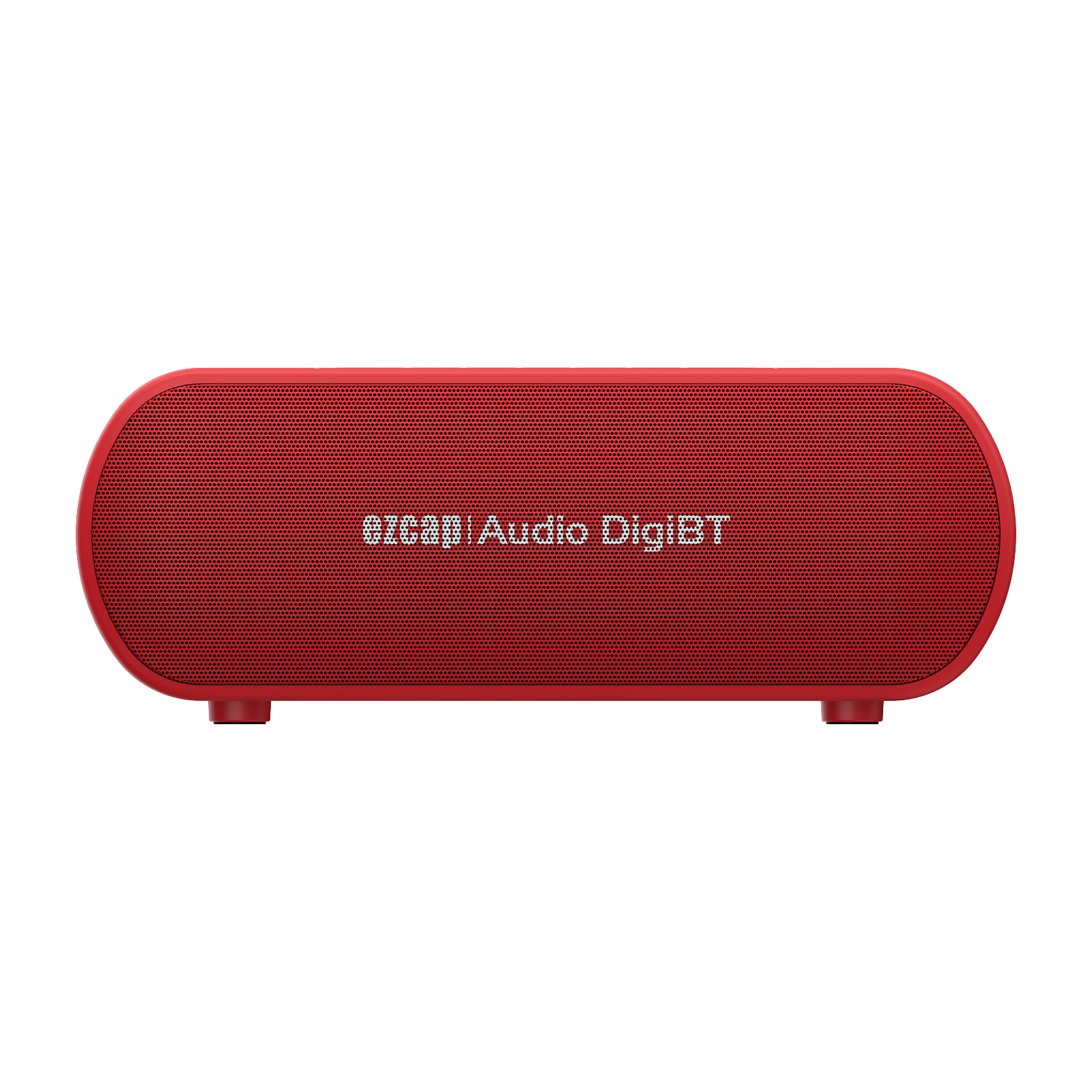

ezcap221 Bluetooth Audio Capture AudioDigiBT Audio Bluetooth Recorder.
You can use this device:
- Recorder audio f rom Bluetooth or Audio line input to digital mp3 files and save in Micro SD card or USB drive.
- Play music through Bluetooth, Audio line input, Micro SD card or USB drive.
Overview
In the Box
ezcap 221AudioDigiBT Audio Bluetooth Recorder x1, Manual x1, Type C to USB-A charge cable x1
P roduct Overview
1, DC5V – Supply 5V /1A D C power with USB-C (Type-C) cable to charge battery
P ower & Charge
Red charge LED will flash when the battery is low, and connect Type-C cable to 5V USB DC adapter to charge , LED will light, and will go off when fully charged.
M icro SD Card / USB drive
For file safety, it is best to empty and format the Micro SD card and USB drive before using . S upport FAT32, exFAT (does not support NTFS) , MAX 64 GB.
It is not recommended to connect Micro SD card and USB drive at the same time.
Switch MODEs
P ower on, default in RECORD mode, and press MODE button can switch to PLAYBACK mode.
Under PLAYBACK mode, if during playing music files, you cannot switch mode directly. Please press PLAY button to stop playing, then press MODE button to switch mode.
The MODE switching sequence is: RECORD mode --- PLAYBACK mode (Play music in USB drive) --- PLAYBACK mode (Play music in Micro SD card).
Start Work
RECORD MODE - P lay and Record Bluetooth or Line In Audio
Keep pre ss POWER button to power on device, and it is in the default RECORD MODE. You can play and record Bluetooth or Line in audio.
Blue B luetooth LED will fast flash, and device is to pairing Bluetooth. Please set the Bluetooth of your audio source device, like your smart phone, and find the device name – ezcap AudioDigiBT, and successfully paired, LED is on. Play the music or video, and you will listen the sound from ezcap221 AudioDigiBT, and LED will slow flash. You also can press PLAY button of device to play or stop playing, and press PREVIOUS or NEXT button to play the previous or next file. (Maybe you need to set the audio source device)
Plu g Micro SD card or USB drive into the slot, and wait a few seconds, then press RECORD button to start recording, the REC/PLAY LED fast flashes. Press again to stop recording, and the recorded files will be saved in Micro SD card or USB drive you plugged into.
Use 3.5mm audio cable to connect audio device (Such as CD player, Cassette player) and LINE IN port of ezcap221 AudioDigiBT, and you will hear the sound. Pressing PLAY button can mute the speaker, but cannot really stop the playing. Press RECORD button to start recording, the REC/PLAY LED fast flashes. Press again to stop recording, and the recorded files will be saved in Micro SD card or USB drive you plugged into.
Note:
1, T he 3.5mm audio cable is not included, please check the accessories of your audio source device or buy it yourself.
2, ezcap221 AudioDigiBT will play the music input from LINE IN when you play the Bluetooth music and plug audio cable into LINE IN port. And you cannot play Bluetooth music until un-plug cable from LINE IN port.
3 , During recording, device will create a DIGIBT folder in the storage, and all recorded files will be saved in the form of file name AD0001.mp3 .
PLAYBACK MODE - Play Recorded Files in Storage
P ress MODE button to switch RECORD MODE to PLAYBACK MODE. ezcap221 AudioDigiBT will automatically play the recorded files in USB drive or Micro SD card.
N ote:
1 , During playing, you cannot press MODE button to switch mode. Please press PLAY button to stop playing, then press MODE button to switch mode.
2 , If you plugged USB drive and Micro SD card at the same time, device will play the music files in USB drive.
3 , The device cannot play music files that are not in the DIGIBT folder. And if there is no DIGIBT folder in the storage and there is no playable music file in the folder, it will cause the mode switch to fail. Need to unplug the storage to solve the problem.
4, Device also can play other music files, but please copy them in DIGIBT folder.
S pecifications
|
|
|
|
Interface |
USB 2.0 |
|
Aideo Input |
Bluetooth, 3.5mm TRS audio jack |
|
Audio Output |
Speaker, 3.5mm TRS earphone jack |
|
U ser Interface |
B utton: POWER/MODE, PREVIOUS, NEXT, VOLUME -, VOLUME +, PLAY, RECORD. Status indicator LEDs |
|
S torage Media |
Micro SD card and USB drive, supports FAT32 and exFAT, does not support NTFS fo rmat, Max 64GB. |
|
R ecord Format |
.mp3 |
|
Record Quality |
160kbps |
|
R ecord File |
About 1.2MB/Minute, 70MB/Hour |
|
P lay Format |
mp3, ape, flac, wav, wma |
|
S p eaker |
4 ohms 3W |
|
W orking Time |
About 2 hours to charge separately, about 5 hours for fully charged recording (Related to playback volume) |
|
P ower Supply |
1200mAh 18650 lithium battery inside, Type-C to USB power cable (Not include 5V power adapter) |
|
Dimensions |
178(L) × 60(H) × 70(H) mm |
|
|
|
