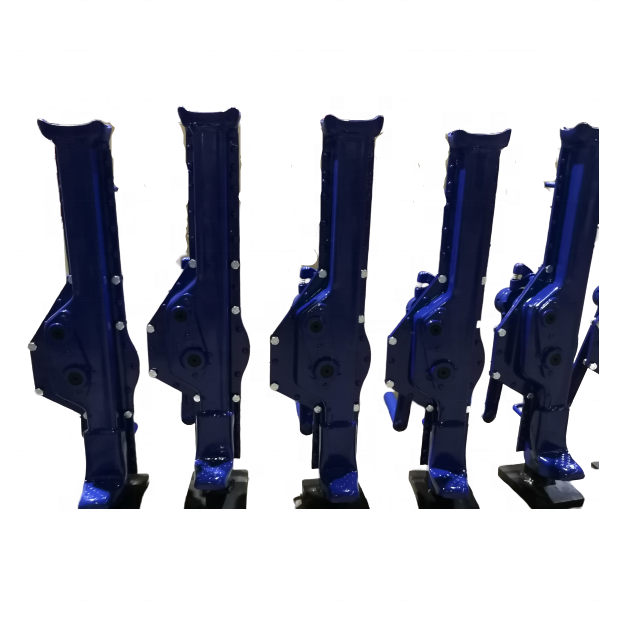

Quality Manural Alloy Mechanical Jack For Lifting in a Competitive Price

Quality Manural Alloy Mechanical Jack For Lifting in a Competitive Price

FOB Reference Price: Get Latest Price

≥10 Pieces

US $30

≥100 Pieces

US $28.9

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Warranty:: 1 Years Years

Product name:: Quality Mechanical Jack

Color:: Customized

Material:: Alloy Steel

Certification:: CE;ISO, Available

Rated Capacity:: 1.5-25 Ton

Power Source:: Manural

MOQ:: 5 PCS

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: Z2.LIFTING

Model Number:: MJK

Warranty:: 1 Years Years

Product name:: Quality Mechanical Jack

Color:: Customized

Material:: Alloy Steel

Certification:: CE;ISO, Available

Rated Capacity:: 1.5-25 Ton

Power Source:: Manural

MOQ:: 5 PCS

Product Description

Application:

The hand winch can be used alone, and can also be used as a component of hoisting, road building, mine hoisting and
other machinery.

It is widely used because of its simple operation, large amount of rope winding and convenient displacement.

It is mainly used for material lifting or flat dragging of buildings, water conservancy projects, forestry, mines, docks, etc.

Features:

1. Hand winches with or without cable / webbing;

2. Working Load Limit (WLL.) from 300kg(66lbs) to 1500kg(3300lbs);

3. Other customized color painted or electrophoresis are also available.

Rated capacity(T)	1.5	3	5	10	16	20	25
Test Load(kN)	18.4	36.8	61.3	122.5	196	245	306.3
Effort to Lift Rated Load(N)	150	280	280	560	640	640	640
Lift Range (mm)	300	350	350	410	320	320	320
Min. Lift Height/F(mm)	60	70	80	85	95	100	110
A(mm)	163	197	189	250	275	275	350
B(mm)	190	200	239	293	320	335	340
C(mm)	273	296	335	498	514	529	538
D(mm)	100	130	140	140	150	150	170
E(mm)	55	60	71	86	78	78	80
G(mm)	110	140	170	170	180	180	200
K(mm)	113	127	127	248	250	250	250
R(mm)	225	250	275	300	300	380	380
N.W.(KG)	13.5	21.2	28.5	46.8	65	75	91

Detailed Images

Packing&Shipping

Generally packed in cartons, customized carton is also available.
