High-performance motor, high-quality copper wire, good heat dissipation and safer. Motor protection rating: IP55. Supports voltage and frequency customized .
- Product Details
- {{item.text}}
Quick Details
-
Applicable Industries:
-
Poultry Farm/Factory, Farms
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YN
-
Dimension(L*W*H):
-
1080*1080*950mm
-
Weight (KG):
-
60 KG
-
After-sales Service Provided:
-
Online support
-
Product name:
-
water air cooling fan
-
Frame:
-
stainless steel or plastic
-
Air volume:
-
18000 m3/h
-
Input power:
-
750/1100W
-
Cooling capacity:
-
120-150 ㎡/pcs
-
Water consumption:
-
20-25 kg/h
-
Function:
-
cooling ventilation
-
Application:
-
factory / farm / warehouse
Quick Details
-
Type:
-
EVAPORATIVE AIR COOLER
-
Mounting:
-
Window/Wall/Ceiling Mount
-
Airflow:
-
18000m3/h
-
Applicable Industries:
-
Poultry Farm/Factory, Farms
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YN
-
Dimension(L*W*H):
-
1080*1080*950mm
-
Weight (KG):
-
60 KG
-
After-sales Service Provided:
-
Online support
-
Product name:
-
water air cooling fan
-
Frame:
-
stainless steel or plastic
-
Air volume:
-
18000 m3/h
-
Input power:
-
750/1100W
-
Cooling capacity:
-
120-150 ㎡/pcs
-
Water consumption:
-
20-25 kg/h
-
Function:
-
cooling ventilation
-
Application:
-
factory / farm / warehouse

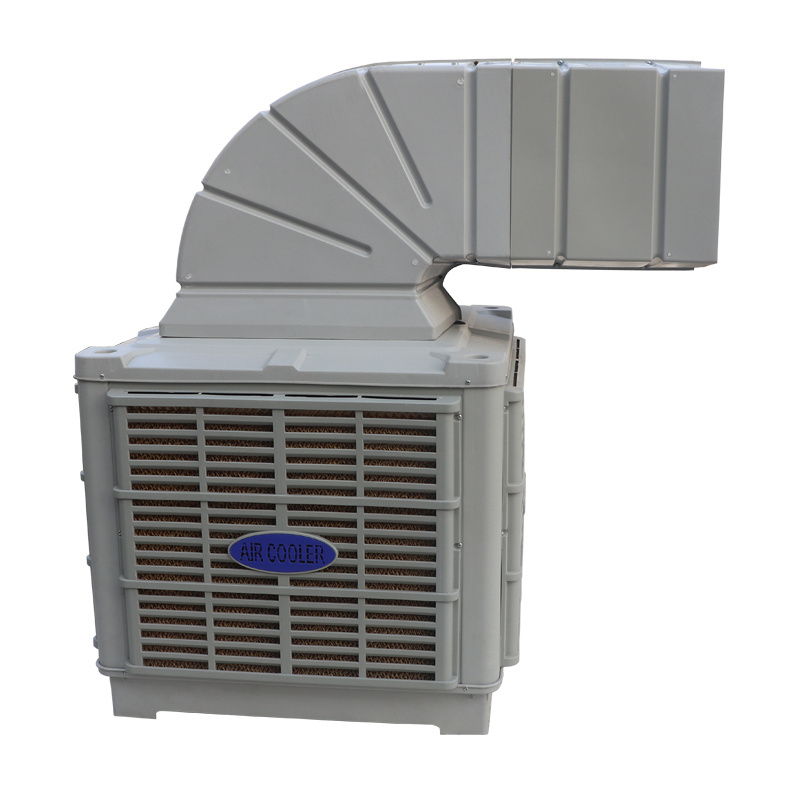

Product Describtion
1. Product Specification
|
Model (plastic)
|
YNC-180
|
YNC-200
|
YNC-220
|
YNC-300
|
|
Air flow
|
18000m3/h
|
20000m3/h
|
22000m3/h
|
30000m3/h
|
|
Power
|
1.1KW
|
1.5KW
|
2.2KW
|
3.0KW
|
|
Noise
|
≤75dB
|
≤80dB
|
≤80dB
|
≤80dB
|
|
Outlet Dimension
|
670*670mm
|
670*670mm
|
670*670mm
|
800*800mm
|
|
Covering Area
|
80-100m2
|
100-120m2
|
150-200m2
|
200-250m2
|
|
Water consumption
|
20-25kg/h
|
20-25kg/h
|
25-30kg/h
|
30-35kg/h
|
|
Dimension(L*W*H)
|
1080*1080*950mm
|
1080*1080*950mm
|
1080*1080*1150mm
|
1300*1300*1180mm
|
Part 1. Motor
Part 2. Fan Blade
A variety of fan blade are aavailable, low noise, high air volume,stable operation.
Part 3. Cooling Pad
Strong water absorption, good evaporation effect, fan outlet temperature is reduced by 6-8℃.
Part 4. Water Pump
Low noise, energy saving.
Part 5. Inlet Float
When the water level reach a floating level, it stops the water suppl
y.
1.The machine body adopts ABS engineering plastics, anti-ultraviolet, anti-corrosion, anti-aging, anti-deformation.
2. The air volume is large, noise is small and energy consumption is low.
3. Adopts high quality national standard copper wire motor, good heat dissipation and high protection grade.
4. The evaporative air cooler is made up of special fiber corrugated honey comb cooling pad with large surface area, high efficiency energy-saving motor, water circulation system, float ball value water replenishing device, housing and electrical components.
