Quick Details
-
color:
-
as picture
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Japan
-
Brand Name:
-
TZ
-
Model Number:
-
TZ-5104
-
color:
-
as picture
-
Certification:
-
CE

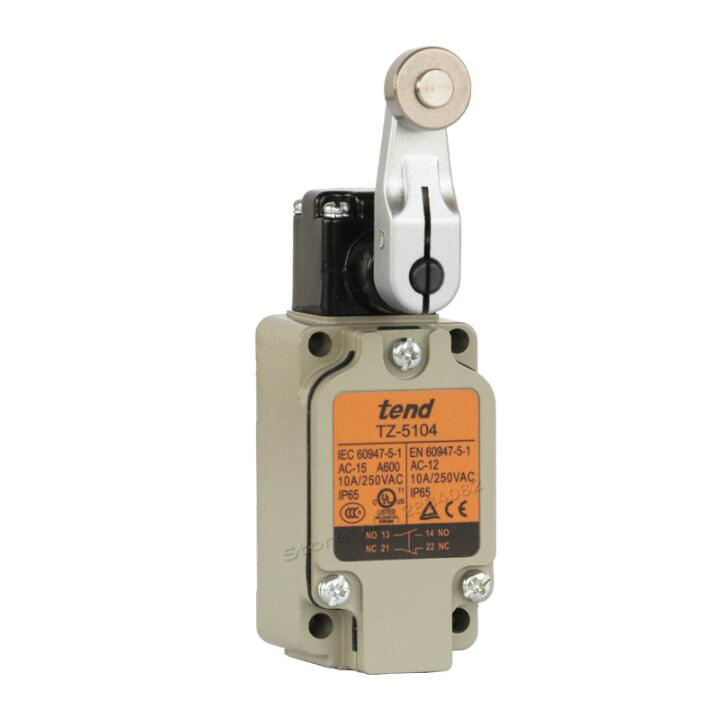

Limit switch sensor TZ-5108 5104 5107 5106 5102 5103 5101/-2/-2N water proof oil proof Micro switch travel switch
| Operation speed |
0.5mm-50cm/sec |
|
Operating frequency |
Mechanical: 120 operations/minute, Electrical: 30 operations/minute |
|
Contact resistance |
25m max. (initial value) |
|
Insulation resistance |
100m min. (at 500VDC) |
|
Dielectric strength |
1000VAC, 50/60HZ for 1 minute between terminals of the same polarity |
|
1500VAC, 50/60 HZ for 1 minute between currentcarrying
|
|
|
1500VAC, 50/60 HZ for 1 minute between each terminal and ground |
|
|
Vibration |
10-55HZ,1.5mm double amplitude |
|
Shock |
Mechanical durable: 1, 000m/Sec2 (about 100GS)
|
|
Ambient temperature |
-5°C to +65°C |
|
Humidity |
<95% RH |
|
Life |
Mechanical: 10,000,000 operations above
|
|
Weight |
About 130 to 190g |
|
Degree of protection |
IP65 |
