Quick Details
-
Filling Accuracy:
-
±0.1
-
Voltage:
-
380V/220V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
U Tech
-
Dimension(L*W*H):
-
4600x1800x2650mm
-
Weight:
-
7000 KG
-
Product name:
-
beverage filling machine
-
Model:
-
RCGF 24-24-6
-
Capacity:
-
8000bph
-
Bottle size:
-
200 -- 2000ML
-
Filling material:
-
beverage or tea
-
Function:
-
Bottle Washing Filling Capping
-
Usage:
-
Beverage Filling Packaging
-
Material:
-
SUS304/316
-
Processing Types:
-
hot filling
Quick Details
-
Machinery Capacity:
-
8000BPH
-
Packaging Material:
-
Wood
-
Filling Material:
-
Juice
-
Filling Accuracy:
-
±0.1
-
Voltage:
-
380V/220V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
U Tech
-
Dimension(L*W*H):
-
4600x1800x2650mm
-
Weight:
-
7000 KG
-
Product name:
-
beverage filling machine
-
Model:
-
RCGF 24-24-6
-
Capacity:
-
8000bph
-
Bottle size:
-
200 -- 2000ML
-
Filling material:
-
beverage or tea
-
Function:
-
Bottle Washing Filling Capping
-
Usage:
-
Beverage Filling Packaging
-
Material:
-
SUS304/316
-
Processing Types:
-
hot filling
Description

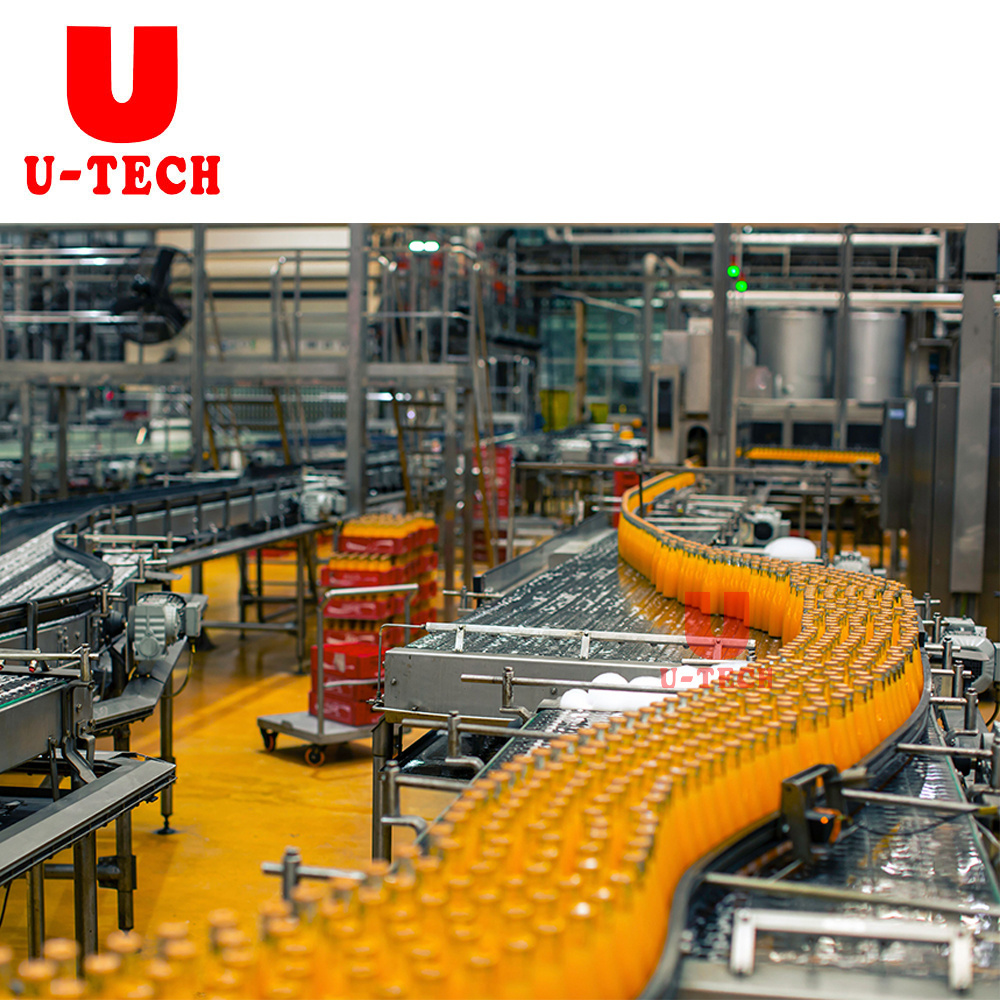

RCGF series juice filling line is used to produce PET bottled juice within the volume from 200ml to 2000ml.different models can satisfy various requirement of output from 1500B/H to 25000B/H.this machine incorporates ringsing,filling and capping into one kind of full-automatic equipment.It is suitable for producing PET and Plastic bottled juice and tea.The method of filling adopts hot filling .The equipment is fitted with advanced Mitshbishi PLC to control the operation and cooperated by frequency converter of the main motor.it makes the operation more stable and reliable.the photoelectric sensor is used to detect operating confitions of each section,which makes the operation of this equipment highly automatic and convenient.
Flow
Sample
Technical Parameters
|
Model
|
RCGF8-8-3
|
RCGF14-12-5
|
RCGF16-16-5
|
RCGF24-24-6
|
RCGF32-32-8
|
RCGF40-40-10
|
|||||
|
capacity(BPH)
|
1500
(500ML)
|
4000
（500ML）
|
5500
(500ML)
|
8000
(500ML)
|
10000
(500ML)
|
14000
(500ML)
|
|||||
|
washing heads
|
8
|
14
|
16
|
24
|
32
|
40
|
|||||
|
filling
heads
|
8
|
12
|
16
|
24
|
32
|
40
|
|||||
|
capping heads
|
3
|
5
|
5
|
6
|
8
|
10
|
|||||
|
suitable bottle
|
PET bottle plastic bottle
|
|
|
|
|
|
|||||
|
diameter of bottle
|
55-100mm
|
|
|
|
|
|
|||||
|
height of bottle
|
150-300mm
|
|
|
|
|
|
|||||
|
suitable cap
|
plastic screw cap
|
|
|
|
|
|
|||||
|
weight(kg)
|
1500
|
2000
|
3000
|
5000
|
7000
|
7800
|
|||||
|
main motor power(kw)
|
1.2
|
1.5
|
2.2
|
2.2
|
3
|
5.5
|
|||||
Machine Details
Control System
|
S/N
|
Name
|
Brand
|
Country
|
|
1
|
Main motor
|
ABB
|
Switzerland
|
|
2
|
Inverter
|
MITSUBISHI
|
Japan
|
|
3
|
PLC
|
OMRON
|
Japan
|
|
4
|
Touch screen
|
MITSUBISHI
|
Japan
|
|
5
|
Contactor
|
SCHNEIDER
|
France
|
|
6
|
Thermo- relay
|
SCHNEIDER
|
France
|
|
7
|
Air-break switch
|
SCHNEIDER
|
France
|
|
8
|
Proximity switch
|
TURCK
|
USA
|
|
9
|
Photoelectric switch
|
BANNER
|
USA
|
|
10
|
Air circuit system
|
SMC
|
Japan
|
|
11
|
Water pump
|
Southern
|
China
|
Related Products
Water Treatment System
The water treatment equipment includes silica sand filter, active carbon filter, sodium-ion exchanger, precision filter, reverse osmosis, hollow fiber filter, ozone generator, ozone mixing tower and water tank, etc.
Blending system
The system include: sugar melting, syrup filter, syrup storage tank, diatomaceous filter, Mixing tank, hot water storage tank,
homogenizer, vacuum de-aerator machine (degassing system) ,ultra-high temperature sterilizer and CIP.
homogenizer, vacuum de-aerator machine (degassing system) ,ultra-high temperature sterilizer and CIP.
UHT sterilizer
UHT Plate type Sterilizer is PLC controlled,with optional capacity from 1t/hr to 15t/hr.The system work in aseptic section and normal section, for the technical require-ments of filling at low temperature,normal temperature and high temperature.
CIP Cleaning
CIP is specially designed for the clean-up of beverage production line and filling equipment, with three cleaning sections of
acid, alkali and heated water.
acid, alkali and heated water.
Bottle Inverse Sterilizer Machine
It is mainly used in sterilizing pet bottle mouth and inside surface of caps.In which has not been disinfected by hot tea,fruit
juice which having been filled in pet bottle.
juice which having been filled in pet bottle.
Colling Machine
This machine can reduce the temperature of hot filling drinks to 36°C-40°C.It is used in carbonated hot tea drinks,juice drinks
and litchi juice production line.
and litchi juice production line.
Dryer
Using high pressure air ventilation, so that high-speed air flow ejected from a slit, the remaining drops of water bottles as much
as possible the body blow it away. Inclination of the slit so that the entire side of the bottle can be high-speed air-blown. The bottle dryer consists of the high pressure air fan, pressure tank, inflatable tube, rack, control devices, and other components.
Laser printer
Laser marking machines handle nearly every industrial marking and DPM (Direct Part Marking) task. Metals, plastics, ceramics, glass etc. are processed efficiently and contact-free. All desired contents are applied repeatedly accurate and reliably: 2D, DMC and alphanumeric codes, simple serial numbers, complex logos, graphics, structures. Depending on the material and application task, the process is laser marking, engraving or deep engraving.
Sleeve Labeling Machine
This machine adopts international advanced technology; cover the circle label on the pet bottle. And then hot shrinking to fix on the position which bottle body designated. This machine's structure is compact, and suitable for the production line of different direction and different height. The machinery part adopts combination designing of modularization, and makes the machine reasonable.
Shrink Packing Machine
The machine is suitable for wrapping of such products as pop top, mineral water , bottles. beer, drinks etc. Working with PE film shrink tunnel to pack the goods perfectly , the whole production process adopts the Germany advanced technics, and the main parts are imported from international famous companies. It consists of seven actuating motor, through cooperation with 7 actuating motor to form the product packed with plastic film and several bottles as a group out from the hot shrinking packing machine.
Machine Running Video
About U TECH
Zhangjiagang U Tech Machine Co., Ltd. is a manufacturer of filling machine and packing with well-equipped testing facilities and strong technical force.With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in beverage and other packing equipment.
Our products include: liquid filling machines (water, fruit juice/tea, carbonated drink, oil, alcohol, plant protein drink, etc.), barreled filling line (3-5 gallon) water treatment machines, labeling & packing machines, semi-automatic /full automatic PET bottle blowing machines, and injection molding machines, extrusion blow molding machines (PP/PE/PVC/PETG/PC...) and accessories for automation: leak tester machines, bottle bag packing machines, conveyor belts.
Our products include: liquid filling machines (water, fruit juice/tea, carbonated drink, oil, alcohol, plant protein drink, etc.), barreled filling line (3-5 gallon) water treatment machines, labeling & packing machines, semi-automatic /full automatic PET bottle blowing machines, and injection molding machines, extrusion blow molding machines (PP/PE/PVC/PETG/PC...) and accessories for automation: leak tester machines, bottle bag packing machines, conveyor belts.
FAQ
Q1:Do you have any reference project?
>> A1:We have reference project in most countries, and you can visit their factories if we get the permission of the customer.
Q2:What's your guarantee or the warranty of the quality if we buy your machines?
>>A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years.
Q3: Do you provide customized service?
>> A3: We will customize the machine according to your needs, materil ,power,filling type,the kinds of the bottles and so on.
Q4:When can I get my machine after I paid?
>> A4:We will deliver the machines on time as the date we agreed both side.
Q5:How can I install my machine when it arrives?
>> A5:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
