Quick Details
-
Place of Origin:
-
Guangdong, China
-
Product name:
-

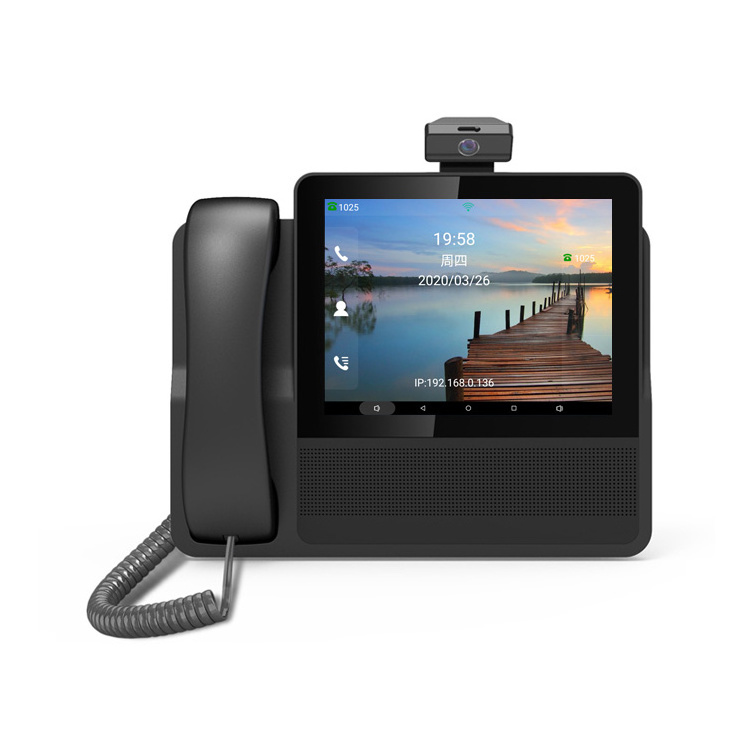

VIDEO Sip Voip Phone
-
Condition:
-
100% Original Brand
-
Function:
-
Conference
-
Certification:
-
ce
Quick Details
-
Type:
-
VoIP Phone
-
Brand Name:
-
PROOLIN
-
Model Number:
-
S09-R
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
VIDEO Sip Voip Phone
-
Condition:
-
100% Original Brand
-
Function:
-
Conference
-
Certification:
-
ce
|
S09-R ( VOIP / PSTN ) |
|
|
Chip platform |
CUP: Rockchips-RK3128, 1GB DDR3 RAM / 8GB ROMG, ARM Cortex A7 |
|
Function description |
Support VOIP phone audio and video calls, 3-party video conference |
|
Operating system |
Android 7.1 |
|
LCD display |
8 inch 1024 * 768 IPS capacitive touch screen |
|
Camera type |
2 million pixels can be blocked and inserted |
|
Video call |
HD 1080P |
|
Built-in WIFI |
802.11 b / g / n, 2.4G / 5G dual-band WIFI |
|
Built-in BT Wireless |
BLE 4.0 |
|
USB 2.0 interface |
* 1 |
|
RJ45 network port |
10 / 100M * 1 |
|
POE |
(optional) |
|
SIP account |
6 lines |
|
Battery |
3000mAh |
|
Hand |
√ |
|
Power supply |
12V input |
|
SIM card type |
X |
|
Recording |
√ |
Features and functions
·Based on the Android native system design, it supports the seamless adaptation of third-party information software, greatly improving the desktop phone information method
·Leading echo cancellation and noise reduction processing, supporting high-definition audio calls
·Support up to 1080P high-definition video two-way calling, industry-leading dynamic video adjustment scheme, real-time adjustment of high-definition call status according to network conditions, especially the unique wireless network high-definition video call processing mechanism under WIFI
Technical Parameters
·8 inch LCD capacitive touch screen design, 1024 × 768 HD resolution
·Security wide-angle lens 2 million pixel high-definition camera
·Built-in 2.4G / 5G dual-band WIFI, built-in BT 4.0 HD audio
·Ethernet interface, USB2.0 interface
·Android 5.1 system (can be upgraded to Android 7.1 system)
·6 SIP lines support
·Support PSTN telecommunication fixed line (optional)
·Voice coding support: PCMU, PCMA, G729, G723, GSM, SILK, G7221, ISAC, spex, ILBC, AMR, opus, etc
·Video encoding support: H.264, H.263, VP8
·Video call resolution support: HD 1080P, HD 720P, 720x480, 352x288
·Echo cancellation: The industry's leading dual-channel hardware echo cancellation
and noise reduction design,
·Support hands-free full-duplex communication
·SIP supports SIP domain
·DTMF mode support: SIP info, INBAND, RTP
·Support custom ringtone
·Multi-language version can be customized, the default is Chinese, the overseas version
defaults to English
·App application flexible call control function: flexible dialing, support hotline number,
blacklist rejection, authenticated call, whitelist, restricted dialing, do not disturb,
handsfree automatic answering, caller ID
·Support up to 1000 records of received calls / missed calls / dial calls
·Support SRTP
·Support SIP 2.0 (RFC 3261), TCP / UDP, can set SIP port, etc.
Other physical parameters
·Power supply: input 100-240V, output 2A / 12V
·Environment: temperature -10 ℃ ~ 50 ℃ humidity 10% ~ 90%
·Packaging accessories: one host, one handle, one power adapter
