Quick Details
-
Weight:
-
1500 KG
-
Color:
-
Customer Requirements
-
Engine:
-
Xichai or Quanchai
-
Implements:
-
disc plough
-
Starting Method:
-
Electricity
-
Cabin:
-
AC or Heater
-
Options:
-
Sun-shade
-
Steering Type:
-
Hydrailic Steering
-
PTO Speed:
-
540/760
-
Application:
-
Ariculture
Quick Details
-
Brand Name:
-
HUABO
-
Place of Origin:
-
Shandong, China
-
Engine Brand:
-
Chinese famous brand
-
Weight:
-
1500 KG
-
Color:
-
Customer Requirements
-
Engine:
-
Xichai or Quanchai
-
Implements:
-
disc plough
-
Starting Method:
-
Electricity
-
Cabin:
-
AC or Heater
-
Options:
-
Sun-shade
-
Steering Type:
-
Hydrailic Steering
-
PTO Speed:
-
540/760
-
Application:
-
Ariculture

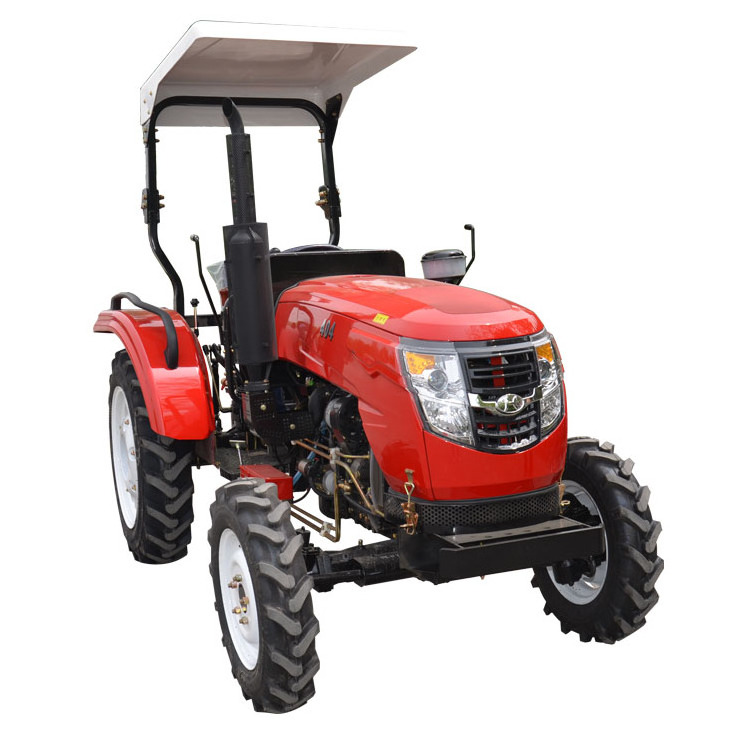

Garden Small 4x4 1250 kg Compact Mini Loader Lawn Tractor With Front End And Backhoe :
| Description for 25-45hp tractor | |||||
| Tractor model | HX254 | HX304 | HX354 | HX404 | HX454 |
| Wheel drive | 4x2/4x4 | ||||
| Dimension(L*W*H) | 3350x1500x1860mm | ||||
| Weight | 1210-1380kg | ||||
| Front wheel Tread | 970,1200,1300mm adjustable | ||||
| Rear wheel tread | 1000,1200,1300mm unlimited adjustable | ||||
| Wheel Base | 1750mm | ||||
| Min Land Clearance | 330mm | ||||
| Gear shifts | TY:8F+2R / TE: 8F+8R | ||||
| Tyre Size | 6.5-16/9.5-24 or 7.5-16/11.2-24 | ||||
| Steering gear | Mechanical or Hydraulic Steering | ||||
| Rear Suspension | Three-point Suspension | ||||
| Engine specification | |||||
| Model | JD2100 | JD/LD 390 | JDM385/LD4L22 | LD4L23/JDM490 | JD490 |
| Type | Water cooled ,Vertical,4 stroke and Direct injection | ||||
| Rated Power(kW) | 18.38 | 22.05 | 25.73 | 29.41 | 33.08 |
| Rated Revolution | 2400 r/min | ||||
| Start Way | Electricity Start | ||||
| Transmission box | (4+1)×2 shifts or 4x2x(1+1) shuttle shifts | ||||
| Clutch | Single stage clutch or Double stage clutch | ||||
| PTO Speed | 6 splined φ35 540/720 | ||||
Weifang Huabo Agricultural Equipment Co.,Ltd. Is established in 1996 which has been invested 51million l ocated in Lebushan Industry park,Weich e ng District, Weifang City,Close to Jiaoji Railway,Qingyin Expressway,And convenient transportation.Covering an area of about 140,000 square meters, it is a modern private enterprise integrating scientific research, production and marketing. The existing staff of more than 2000 people, including 10 technical staff, salers and foreign trade staff more than 20 people, products are sold to all over the world. The company has strong technical force, excellent production equipment, advanced automatic assembly line, and various inspection equipments. The company is always adhered to the "quality is the first, customer is the first" approach to development.
