As an eight year experience manufacturer,we have our own engineer,we keep updating our furnace structure to match the clients
usage.
What's more,own R&D department afford us can do customized equipment.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Henan, China
-
Voltage:
-
220V/50Hz
-
Product name:
-

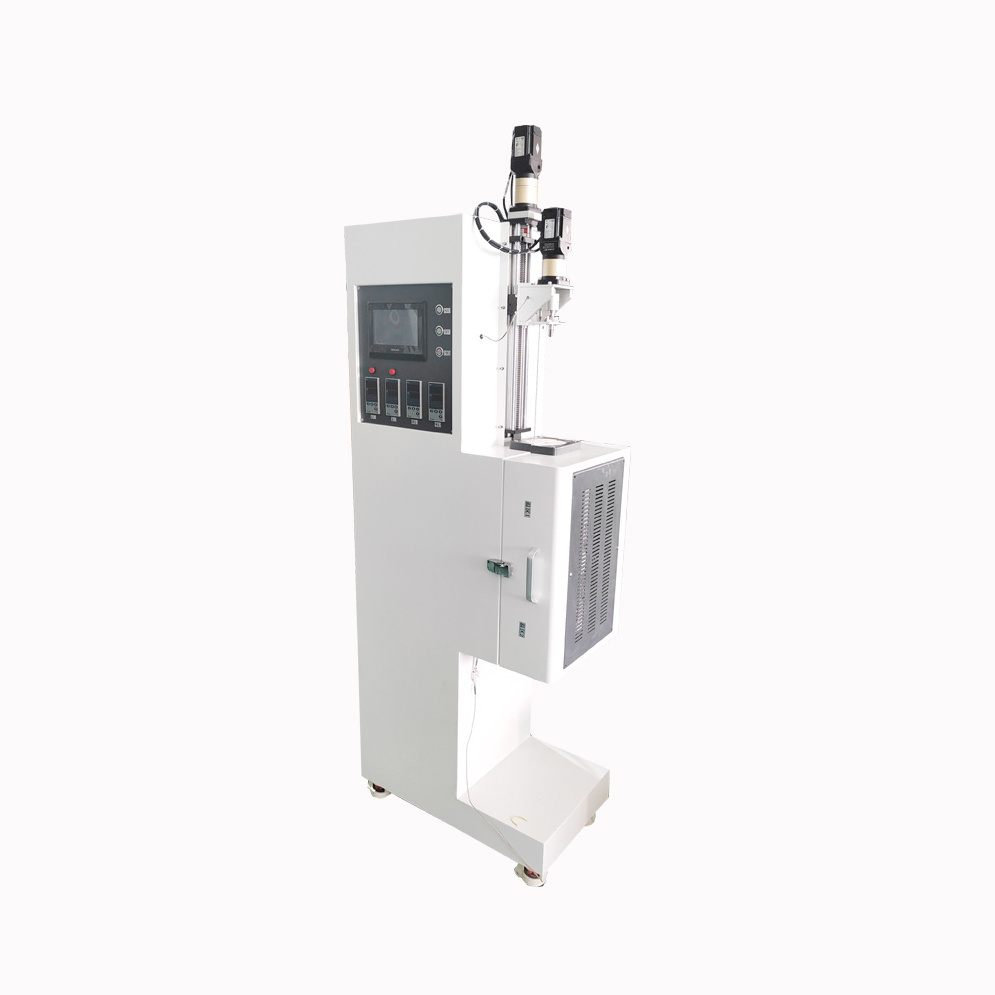

Bridgman Crystal Growth Furnace
-
Max temperature:
-
1200C
-
Working temperature:
-
1150C
-
Heating Rate:
-
0-20C/min
-
Thermal Couples:
-
K types
-
Heating Zone:
-
110+110mm
Quick Details
-
Warranty:
-
1 Year
-
Brand Name:
-
CHENGYI
-
Model Number:
-
CHY-1200B-SCB-I
-
Place of Origin:
-
Henan, China
-
Voltage:
-
220V/50Hz
-
Product name:
-
Bridgman Crystal Growth Furnace
-
Max temperature:
-
1200C
-
Working temperature:
-
1150C
-
Heating Rate:
-
0-20C/min
-
Thermal Couples:
-
K types
-
Heating Zone:
-
110+110mm
Product Description
|
Model No.
|
CHY-1200B-SCB
|
|
Heating Zone Length
|
110+110mm
|
|
Constant Zone Length
|
80mm
|
|
Max Working Temper
|
1150 degree
|
|
Thermocouple
|
K type
|
|
Temperature Accuracy
|
+/-1 degree
|
|
Temper Control
|
PID programmable control
|
|
Heating rate
|
Suggest:10℃/Min
|
|
Heating Element
|
Fe-Cr-Al-Mo wire (OCr27Al7Mo2)
|
|
Dipping speed
|
0.1～50mm/h
|
|
Rotating speed
|
0.1～100r/min
|
|
Dipping distance
|
200mm
|
|
Power Supply
|
AC220/50Hz
|
From Zero to Delivery
Furnace structure design
-
Furnace shelf body welding
After designing,we will process the order to our Sheet metal department. Our engineer will cut and process the sheet metal as the
drawing strictly.
drawing strictly.
Electrical Engineer
Electrical is very important for a furnace.High quality controller parts puraching, CE Certified circuit wire is our raw material.
Delivery &Package
Standard PLY wooden box with protective foam. Can directly delivery to any country without any certification inquiry.
Size Information
Other Model For Option
|
Model No.
|
T1250S
|
T1250A
|
T1260A
|
T1280A
|
|
Quartz Tube Size
|
OD50*600mm
|
OD50*1000mm
|
OD60*1000mm
|
OD80*1000mm
|
|
Heating Zone
|
220mm
|
440mm
|
440mm
|
440mm
|
|
Working Temper
|
1150 degree
|
1150 degree
|
1150 degree
|
1150 degree
|
|
Power Supply
|
AC220V/50HZ
|
AC220V/50HZ
|
AC220V/50HZ
|
AC220V/50HZ
|
Related Products
Packing&Shipping
Standard PLY WOODEN BOX with 5mm Protective Foam
After Sales Service
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
*24 hours contact via: 008615639272359
*Email:elena@chysk.com
Why Choose Us
Company Introduction
Henan Chengyi Laboratory Co.,Ltd was founded in 2013.Our company is a manufacturer and supplier of lab equipment.Our Equipment range include: Tube Furnace, Muffle Furnace, CVD System,PECVD equipment,Plasma Cleaner,Hydraulic press,Lab
grinding polishing equipment, lab ball mill etc. Our product are widely sold to America, UAE, European, South Africa etc. With Own R&D team and factory,we not only can supply standard lab equipment, also,we can do customized as request.We sincerely welcome
worldwide friend come to visit us.
grinding polishing equipment, lab ball mill etc. Our product are widely sold to America, UAE, European, South Africa etc. With Own R&D team and factory,we not only can supply standard lab equipment, also,we can do customized as request.We sincerely welcome
worldwide friend come to visit us.
The Exhibition we attended
FAQ
1.What,s The Maximum Heating Temperature ?
The T1200 serial Tube Furnace Maximum Heating Temperature is 1150 Degree.
2.What ,s The Tube Furnace Quartz tube size ?
We have OD25*600mm;OD50*600mm;OD60*1000mm;OD50*1000mm;OD80*1000mm;OD100*1000mm.
3.Designs We have own R&D Research Department,Customised Request is Avaiable ,If you Have Specail Inquiry ,Please Contact with US
Via :elena(at)chysk.com
4.Other question :
Whats/Facebook:+8615639272359
The T1200 serial Tube Furnace Maximum Heating Temperature is 1150 Degree.
2.What ,s The Tube Furnace Quartz tube size ?
We have OD25*600mm;OD50*600mm;OD60*1000mm;OD50*1000mm;OD80*1000mm;OD100*1000mm.
3.Designs We have own R&D Research Department,Customised Request is Avaiable ,If you Have Specail Inquiry ,Please Contact with US
Via :elena(at)chysk.com
4.Other question :
Whats/Facebook:+8615639272359
