- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
RC-200SV-A
-
Warranty:
-
1 year
-
Certification:
-
CE
-
Output Voltage:
-
12V
-
rotor diameter:
-
0.52m
-
Rated power:
-
200W
-
Rated Voltage:
-
12V
-
Start-up wind speed:
-
2m/s
-
Rated wind speed:
-
12m/s
-
Blade number:
-
10
-
Blade Material:
-
Aluminum Alloy
-
Wheel Height:
-
0.52m
-
Pole connection:
-
flange
-
Flange dimension:
-
DN25
Quick Details
-
Rated Power:
-
200W
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
RexCo
-
Model Number:
-
RC-200SV-A
-
Warranty:
-
1 year
-
Certification:
-
CE
-
Output Voltage:
-
12V
-
rotor diameter:
-
0.52m
-
Rated power:
-
200W
-
Rated Voltage:
-
12V
-
Start-up wind speed:
-
2m/s
-
Rated wind speed:
-
12m/s
-
Blade number:
-
10
-
Blade Material:
-
Aluminum Alloy
-
Wheel Height:
-
0.52m
-
Pole connection:
-
flange
-
Flange dimension:
-
DN25
100-600w vertical wind turbine popular wind turbine generator good price alternative energy generators Specification: wind generator ,wind generators wind turbine
|
Model |
RC-200SV-A |
|
Rated Output |
200W |
|
Peak Output |
210W |
|
Rated Voltage |
12V AC |
|
Start-up Wind Speed |
2.5 m/s |
|
Cut-in Wind Speed |
3.5m/s |
|
Rated Wind speed |
12m/s |
|
Survival Max. wind |
45m/s |
|
Number of Blades |
10 |
|
Rotor Diameter |
0.52m |
|
Blade Material |
Casting aluminum alloy |
|
Generator Type |
3-phase Maglev with high performance Neodymium Magnets |
|
Generator case |
Casting aluminum alloy |
|
Controller Type |
PWM |
|
Net Weight |
14.5kg |
|
Tower Connector |
Flange |
|
Flange Size * |
DN25 |
|
Tower Type * |
Guy Cable Tower |
|
Tower Size * |
3mX2, 60-3mm |
|
Working Temp. range |
from -40°C to 60°C |
|
Product Life |
15 years |
|
Warranty |
1 years |
|
Applications |
on/off-grid solar & wind hybrid system etc. |
|
Measurement |
103*28*30cm |
|
Gross Weight |
17.5kg |

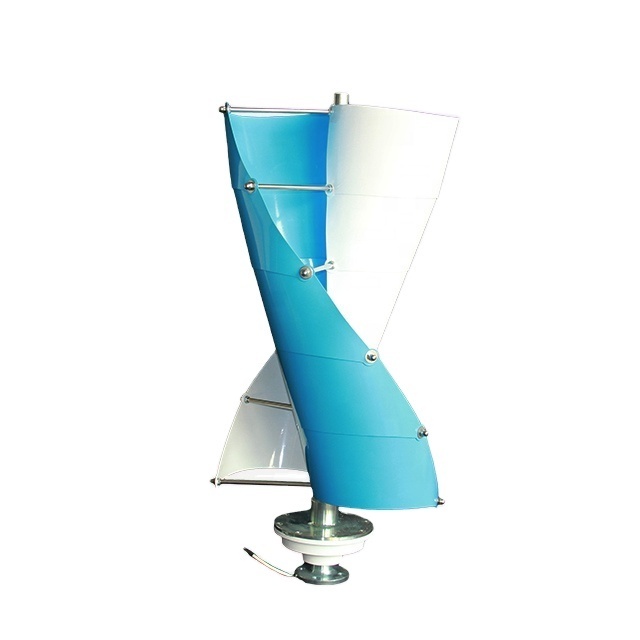

helical wind turbine Details:
200W vertical wind turbine Projects:
