Quick Details
-
Productivity:
-
18M³/H
-
Place of Origin:
-
China, Hunan, China
-
Weight:
-
5880 kg
-
Dimension(L*W*H):
-
6590 * 2100 * 2100mm
Quick Details
-
Power Type:
-
Electric
-
Max. vertical conveying distance:
-
130M
-
Max. horizontal conveying distance:
-
500M
-
Productivity:
-
18M³/H
-
Place of Origin:
-
China, Hunan, China
-
Weight:
-
5880 kg
-
Dimension(L*W*H):
-
6590 * 2100 * 2100mm

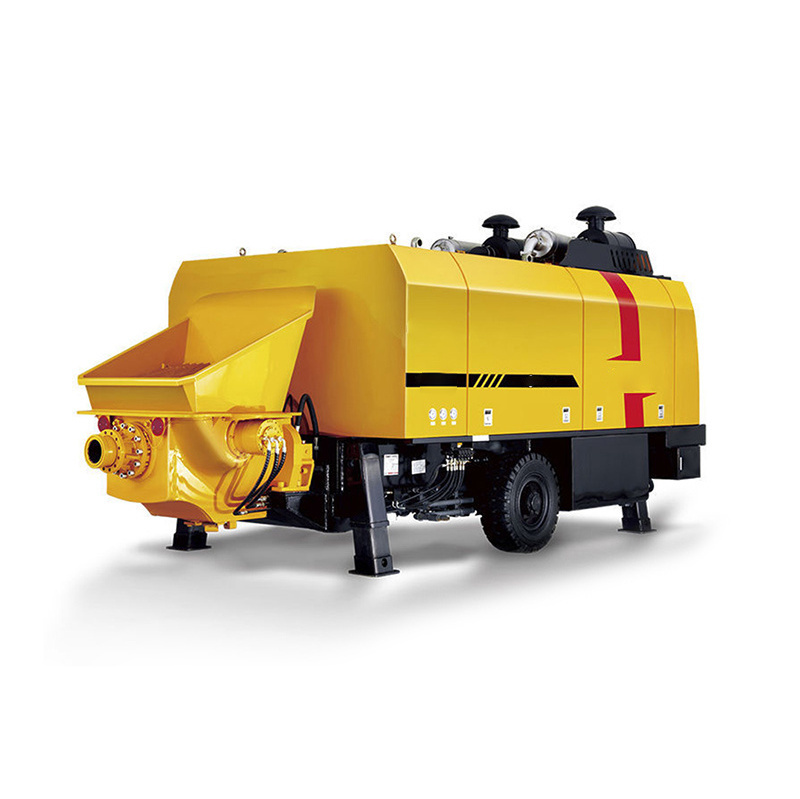

Mobile Concrete Mixer Pump Trailer for Sale
HBT6006A-5 trailer pump has maximum output of 70 cubic meter per hour, equipped with self-diagnosis technology monitoring the pump status at any time as well as diagnosing more than 50 faults in real time. The 70 cubic meter trailer pump is capable of reducing the troubles shooting time by 70%, granting you both time and peace of mind.
Low Costs and Wide Adaptability
Advanced Energy-saving Tech
New-generation energy-saving technology and automatic adjustments of the engine and power based on load makes every drop of fuel produce strong power, reducing 25% of energy consumption.
Wear Resisting Parts
Discharge port, wear plate and cutting ring, concrete piston and delivery cylinder adopt Sino-Germany high-tech materials and advanced technology to greatly improve the product performance.
Wide Adaptability
Capable of operating under any condition from -22°C to 55°C, operating continuously for up to 12 hours, can handle any fluid, pumping of difficult concrete like B90, C150, and 3-gradation concrete and even pump materials such as silt, slag, waste materials, and mortar.
Advanced Hydraulic System
Pressure Difference Sensing & Reversing Hydraulic System
With pressure difference sensing and reversing technology, in addition to electro-hydraulic proportional buffering technology, the pump is able to filter impurities self-cyclically with an open-type system, keeping the hydraulic oil clean and cooled. This helps maximize system efficiency, mitigate abrasion between parts, thereby prolonging the pump's service life and reducing maintenance costs.
Automatically Retracted Double-piston
Only one button is needed to retract two concrete pistons into the water tank. This cuts the time for replacement and maintenance in half, making daily maintenance more convenient.
Large-flow High-efficiency Main Valve System
The system adopts high-pressure, large-flow, and electro-hydraulic precision control main valve, as well as an integrated valve bank with an optimized runner design. The system is able to sport a short reversing time, low pressure loss, cooler temperatures, and high reliability for the user.
Intelligent Control
Back-up System
When the peripheral test loop incurs faults during the construction process, “Compulsory” pump operation can be activated for emergency handling.
Self-diagnosis Technology
This technology is capable of monitoring the pump status at any time as well as monitoring and diagnosing more than 50 faults in real time, reducing the troubleshooting time by 70%, granting you both time and peace of mind.
Improved Performance
Use a dedicated pumping motion controller that integrates a classic pumping algorithm and function libraries, resulting in an increased arithmetic speed and overall improved performance
