Quick Details
-
Type:
-
Wind Power Generator
-
Rated power:
-
5kw
-
Rated Voltage:
-
96v/120v/240v
-
Rated wind speed:
-
11m/s
-
Top net weight:
-
285kg
-
Blade number:
-
3
-
Blade Material:
-
reinforced glass fiber
-
Warranty:
-
3 years
-
Working temperature:
-
-40°C - 80°C
-
Generator case:
-
Carbon steel
-
Certificate:
-
CE, ISO14001, ISO 9001, TUV
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Naier
-
Model Number:
-
NE-5K
-
Type:
-
Wind Power Generator
-
Rated power:
-
5kw
-
Rated Voltage:
-
96v/120v/240v
-
Rated wind speed:
-
11m/s
-
Top net weight:
-
285kg
-
Blade number:
-
3
-
Blade Material:
-
reinforced glass fiber
-
Warranty:
-
3 years
-
Working temperature:
-
-40°C - 80°C
-
Generator case:
-
Carbon steel
-
Certificate:
-
CE, ISO14001, ISO 9001, TUV

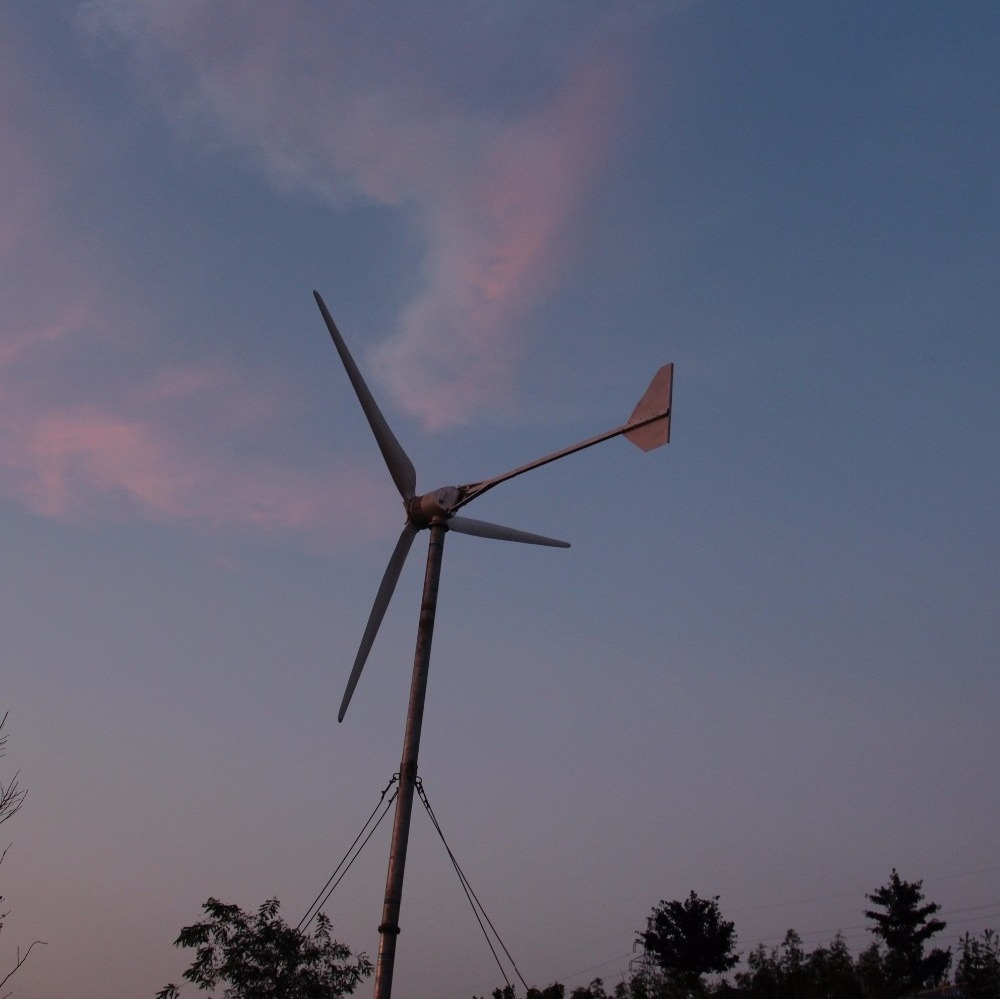

5KW Wind Turbine System
5KW W ind Turbine System Parameters
|
M odel |
NE-5k |
|
Rated power |
5kW |
|
Maximu m power |
5.5kW |
|
Rated voltage |
96/120/240V |
|
Start-up wind speed |
2.5m/s |
|
Rated wind speed |
11m/s |
|
Survival wind speed |
45 m/s |
|
Wheel diameter |
6.1 m |
|
Guy cable tower height |
9m |
|
Noise at max power |
less than 50db |
|
Brake |
by controller |
|
Electricity produced per day |
about 40% efficient 4 hours |
|
Number of blades |
3 |
|
Blades material |
Reinforced glass fiber |
| G enerator type | 3 phase permanent magnet AC generator |
| M agnet material | NdFeB |
| Generator case | Carbon steel |
| Speed regulation | Automatically adjust windward direction |
|
Certificates |
CE, ISO14001, ISO 9001, TUV |
|
Gurantee |
3 y |
|
Top net weight |
285kg |
|
Packaging |
105*58*58cm 320*33*43cm 89*82*13cm |
|
Unique features |
Quietest Turbine in the Industry
Maintenance free
Easy installation
|
5KW W ind Turbine System
5KW W ind Turbine Power Curve
5KW W ind Turbine Wheel Diameter
5KW W ind Turbine Detail
5KW W ind Turbine Projects
Our mission
Our Mission is to facilitate your renewable energy projects with in depth knowledge, quality products and project support.
In time, within budget, without surprises.
