Quick Details
-
Brand Name:
-
Unionwell
-
Model Number:
-
G10 series
-
Max. Current:
-
0.1A~3A
-
Operating Temperature:
-
40 ~+85
-
Protection Level:
-
IP00
-
Product name:
-

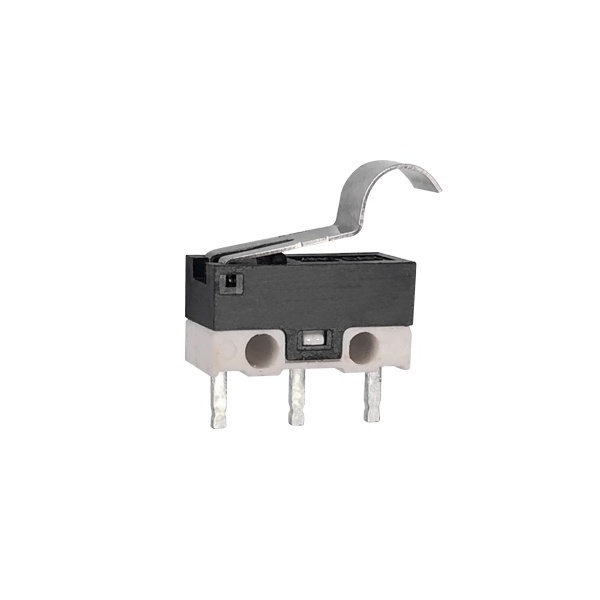

3A PCB Terminal Micro Switch
-
Electrical life:
-
60,000 ~ 100,000cycles (Depend on Part No.)
-
Mechanical life:
-
1,000,000cycles
-
Operating force:
-
300gf max w.o lever
-
Terminal:
-
Various terminals
-
Function:
-
SPDT
-
Lever type:
-
various Lever
-
Application:
-
Auto Electronics,Air conditioner,communication,tooth brush,toys etc
-
ralated words:
-
3A Switch,PCB Terminal Micro Switch
-
Certification:
-
ENEC,ISO,CQC,RoHS, REACH
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
125/250VAC,48VDC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Unionwell
-
Model Number:
-
G10 series
-
Max. Current:
-
0.1A~3A
-
Operating Temperature:
-
40 ~+85
-
Protection Level:
-
IP00
-
Product name:
-
3A PCB Terminal Micro Switch
-
Electrical life:
-
60,000 ~ 100,000cycles (Depend on Part No.)
-
Mechanical life:
-
1,000,000cycles
-
Operating force:
-
300gf max w.o lever
-
Terminal:
-
Various terminals
-
Function:
-
SPDT
-
Lever type:
-
various Lever
-
Application:
-
Auto Electronics,Air conditioner,communication,tooth brush,toys etc
-
ralated words:
-
3A Switch,PCB Terminal Micro Switch
-
Certification:
-
ENEC,ISO,CQC,RoHS, REACH
Mini Micro Switch with Lever 0.1A 3A for Electrical Tools and Door Lock Door Switch
Feature
-Small compact size
-Global safety approvals
-Long life and high reliability
-Variety of actuator and terminals
-High rating to 10(2)A, 1/4HP
-Customized Designs
-Widely used in Auto control, Appliance control and Industrial Control etc.
Drawing
| Rating | P1 | 0.1A 48VDC/125VAC ( Gold plated optional ) | ||||||||
| 03 | 1A/3A 125VAC | |||||||||
| Operation Frequency |
|
10 ~ 30 cycles/min | ||||||||
| Mechanical | 120 cycles/min | |||||||||
|
Contact Resistance(Initial Value) |
100mΩ Max ( Depends on P/Ns) | |||||||||
| Insulation Resistance | 500VDC At 500VDC , 100MΩ Min. | |||||||||
| Dielectric Strength | AC 600V RMS ( 50-60Hz ) | |||||||||
| Storage Temperature | -40°C ~ +85°C | |||||||||
| Storage Humidity | 85%RH Max | |||||||||
| Service Life | Electrical | 6,000 ~ 50,000 cycles ( Depends on P/Ns ) | ||||||||
| Mechanical | 1,000,000 cycles | |||||||||
| Weight | About 0.5g(Straight PCB type without lever) | |||||||||
| Material | Gold plated/Silver Plated/Ag Contact | |||||||||
-Phone -Pump
-Air-conditioner -Toy Car
-Computer -Home Appliance
-Game Controller
