Quick Details
-
Size:
-
optional
-
Material:
-
steel, wood, foam, fabric, plastic
-
Brand name:
-
JUYI
-
Type:
-
electrical telescopic bleacher
-
Certificate:
-
CE TUV
-
Chair:
-
HDPE
-
Operation:
-
manual or electrical
-
Remote control:
-
Yes
-
Structure:
-
steel frame with powder coating
Quick Details
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
JUYI
-
Model Number:
-
JY-769
-
Size:
-
optional
-
Material:
-
steel, wood, foam, fabric, plastic
-
Brand name:
-
JUYI
-
Type:
-
electrical telescopic bleacher
-
Certificate:
-
CE TUV
-
Chair:
-
HDPE
-
Operation:
-
manual or electrical
-
Remote control:
-
Yes
-
Structure:
-
steel frame with powder coating

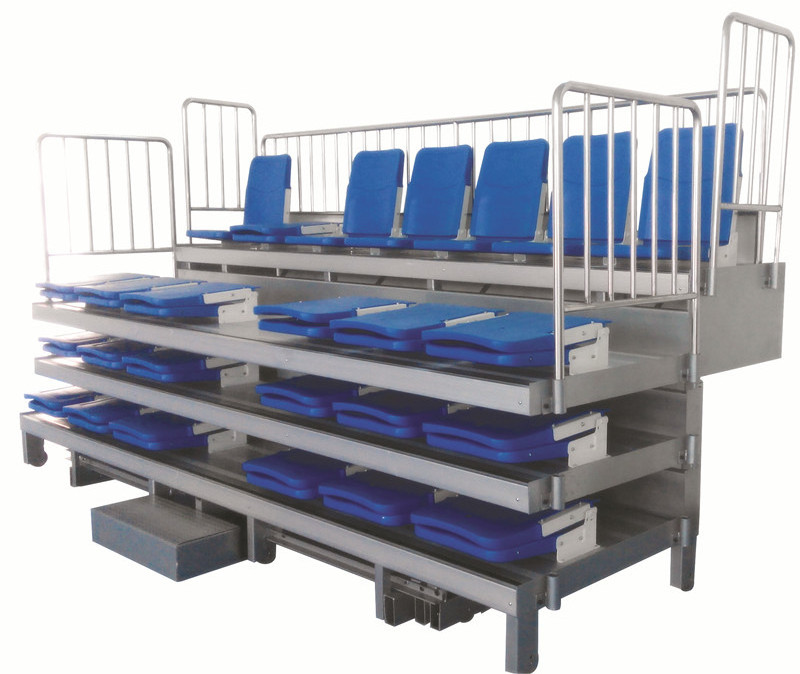

JUYI Manual or electrical telescopic grandstand system retractable seating with foldable chair JY-769
Introduction of telescopic/retractable bleacher
Telescopic seating system is widely used in variety spaces like stadiums , TV studios and all kinds of multifunctional
places with its advantage in space saving.
You can enjoy all events sitting on the comfortable telescopic stand when it's pulled and extended in a shape of steps.
When it is closed, you can save a lot of spaces, and carry out other activities.
Our telescopic stand is driven by manual and electric ,with the great structure design ,beautiful style, reliable safety
measures and accurate locations.
Easy operation , convenient maintenance, low noise are advantages of the telescopic seating system.
Specifications for chairs fixed on the bleacher
| SOFT CHAIRS | PLASTIC CHAIRS |
| 1.Fabric chair with molded foam, steel structure and spring in foam(some type) | 1.100% raw HDPE OR PP materials |
| 2.Rise mounted type or floor mounted type | 2.Bucket chair, bench chair or foldable chair with rise mounted or floor mounted type |
|
3.Powder coated steel leg frame,Solid wood armrest painted with optional color |
3.Brackets or metal leg dealt with powder coating to support the chair |
| 4.Tablet on the backrest is optional | 4.Foldable chair could be with cushion on the back and seat |
| 5.Fabric colors is optional from color swatch |
5.Colors is optional from the plastic color swatch |
| 6.Center distance: 500,520 or 550mm |
6.Center distance: 455,460-480,500mm |
Structures of the telescopic seating system
1. Accordingly to grandstand dimensions, different types of steel profiles are used.It can be manual or motorized through electric engines working at 380V or 220V or by means of small tractors hooked to the structure.
2. The load distributor is a device specially created to reduce the concentrated load transmitted to the flooring system. A special spring system allows to the "unloaded" grandstand to "float" over the wheels.
3. When the grandstand is "loaded" the springs are compressed and the load distributor start working resting over the floor. Detail of the ground fixing system of the last row by means of floor or wall fixing dowels.
4. Traveling wheel shelf is made of 100mmx50mmx3mm rectangle tube, metal material: Q235A; Pillar is made of 3mm Cold-Roll Steel Sheets and Cold Roll Forming, metal material : Q235A.
Specifications for the system
Moving speed: 100mm/s
Location Accuracy: +_30mm
Driving Motor power: 0.37-1.1kw
Power: AC 380V 50-60HZ(AC 220V 50-60HZ)
Lateral Depth of the steps: 800-930mm; 1800-1850mm
Allowed dynamic load in the step surface: 300kg/
Load of bottom wheel:
≥
300kg/piece
Terms
MOQ:100 seats
Delivery Time:about 20-40 working days according to different quantities
Payment Terms: T/T, L/C
Port of delivery:Chongqing,China
