Quick Details
-
Power:
-
advisory service
-
Dimension(L*W*H):
-
advisory service
-
Weight:
-
1500
-
Name:
-
water tank making mahine
-
Function:
-
Plastic Products Making
-
Color:
-
Customized Color
-
Arm style:
-
2 Straight Arms
-
Control systerm:
-
Touch Interface
-
Delivery Time:
-
35 days
-
Packing:
-
Stantard Export Wooden Box
-
MOQ:
-
1 Set
-
Service:
-
Lifetime service
-
Certification:
-
CE,ISO9001
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
yingchuang
-
Voltage:
-
220V,380V,440V
-
Power:
-
advisory service
-
Dimension(L*W*H):
-
advisory service
-
Weight:
-
1500
-
Name:
-
water tank making mahine
-
Function:
-
Plastic Products Making
-
Color:
-
Customized Color
-
Arm style:
-
2 Straight Arms
-
Control systerm:
-
Touch Interface
-
Delivery Time:
-
35 days
-
Packing:
-
Stantard Export Wooden Box
-
MOQ:
-
1 Set
-
Service:
-
Lifetime service
-
Certification:
-
CE,ISO9001
Product Description

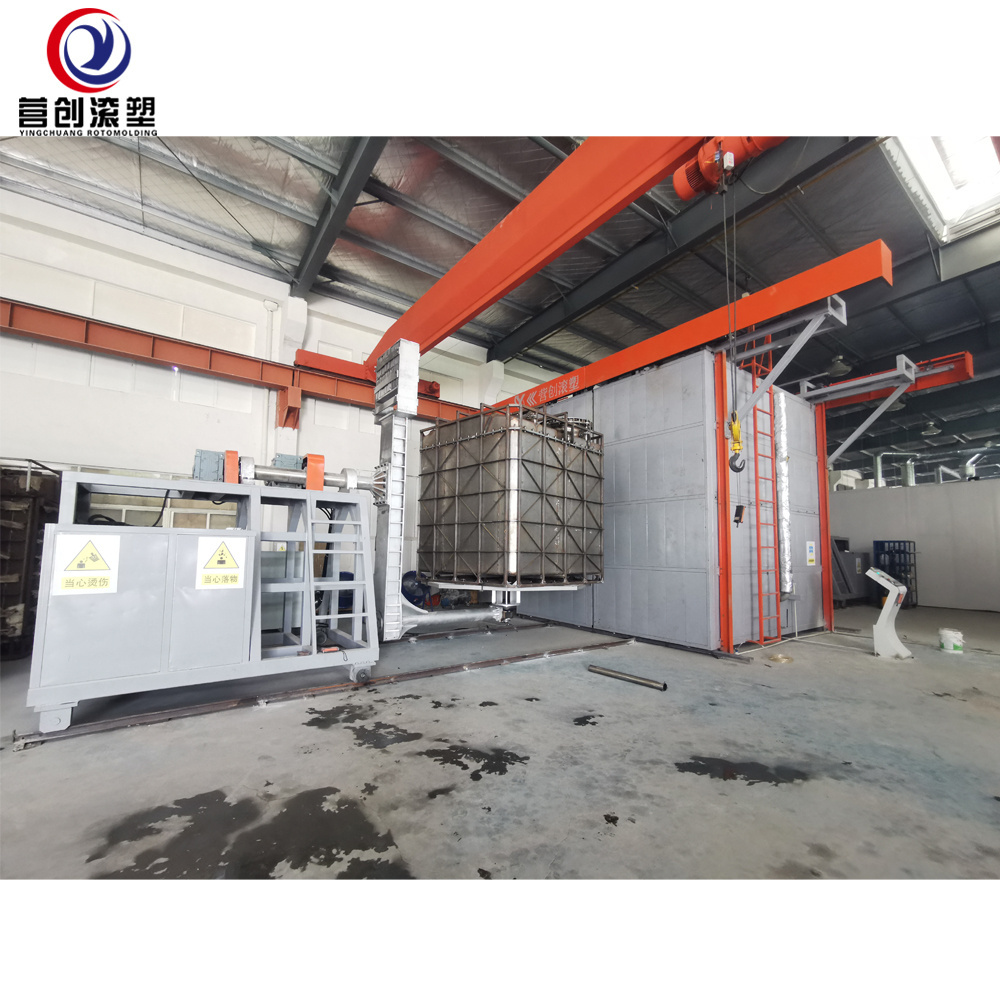

SHUTTLE ROTOMOLDING MACHINE
Our Shuttle machine special suitable for production not mass quantity or large scale products; It is the best choice to produce different orders in the same time on the same machine; such like moulds needed to change during the process of production,or there are big difference thickness bring by the two arms, or the molding time difference because of the shape differences.
Application:Such like Water Tank,Oil Tank, Lampshade, Urea Tank, Inspection Well, Roadblocks, Float, Auto Parts, Kayak, Boat, Trough, Calf Barn, Septic Tank and so on.
Assemble with Straight-arm,L style offset arm or C style offset arm to choose.
Heat Source: Natural Gas, Liquefied Gas or diesel oil.
High effective and thermal insulated of heating chamber low energy consumption.
Each work arm runs independently, non-interfering.
Interlock function to ensure safe and stable operation.
Real-time monitoring the temperature of heating chamber to bring high quality products.
Process formula can be storing,convenient for production management.
Touch interface with multiple functions is reasonable and easy to operate.
Breakdown self check,easier maintenance. Remote fault diagnosis can be realized.
Fully automatic PLC control system: Easy operation and also save both time and effort,enhance productivity.
Specification
|
Model No
|
Floor Size
|
|
|
|
Biggesttank made
|
|||
|
|
L(m)
|
W(m)
|
H(m)
|
Operation platform
|
|
|||
|
CS-2A-1000
|
4
|
2.8
|
2
|
×
|
150L
|
|||
|
CS-2A-1600
|
8
|
3.6
|
2.8
|
×
|
500L
|
|||
|
CS-2A-2000
|
10
|
4.6
|
3.2
|
×
|
1000L
|
|||
|
CS-2A-2500
|
12.5
|
6.2
|
4
|
√
|
2500L
|
|||
|
CS-2A-3000
|
14
|
7
|
4.2
|
√
|
4500L
|
|||
|
CS-2A-3500
|
16.5
|
8
|
4.5
|
√
|
7000L
|
|||
|
CS-2A-4000
|
17.5
|
9
|
5.2
|
√
|
10000L
|
|||
|
CS-2A-4500
|
19
|
10
|
5.9
|
√
|
14000L
|
|||
|
CS-2A-5000
|
21
|
11
|
6.5
|
√
|
20000L
|
|||
|
CS-2A-5500
|
23
|
12
|
7
|
√
|
25000L
|
|||
|
CS-2A-6000
|
24.5
|
13
|
7.2
|
√
|
35000L
|
|||
|
CS-2A-6500
|
27
|
15
|
8
|
√
|
40000L
|
|||
|
CS-2A-7500
|
32
|
17
|
9.5
|
√
|
50000L
|
|||
