1)High effciency,heating up quickly
2)Safety, electricity insulation
3)Corrosion resistance to many acids and alkalis
4)High temperature resistance
5)Good low temperature startting
6)Long service life
7)Good stability and power accuracy
8)High strength,toughness and hardness
9)Samll size and light weight
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
VINSON
-
Dimension(L*W*H):
-
120mmx17mmx4mm or customized
-
Weight:
-
0.5 KG
-
Working Temperature Range:
-
0 - 1200 ℃
-
Core Components:
-
silicon nitride igniter
-
surface watts density:
-
25w/cm2
-
working temperature:
-
1200C
-
Thread:
-
With or w/o
-
Heating Wire:
-
NiCr80/20
-
color:
-
black
-
Flexural Strength:
-
800mm
-
wire length:
-
300mm
-
Dimension:
-
120*17*4mm
Quick Details
-
Type:
-
Air Heater
-
Power Source:
-
Electric
-
Voltage:
-
12-480v, 220-240V, 220-240V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
VINSON
-
Dimension(L*W*H):
-
120mmx17mmx4mm or customized
-
Weight:
-
0.5 KG
-
Working Temperature Range:
-
0 - 1200 ℃
-
Core Components:
-
silicon nitride igniter
-
surface watts density:
-
25w/cm2
-
working temperature:
-
1200C
-
Thread:
-
With or w/o
-
Heating Wire:
-
NiCr80/20
-
color:
-
black
-
Flexural Strength:
-
800mm
-
wire length:
-
300mm
-
Dimension:
-
120*17*4mm
Product Description
220v 1500w silicon nitride ceramic solar water heater electrical heating element with 1" thread

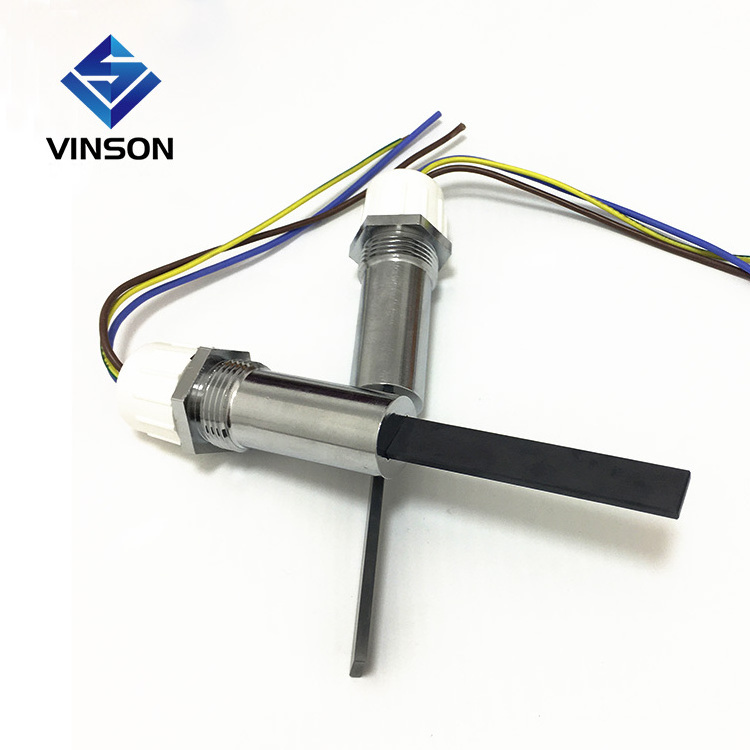

VINOSN's silicon nitride igniters are normally rectangular in shape. These igniters have a lot operation zone up to 1000 degree C . and a cold zone in the contact area. Encapsulated terminal can prevent short circuit caused by conductive contamination. They can be operated with or without a controller. Silicon nitride igniters have several times the durability than that of silicon carbide products.
Dimension , power and input voltage are customizable according to your requirement.
|
MODEL
|
Dimension
|
|
|
|
|
|
|
Paramete
|
|
|||||||
|
|
L
|
LH
|
WH
|
LA
|
WA
|
DA
|
DH
|
Voltage(V)
|
Wattage(W)
|
|||||||
|
TH95
|
95
|
58
|
17
|
23
|
25
|
12
|
4
|
AC220-240
|
400/300
|
|||||||
|
TH128
|
128
|
84
|
17
|
23
|
25
|
12
|
4
|
AC220-240
|
600/400
|
|||||||
|
TH138
|
138
|
94
|
17
|
23
|
25
|
12
|
4
|
AC220-240
|
600/400
|
|||||||
|
TH191
|
191
|
130
|
17
|
23
|
25
|
12
|
4
|
AC220-240
|
900/600
|
|||||||
|
TH220
|
220
|
155
|
23
|
23
|
31
|
12
|
4
|
AC220-240
|
1000/700
|
|||||||
Silicon Nitride igniter can heating up to 800 to 1000degree within tens of seconds. Silicone Nitride ceramic can sustain corrosion of melting metals. With proper instatllation and igniting process , the igniter can server several years.
Certifications
Detailed Images
Advantages of Silicon Nitrid Igniter:
Application of Silicon Nitrid Igniter:
1.Ignition of solid fuels (e.g. wood pellets)
2.Ignition of gas or oil
3.Ignition of exhaust fumes
4.Heating of process gases
5.Pyrotechnics
6.Brazing machines
7. Heater for corrosive atmosphere
8.R&D - laboratory equipment, measuring and testing
equipment, reactors
