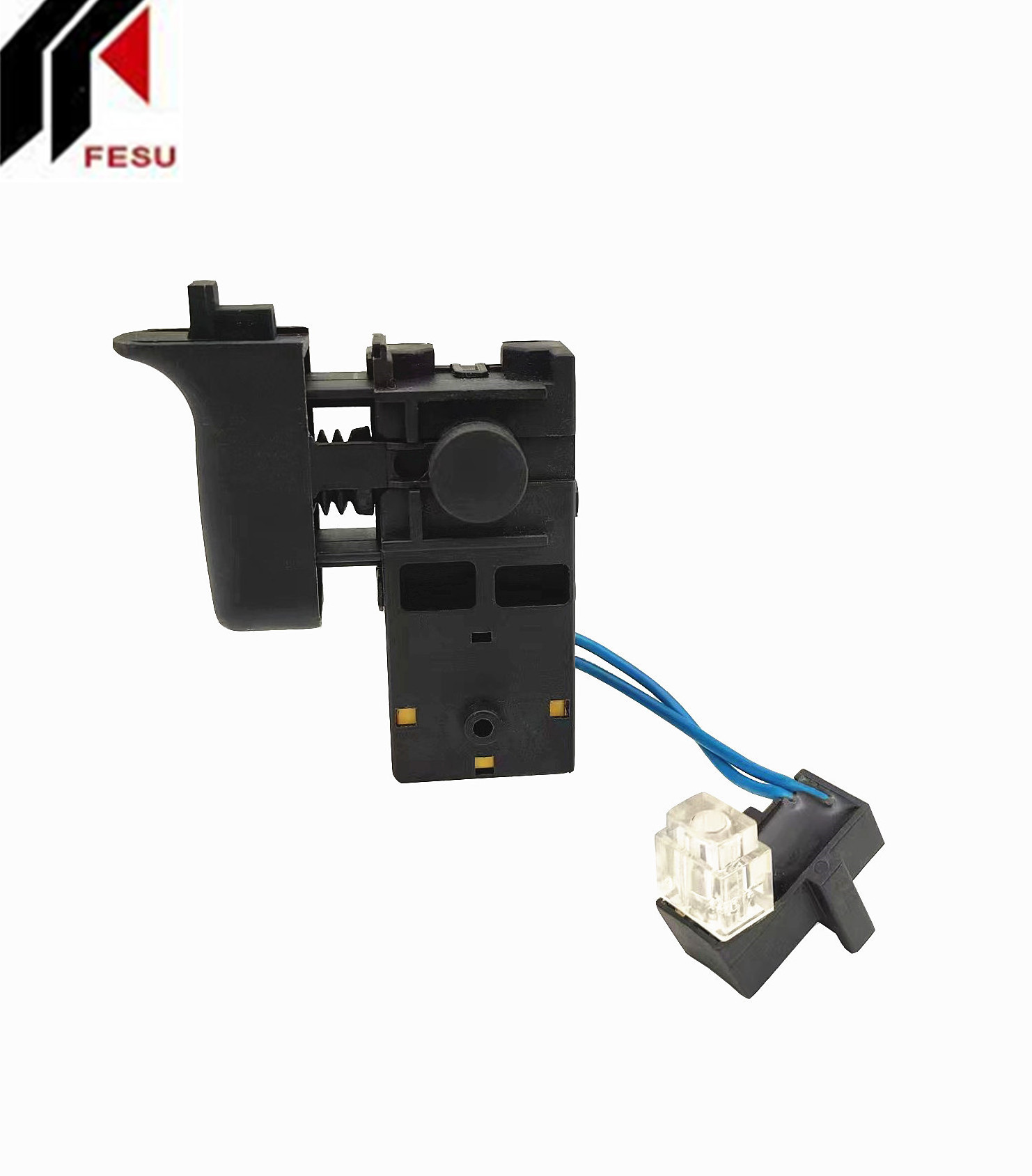

- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
FESU
-
Model Number:
-
FS059-01
-
Material:
-
copper and nylon
-
contact system:
-
Spoon
-
Technical paramete:
-
4(3)A 250V-5E4 6(6)A 250V-5E4
-
installation:
-
push-in terminals
-
OPTIONAL PILLAR TERMINAL:
-
M3
-
Certification:
-
CE, CQC, TUV
Quick Details
-
Customized support:
-
OEM, ODM, OBM
-
Warranty:
-
50000 cycles
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FESU
-
Model Number:
-
FS059-01
-
Material:
-
copper and nylon
-
contact system:
-
Spoon
-
Technical paramete:
-
4(3)A 250V-5E4 6(6)A 250V-5E4
-
installation:
-
push-in terminals
-
OPTIONAL PILLAR TERMINAL:
-
M3
-
Certification:
-
CE, CQC, TUV
Product Description
| Rotary hammer switch component materials: | 1.Acutator: | Nylon |
| 2.Housing: | Nylon | |
| 3.Spring: | Iron | |
| 4.Other component: | Copper | |
| Rotary hammer switch electrical features: | 1.Optional rated current: | 4A, 6A or 8A |
| 2.Optional rated voltage: | 125V or 250V | |
| 3.Frequency: | 50/60HZ | |
| 4.Switch power rate: | adjustment depend on machine | |
| 5.Electrical life: | 50000 cycles | |
| Mechanical features: | 1.Speed control: | With electroinics for variable speed control |
| 2.Speed-adjusting range: | Upon the usrers demand | |
| 3.Optional by-pass contact in different versions: | Such as full-wave speed control or half-wave speed control | |
| 4.Optional outside: | Optional with distub device heat elimination outside | |
| 5.Actuator travel type: | Optional thumb wheel for limting actuator travel | |
| 6.Pillar terminal: | M3 | |
| 7.Plug-in terminals: | 2.8*0.6mm | |
| 8.Mechanical life: | 50000 cycles | |
| 9.Contact gap: | Upon users demand | |
| 10.Approval certicacate: | TUV CE CQC | |
| Installation: | 1.Screw terminals: | Screw terminals accept stranded wire encapsulated with terminal pins |
| 2.Push-in terminals: | Push-in terminals(1 and 2) accept stranded tin-dipped wire |
