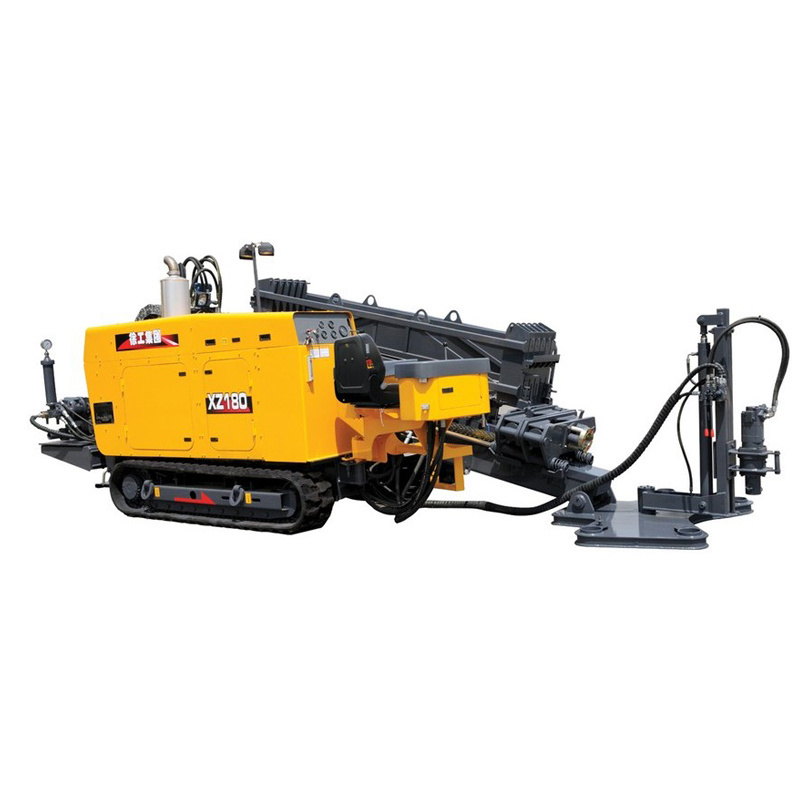

HDD top brand horizontal directional drilling machine XZ180 price for sale
HDD top brand horizontal directional drilling machine XZ180 price for sale
HDD top brand horizontal directional drilling machine XZ180 price for sale
HDD top brand horizontal directional drilling machine XZ180 price for sale
HDD top brand horizontal directional drilling machine XZ180 price for sale
HDD top brand horizontal directional drilling machine XZ180 price for sale
HDD top brand horizontal directional drilling machine XZ180 price for sale
HDD top brand horizontal directional drilling machine XZ180 price for sale

HDD top brand horizontal directional drilling machine XZ180 price for sale

FOB Reference Price: Get Latest Price
≥1 Sets
US $20000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Dimension(L*W*H):
6500*2270*2340
Weight:
8500kg
Certification:
ISO CE

Quick Details

Place of Origin:
Jiangsu, China
Brand Name:
RISEN
Voltage:
380v
Dimension(L*W*H):
6500*2270*2340
Weight:
8500kg
Certification:
ISO CE
Hot Product Links

HDD top brand horizontal directional drilling machine XZ180 price for sale

Product Description

1.The dual-speed carriage is operated with low speed when drilling and dragging back to ensure smooth construction ,and can speed up to slide with 2 times of speed to reduce the auxiliary time and improve the working efficiency when returning and disassembling the drilling rod with empty loads.

2.Rubber track: with minimum impact on the pedestrian way, lawn and landscape.

3.The floating clamp with patent technology can effectively prolong the service life of the pipe.

4.Rotatable Operator’s station, enlarge the field of the operators’ view and relieve their fatigue.

5.Automatic pipe loader can increase work efficiency, reduce work strength, reduce the number of construction staff.

6.The down and the up of the anchor is driven by hydraulics. The anchor is great in force and is easy and convenient to operate .

7.Engine cover is reasonable design ,it is simple and convenient when the engine and hydraulic system need to maintain and replace the filter .

Main Parameter

Project
Unit
Parameter
Engine
Type
-
Cummins 6BT5.9-C130
Rated power
(kW/r/min)
97/2200
Thrust-Pull
Max thrust-pull force
(kN)
180
thrust-pull speed
(m/min)
23
Rotation
Torque
(N·m)
6000
Max spindle speed
(r/min)
150
Mud pump
Max Flow rate
(L/min)
250
Max pressure
(MPa)
8
Pipe
(mm×m)
φ60×3
Loader Crane
Lifting weight
(t)
Loading capacity
(t•m)
Max inclination angle
(°)
22
Max backreamer diameter
(mm)
φ600
Weight
(t)
8.5
Dimension
(mm)
6500×2270×2340
Remark
-
Optional:Ⅰ.Mud antifreeze;Ⅱ.Mud Cleaning
