Quick Details
-
Weight:
-
6000 KG
-
Drilling Depth:
-
Max.1000m
-
Product name:
-
Truck Mounted Water
-
Application:
-
Drilling Wells
-
Drilling method:
-
DTH Percussive Drilling
-
Color:
-
Customer Required
-
Advantage:
-
Low Consumption High Efficiency
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
UNIQUE
-
Dimension(L*W*H):
-
6300x2300x2950mm
-
Weight:
-
6000 KG
-
Drilling Depth:
-
Max.1000m
-
Product name:
-
Truck Mounted Water
-
Application:
-
Drilling Wells
-
Drilling method:
-
DTH Percussive Drilling
-
Color:
-
Customer Required
-
Advantage:
-
Low Consumption High Efficiency
Product Description

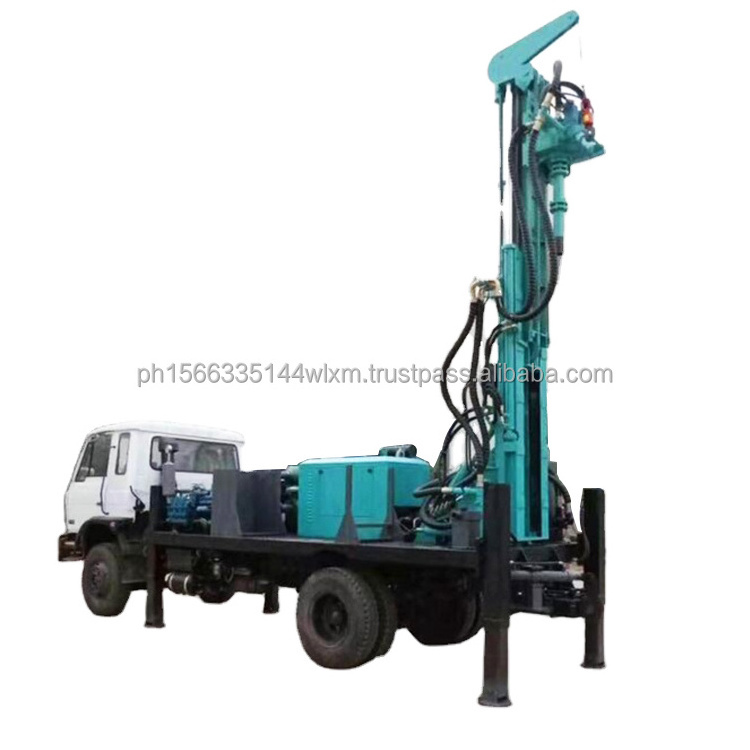

UNIQUE Group made
deep water well drilling rig
used newest model & advanced hydro technology, with high torque hydraulic motor rotation and large cylinder hydraulic cylinder advancement.
Mainly used for well drilling in resource exploration hydrology wells, civil usage water well, agriculture irrigation project, and can also be used for coal-mine gas exploitation, coalbed methane, shallow layer of shale gas.
Made from high quality materials, with fashion and compact design, that keeps our drilling rigs more efficiency and with low failure rate, more economic and durable, rigs have received the real market validation as the majority of our customer’s positive feedback.
Specification
|
Model
|
The weight
(T) |
The hole diameter
(mm) |
Drilling depth
(m) |
Equipped capacitor
(KW) |
Drill pipe diameter
(mm) |
Dimension(mm)
|
|
UY200
|
5.8
|
140-305
|
200
|
70
|
Φ76 Φ89
|
4000×1750×2450
|
|
UY300
|
7
|
140-325
|
300
|
85
|
Φ76 Φ89
|
4100×1950×2600
|
|
UY350
|
9
|
140-325
|
350
|
92
|
Φ89 Φ102
|
5900×2000×2850
|
|
UY400
|
10
|
140-350
|
400
|
92
|
Φ89 Φ102
|
5900×2100×2850
|
|
UY500
|
11.5
|
140-350
|
500
|
118
|
Φ102 Φ108 Φ114
|
6200×2200×2950
|
|
UY600
|
12
|
140-350
|
600
|
132
|
Φ102 Φ108 Φ114
|
6200×2200×2950
|
|
UY800
|
13
|
140-400
|
700
|
150
|
Φ102 Φ108 Φ114
|
6300×2300×2950
|
Installation Instructions
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
