Quick Details
-
Brand Name:
-
FCTEL
-
Use:
-
outdoor
-
Warranty Time:
-
3 years
-
Product name:
-

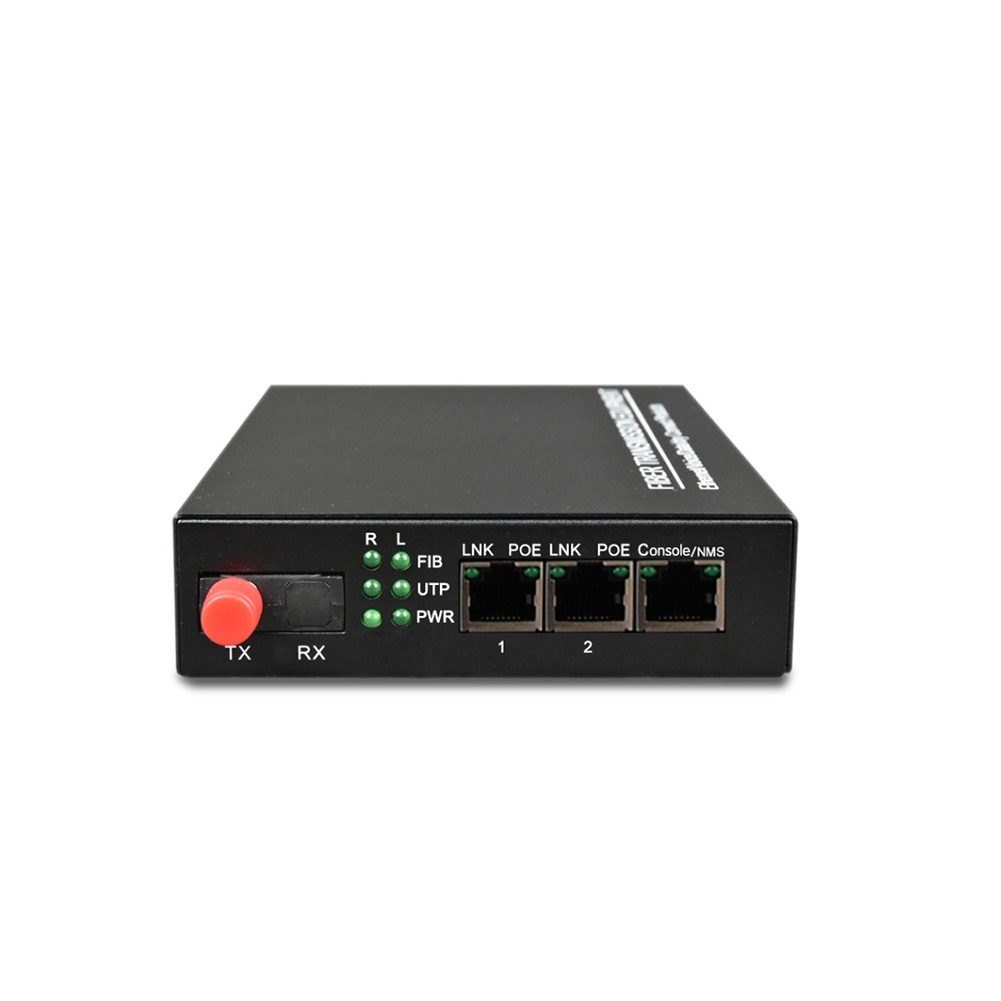

1-2*FE Industrial type POE Fiber Optical Transceiver Media Converter
-
Color:
-
black
-
Wavelength:
-
850nm/1310nm
-
Warranty:
-
3 Years
-
weight:
-
0.5kg
-
Power supply:
-
AC220V or DC-48V
-
Size:
-
140 * 110 * 30mm Desktop
-
Package:
-
Carton Box
-
Brand:
-
FCTEL
-
Physical Interface:
-
FC / SC / ST / LC
Quick Details
-
Type:
-
Fiber optic media converter
-
Model Number:
-
FCM-F1/2-AF/AT
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FCTEL
-
Use:
-
outdoor
-
Warranty Time:
-
3 years
-
Product name:
-
1-2*FE Industrial type POE Fiber Optical Transceiver Media Converter
-
Color:
-
black
-
Wavelength:
-
850nm/1310nm
-
Warranty:
-
3 Years
-
weight:
-
0.5kg
-
Power supply:
-
AC220V or DC-48V
-
Size:
-
140 * 110 * 30mm Desktop
-
Package:
-
Carton Box
-
Brand:
-
FCTEL
-
Physical Interface:
-
FC / SC / ST / LC
Product
Description
This series of products is Ethernet IEEE802.3 media converter, can achieve the conversion or extension of network transmission between 1-2*10/100Base-T twisted pair and 100Base-FX optical fiber media, mainly used in optical network long distance 20/40/60/80/120 km) transmission. The Ethernet port provides IEEE802.3af / at powering capability to power other devices such as wireless access points (APs) over Category 5 Ethernet lines or IP phones.
|
Ethernet optical interface
|
|
10/100M Ethernet interface
|
|
|
Working wavelength
|
1310nm, 1490nm, 1550nm
|
Protocol
|
Complies with IEEE 802.3, IEEE802.1Q (VLAN)
|
|
Rate
|
100M
|
Rate
|
10 / 100M adaptive, full / half duplex fully adaptive MAC
|
|
Protocol
|
Supports IEEE 802.3, IEEE 802.1Q (VLAN)
|
Address Table
|
You can learn 8K MAC address
|
|
MAC Address Table
|
You can learn 4096 MAC addresses
|
Physical interface
|
RJ45 seat, support Auto-MDIX
|
|
Physical Interface
|
FC / SC / ST / LC
|
Ethernet POE features
|
|
|
Environmental indicators
|
|
PoE standard
|
IEEE 802.3af / at
|
|
Operating temperature
|
-10 ℃ - +60 ℃
|
PoE Type
|
End Crossing Method
|
|
Storage temperature
|
-40 ℃ - +85 ℃
|
PoE Port Features
|
Port output power 15.4W / 25.5W
|
|
Humidity
|
0% -95% (non-condensing)
|
PoE transmission core
|
1/2 +, 3/6-pair (optional 4/5+, 7/8-pair)
|
|
MTBF
|
> 100,000 hours
|
|
|
Our Company
Certifications
Packing&Delivery
Order Information
|
Model
|
Description
|
|
FCM-F1/2-AF/AT
|
1-2*FE POE fiber optic transceivers that support IEEE802.3af or IEEE802.3at full power supply
|
