Custom Double Acting Marine Hydraulic Cylinder,Hydraulic Cylinders with chrome plating piston rod

Custom Double Acting Marine Hydraulic Cylinder,Hydraulic Cylinders with chrome plating piston rod

FOB Reference Price: Get Latest Price

≥1 Pieces

US $151

≥10 Pieces

US $132

≥50 Pieces

US $110

≥100 Pieces

US $70

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: EAST AI

Tube ID:: 40 to 1000 mm

Working Pressure:: max 70MPa

Seals:: Hallite, Parker, Merkel, etc.

Painting:: anti rust painting

Certificate:: ISO9001:2000

Quick Details

Weight (KG):: 40

Marketing Type:: Hot Product 2021

Place of Origin:: Jiangsu, China

Brand Name:: EAST AI

Tube ID:: 40 to 1000 mm

Working Pressure:: max 70MPa

Seals:: Hallite, Parker, Merkel, etc.

Painting:: anti rust painting

Certificate:: ISO9001:2000

自己写标题
Application	Engineering machinery, mine, shipping, metallurgy, water conservancy, offshore, agriculture, etc.
Stroke	20mm to 16000mm
Bore	40mm to 1500mm
Shaft	12mm to 1000mm
Work pressure	16Mpa to 70Mpa (2250 PSI – 10150 PSI)
Seal	Parker, Merkel, NOK, Hallite,etc.
Paint	Red, Grey, Yellow, Black, etc.
Material	St52, CK45, 4140, Duplex2205, Stainless Steel 304/316, etc.
Certificate	ABS, Lloyds, SGS, etc.
Package	Bubble-wrap packing, then in wooden case.
Color	choose the color according to customer requirement
Core components	Bearing，Pressure vessel，Pump
Is it a standard part？	Nonstandard
Structure	Piston Type, Plunger Type, Telescopic Type,
Power	Hydraulic & Pneumatic
Cylinder material	ST52, CK45, 4140, Duplex 2205, Stainless Steel 304/316, etc.
Brand	EAST AI
Maximum stroke	max 16m
Shaft diameter	6mm to 500mm
Model	Double Acting or Single Acting
Price	100-1000/piece

Product Overviews

We can design and produce most kind hydraulic cylinder.Single acting,double acting hydraulic cylinder.Big size and little size hydraulic cylinder.3-6 stages Telescopic hydraulic cylinder. (1)Construction Machinery cylinders for: loaders, excavator, forklift, bulldozer, dumper, roller, crane ,pump truck,garbage truck,garbage compactor and boat used hydraulic cylinder etc. (2)Metallurgical Machinery cylinders for: decelerator, tile press etc. (3)Mining Machinery cylinders for: crasher, coal cutter shield tunneling machine and dame gate etc. (4)Agricultural & forestry machinery cylinders for: soil preparation machine, harvester, weeder etc.

Our company supply following serial spare parts: 1. Travel Device (motor, gear box) & Its Parts. 2. Swing Device (motor, gear box) & Its Parts. 3. Hydraulic Pump Assy & Its Spare Parts. 4. Swing bearing /slewing ring gear 5. Cylinders, bucket /arm/ boom cylinders 6. Under carriage parts: steel track and pads, rubber track and pads, track link assy, Track roller, Carrier roller, Sprocket, Idler, track adjuster, etc. 7. cabin assy with cab glass, cab door, cab lock. 8. other related products.

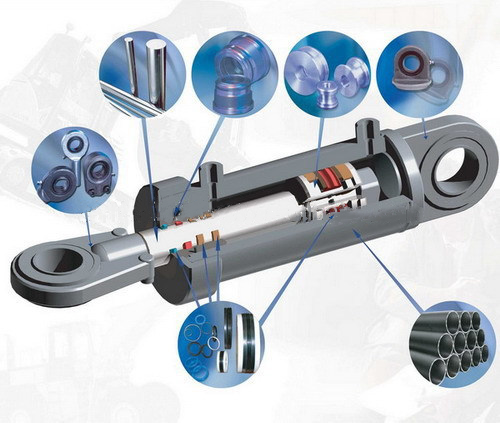

Production Flow Processing and inspection:

1.Cylinder Tube According to the work pressure,work temperature,work situation and other special requirements,different cylinder tube will be choosed. 1.1 Cylinder Tube:cold drawn precision seamless steel tube,hot rolled seamless steel tube,forged tube. 1.2 Tube Material: SAE1020(20#) , SAE1045(45#) ,16Mn(Q345B),27SiMn,etc. 1.3 Surface Roughness:R0.16-0.32μm 1.4 Inside Chromating:If necessary,inside tube will be chromated. 2.Piston Rod 2.1 Rod Material:35#,SAE1045(45#),35CrMo,42CrMo4,etc. 2.1 Technical Treatment: Quenched and tempered.1.5-1mm,or 1.03mm per millimetre. 3.Seal Kits According to customers' requirements and work condition,we will choose suitable seal kits,including:Hallite,NOK,SKF,Parker,Merker,Trelleborg,China made,Taiwan made.We will supply you suitable seal kits to ensure hydraulic cylinders a long lifetime,easy maintenance and simple repairing. 4.Inspection and Testing 4.1 We have professional quality control department,every step from raw material to finished product is in the same factory,each procedure will be tested by professional inspector. 4.2 Before hydraulic cylinder is assemblied , every spare parts would be measured and cleaned .After hydraulic cylinder is assemblied , pressure test would be carried out one by one.We ensure the testing pressure is 30%-50% higher than rated pressure in almost one hour's test.Each hydraulic cylinder must be tested without any leakage.

Packaging & Shipping Minimum Order Quantity: 1PC Packing: in case Delivery time: within 5-7 working days after payment received Delivery terms: 1. by sea; 2. by air; 3. by express to door, Payment: T/T, Western union, Trade Assurance,

Application

1.Use thickened steel, long service life

2. Smooth surface and good sealing

3.H igh color fastness

Products are used in highway, railway, bridge, subway, construction, shipbuilding, mining, foundation settlement test, static pressure pile, pile foundation detection and other industries

◆ Our History

Founded in 2006, specialized in producing honed tube and chrome rod used for hydraulic and pneumatic cylinder. We also produce customized hydraulic cylinder as per drawing.

◆ Our Factory
Located in Luqu Industry Park, Wuxi city

◆ Our Product
Honed tube, skived roller burnished tube, chrome plated rod, hollow piston rod, chrome plated honed pipe, hydraulic cylinder, hydraulic power unit. Pneumatic cylinder tube.

◆ Product Application
Excavator, Forklift, All kinds hydraulic cylinders and pneumatic cylinders.

◆ Our Certificate
ISO9001:2008, CE

◆ Production Equipment
CNC, Honing machine, cold drawn machine, skiving roller burnishing machine, grinding machine, polishing machine, automatic straightening machine, heat treatment furnace, etc.

◆ Production Market
Vietnam, Thailand, Indonesia, India, Brazil, Peru, Columbia, Argentina, Russia, UK, USA, South Africa, etc

◆ Our Service
Machining service, Third party inspection service

Our Services

East Ai has a powerful team which has inddependent design development of pneumatic components from product design to peoduction operations

In case the product does not meet your expectations, we offering a sampling service ,giving you the opportunity to properly evaluate products before you buy.

In order to meet higher requirements from customers around the world ,we import premiere machines from developed countries

East AI has esrablished strict quality management system , from selection of

raw material to components testing

If you want your products to get certified (CE/BV/ISO/RoHS/SGS etc). please feel free to contact us for detailed discussion.

Packing is one part of our job. we provide state of the art packing .to deliver your goods safely and securely.

Packing & Shipping

Packing Details :Inner brown craft paper/outside carton/wooden pallets.
Delivery Details : 20-25 days after received the payment.

FAQ

Q1: Are You Manufacture or Trade Company?

A1: We are manufacture,we have 10 years experience for supply Metal material and products in domestic.

Q2: How can we guarantee quality?
A2: Always a pre-production sample before mass production;Always final Inspection before shipment;

Q3: What is your terms of payment ?
A3:

1.T/T: 30% deposit in advance, the balance 70% paid before shipment
2.30% down payment, the balance 70% paid against L/C at sight
3.Upon negotiation

Q4: Can you provide Certificates for aluminum materials ?
A4:Yes,we can supply MTC-Material Test Certificate.

Q5: Can you provide sample?
A5: Yes, we can provide you sample, but you need to pay for the sample and freight firstly. We will return the sample fee after you make an order.
