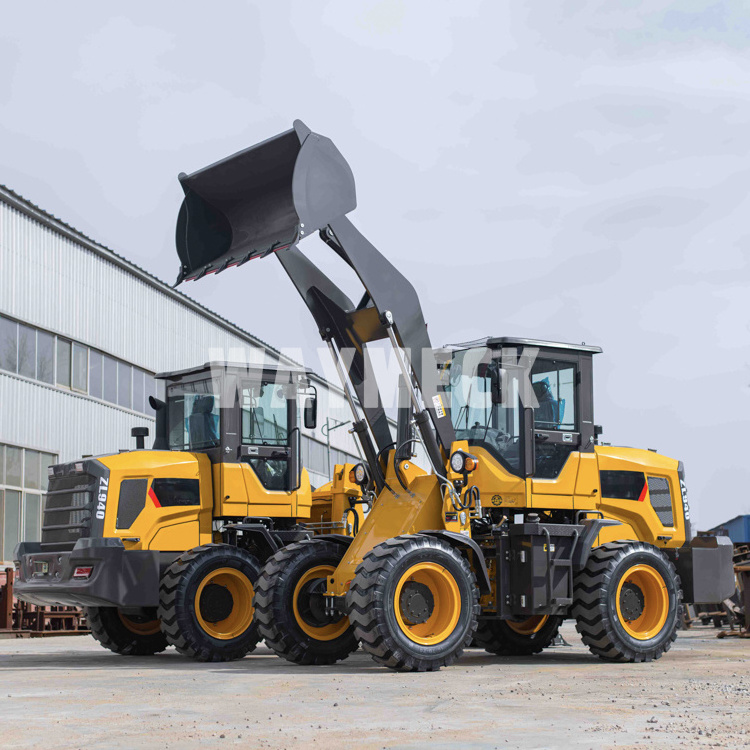

2 ton front end grab bucket mini diesel wheel loader micro articulated loader for sale

2 ton front end grab bucket mini diesel wheel loader micro articulated loader for sale

FOB Reference Price: Get Latest Price

≥1 Pieces

US $3000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shandong, China

Machine Weight:: 5500 kg

Bucket capacity:: 1.4cbm

Production:: AGRIMAC 940

Model:: ZL940

ENGINE:: YUNNEI YN38GBZ

After-sales Service Provided:: 1 Year

Optional-1:: Engine- Yuchai / Xinchai / Cummins

Optional-2:: Tyre- Chaoyang / Qianjin

Optional-3:: Accesssories

Optional-4:: Quick-hitch (coupler)

Optional-5:: Air conditioner

Optional-6:: Hydraulic Joystick

Quick Details

Engine Brand:: YUNNEI

Power:: 76kw

Brand Name:: WAYMECK

Place of Origin:: Shandong, China

Machine Weight:: 5500 kg

Bucket capacity:: 1.4cbm

Production:: AGRIMAC 940

Model:: ZL940

ENGINE:: YUNNEI YN38GBZ

After-sales Service Provided:: 1 Year

Optional-1:: Engine- Yuchai / Xinchai / Cummins

Optional-2:: Tyre- Chaoyang / Qianjin

Optional-3:: Accesssories

Optional-4:: Quick-hitch (coupler)

Optional-5:: Air conditioner

Optional-6:: Hydraulic Joystick

Product Overview

Specification

SPECIFICATIONS ZL940
ENGINE
Engine Model	YUNNEI YN38GBZ
Engine Net Power	76kw at 2.400 rpm	102hp
Maximum torque/engine speed	280 Nm/1.800 rpm
No. of cylinders	4
Displacement	3.8 L	232 in³
SERVICE REFILL CAPACITIES
Fuel Tank	80 L	21 gal
Hydraulic tank	80 L	21 gal
HYDRAULIC SYSTEM
Working pressure (max)	16mpa	160bar
No. of boom / bucket cylinders	2 / 1
Hydraulic control lever	Joystick Multifunctional lever ( Pilot optional )
WEIGHTS
Operating Weight	5400 kg	11904 lb
BUCKET CAPACITIES
Bucket Range Standard Bucket	1.4 m3	1.8 yd3
STEERING SYSTEM
System Form	Articulated power steering
Number of steering hydraulic cylinders	2
Steering type	Hydraulic assist
BRAKE SYSTEM
Operating brakes	Hydraulic-air disc brake, caliper on both axle.
Parking brake	Mechanical drum brake on gearbox.
CHASSIS AND TYRES
Type of driving	Full-time four-wheel drive
Front axle	Fixed rigid connect
Rear axle	Center-pin support, semi-floating, Oscillating ±11 degrees
Tires (standard)	Wave pattern 16/70-24
TRANSMISSION
Drive system	Torque converter hydraulic transmission
Hydraulic pump	Fixed-displacement gear pump, open system
Max. travel speeds (forwards/backwards)	30 km/h
Gears	4 Front 4 Rear
DIMENSIONS
Overall length	6500 mm	21'3.8"
Maximum width	2350 mm	7'8"
Overall height	3000 mm	9'10"
Ground Clearance	350 mm	1'1.6"
Wheelbase	2500 mm	8'2.5"
Wheel track	1580 mm	5'2.1"
Dump height at 45°	3500 mm	3'11"

Details Images
