Quick Details
-
Weight (KG):
-
2000 kg
-
Application:
-
Building Construction
-
Material:
-
Steel
-
Name:
-
Fully self-propelled scissor lift platform
-
Color:
-
Red
-
Voltage:
-
24v/48v
-
Lift height:
-
3m-16m
-
Certificate:
-
ISO9001/CE
-
Lift Speed:
-
4-6m/min
-
Work Height:
-
6-14m
-
Load capacity:
-
230-550KG
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
QIYUN
-
Weight (KG):
-
2000 kg
-
Application:
-
Building Construction
-
Material:
-
Steel
-
Name:
-
Fully self-propelled scissor lift platform
-
Color:
-
Red
-
Voltage:
-
24v/48v
-
Lift height:
-
3m-16m
-
Certificate:
-
ISO9001/CE
-
Lift Speed:
-
4-6m/min
-
Work Height:
-
6-14m
-
Load capacity:
-
230-550KG

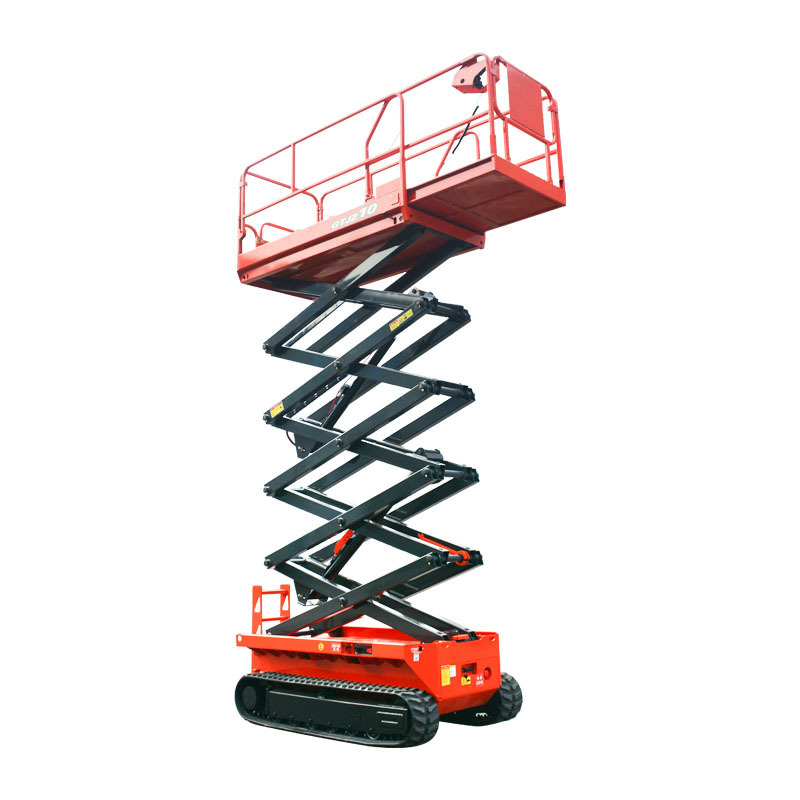

Qiyun Kinglift window cleaning lift self propelled scissor lift scissor lift with sliding platform
The self-propelled Track Crawler Scissor Lifts are battery power drive, 24v or 48v optional. Our tracked scissor lifts are construction oriented, and can increase operator productivity on demanding outdoor worksites, having advantages such as strong capacity, convenient operation, safety, reliability and good quality.
Our electric powered scissor Lifts are energy-saving and environmentally-friendly with less noise and no emission. With the maximum working height of 6m to 12m, it is suitable for rough terrain outdoor working environment. Crawler self propelled scissor lift can work without being limited by the road conditions. This kind of scissor lift is perfectly suitable for bad road conditions, such as muddy, snowy, sandy road. With stable and secure structure, it is widely used for wild jungle, prairie, field and so on.
|
Model |
Table size ( mm ) |
Load ( kg ) |
Lifting height ( m ) |
Dimensiones ( mm )
|
Extended table size ( mm ) |
Weight ( kg ) |
|
GTJZ04 |
2260*810 |
240 |
4 |
1515*1097*1660 |
600 |
995 |
|
GTJZ06 |
2260*1130 |
240 |
6 |
1915*1210*2140 |
600 |
1855 |
|
GTJZ08 |
2260*810 |
320 |
8 |
2705*1325*2500 |
600 |
3000 |
|
GTJZ10 |
2260*1130 |
300 |
10 |
2515*1390*2041 |
600 |
3200 |
|
GTJZ12 |
2260*1130 |
300 |
12 |
2855*1390*2172 |
600 |
3250 |
