Quick Details
-
Brand Name:
-
HiOSO
-
Use:
-
FTTH
-
Item Name:
-
fiber switch
-
Ports:
-
16 1000M SFP + 8 Combo Uplink
-
Transmisson rate:
-
100Mbps
-
MAC address:
-
16K
-
Power supply:
-
AC100-240v
-
Operating temperature:
-
-10-60℃
-
Storage temperature:
-
-40-80℃
-
Black casing:
-
metal
-
Dimension:
-
44mm (H)*440mm(W)*210mm (D)
-
Certification:
-
RoHS, ce
Quick Details
-
Type:
-
FTTH
-
Model Number:
-
FOWAY5200-24FS-8CM-BP
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HiOSO
-
Use:
-
FTTH
-
Item Name:
-
fiber switch
-
Ports:
-
16 1000M SFP + 8 Combo Uplink
-
Transmisson rate:
-
100Mbps
-
MAC address:
-
16K
-
Power supply:
-
AC100-240v
-
Operating temperature:
-
-10-60℃
-
Storage temperature:
-
-40-80℃
-
Black casing:
-
metal
-
Dimension:
-
44mm (H)*440mm(W)*210mm (D)
-
Certification:
-
RoHS, ce
Product Description

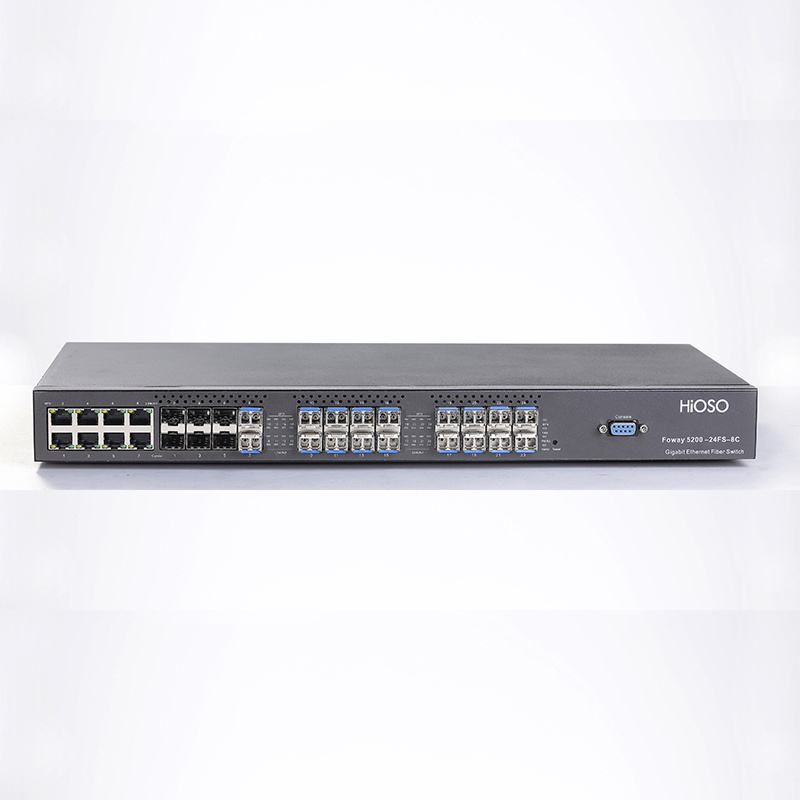

FOWAY5200-24FS-8C 16 1000M SFP + 8 Combo Uplink Fiber Switch
Character
✔Support 16 100/1000M SFP (or SFP-1000BaseT RJ45 ) access and 8 Gigabit Combo port (100M/1000M SFP optional, or 10/100/1000M RJ45 port)
✔
Support the default 100M、1000M SFP and the SFP-1000BaseT RJ45 hot plug
✔
Support full rate, full-duplex non-blocking forwarding at each port
✔
Support WEB ,and SNMP management (optional):VLAN,STP/RSTP,Trunk port aggregation, IGMP,port Mirroring,port isolation,broadcast control,loop detection,QinQ, etc
✔
Support DHCP,PPPoE,ACL,LLDP
✔
Support 16K MAC learning, 6Mbit storage and forward cache space,128G back plane bandwidth,10KByte Large frame forwarding
✔
All optic ports, strengthen the an-interference ability
✔
Support the AC dual redundant power supply hot backup and DC12V/5A spare battery power
✔
Standard 1U rack ,internal double cooling fan,better for heat dissipation,work stable .
|
Technical Specification
|
Tomato&Potato
|
|
|
Parameter
|
Specification
|
|
|
|
IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit
Ethernet, IEEE802.1d Spanning Tree Protocol,IEE802.1w Rapid STP,IEE802.1s Multiples STP,IEE802.1q Vlan,IEE802.1q Qos,IEE802.3ad Trunk,IEE802.3X Flow Control |
|
|
Wavelength
|
SFP:850nm/1310nm/1490nm/1550nm
|
|
|
|
100M SFP Multi-mode: 2km (fiber size 62.5/125μm or 50/125μm)
Single-mode: 20/40/60/80/100/120Km Single-fiber single-mode: 25/40/60/80/100/120Km 1000M SFP Multi-mode: 220m (fiber size 62.5/125μm)/550m(fiber size 50/125 μm) Single-mode: 10/20/40/60/80/100/120Km Single-fiber single-mode:10/20/40/60/80/100/120Km CAT5: 100m |
|
|
|
16 Gigabit SFP fiber ports: 1000Mbps,1000M SFP / SFP-1000BaseT
8 Gigabit Combo port:: 1 Gbps, 100M/1000M SFP&10/100/1000M RJ45 1 USB console port |
|
|
MAC
|
16K
|
|
|
Buffer memory space
|
6Mbit
|
|
|
Bit error rate
|
<1/1000000000
|
|
|
MTBF
|
100000 hours
|
|
|
Power
|
AC 110-240V
|
|
|
Power consumption
|
30W
|
|
|
Working temperature
|
-10~60℃
|
|
|
Storage temperature
|
-40~80℃
|
|
|
Humidity
|
5%~90% non-condensing
|
|
|
Dimension
|
44mm (H)×440mm(W)×210mm (D)
|
|
Product Usage
Related Products
Packing&Shipping
Company Introduction
HiOSO Technology Co., Ltd. was founded in 2002, being dedicated to the research, production and sale of optical communication network products based on FTTH and FTTD. Our main products include EPON systems, fiber optic media converters, CWDM system equipment, digital video optical transceivers, converter racks, single/multi-mode converters, PDH and fiber modems.
Our Services & Strength
We are manufacturer, support OEM & sample service.
Products are of good quality and Price is competitive.
